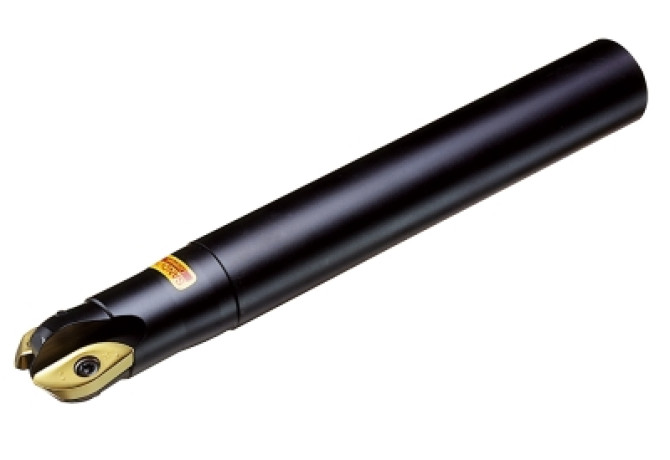

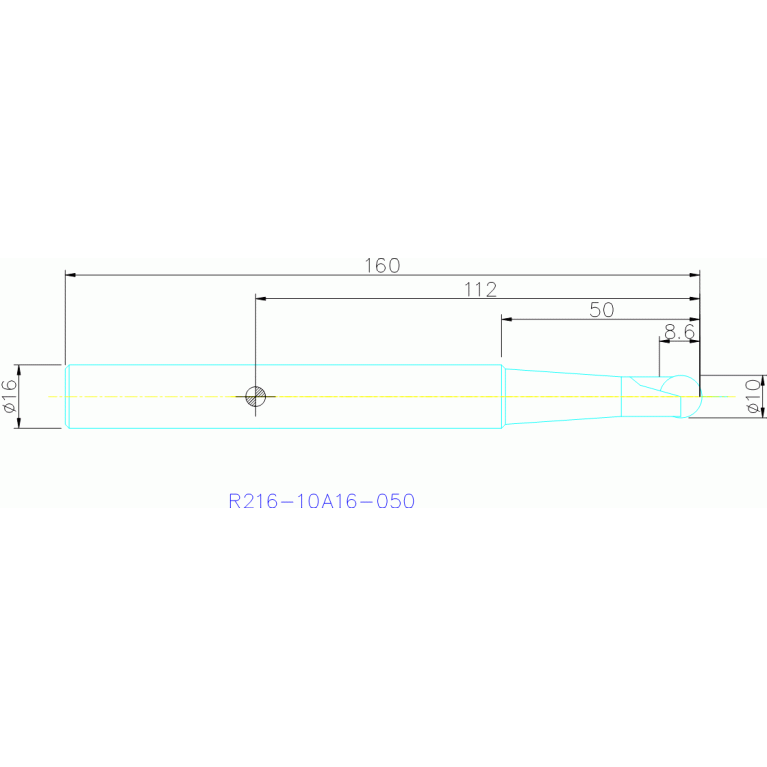

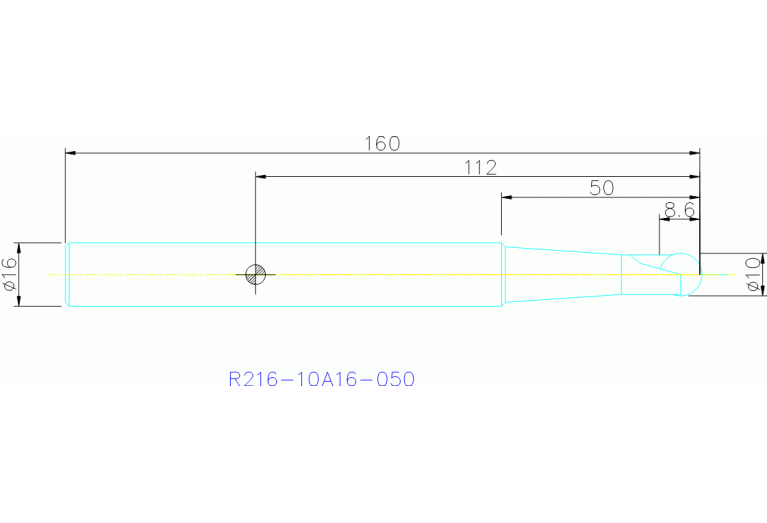

R216-10A16-050

R216-10A16-050

SV - Sandvik-Coromant
Артикул: 5743658
В наличии
0 ₽
В корзину
Характеристики
A2A (Clearance angle major Pos. A)
9 Degree
A2B (Clearance angle major Pos. B)
9 Degree
APMX (Depth of cut maximum)
8.6 mm
BD (Body diameter)
9.2 mm
BI (Block index)
1
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
1.7 mm
C1B (Insert thickness Pos. B)
1.7 mm
CCONMS (Connection count machine side)
2
CNSC (Coolant entry style code)
0 - Without coolant entry
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DC (Cutting diameter)
10 mm
DCP (Data chip provision)
0 - Without data chip
DCX (Cutting diameter maximum)
10 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
ZYL01600105
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL01G1600h$08
KAPR (Tool cutting edge angle)
90 Degree
LF (Functional length)
160 mm
LOC-02 (BI Block index)
2
LOC-02 (MIID Master insert identification)
R216-1002
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-03 ISO
ZYL01G1600h$08
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
0 Metric
LOC-03 (CZCMS Connection size code)
0160
LOC-03 (DCONMS Diameter)
16 mm
LOC-03 (TCDCONCDMS Connection tolerance class coded)
h$08
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01600105
LPR (Protruding length)
112 mm
LS (Shank length)
48 mm
LU (Usable length)
22.1 mm
MIID (Master insert identification)
R216-1002
MILTTY (Mill tool type ISO)
L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°
OAL (Overall length)
160 mm
PRFRAD (Profile radius)
5 mm
RPMX (Rotational speed maximum)
15900 1/min
TCDCONMS (ISO-tolerance class shank diameter)
h8
Working process
FEC - Square shoulder milling,FFO - Die milling,FPR - Profile milling
WT (Weight of item)
0.23 kg
ZEFF (Face effective cutting edge count)
2
ZEFP (Peripheral effective cutting edge count)
2
