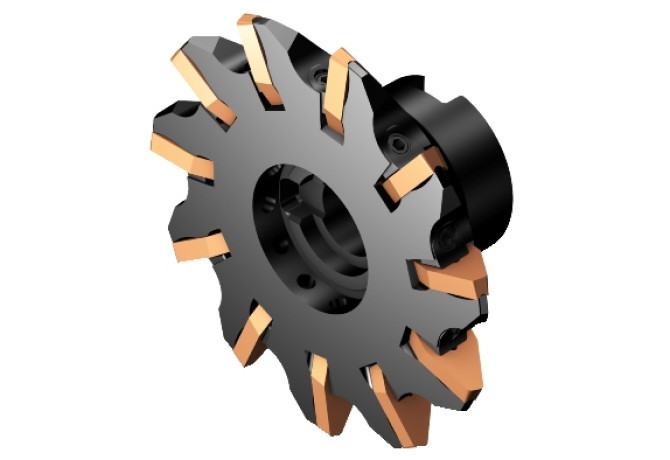

Главная Инструменты 308-08 - Full-side angular slot milling cutter 162-120Q27-60

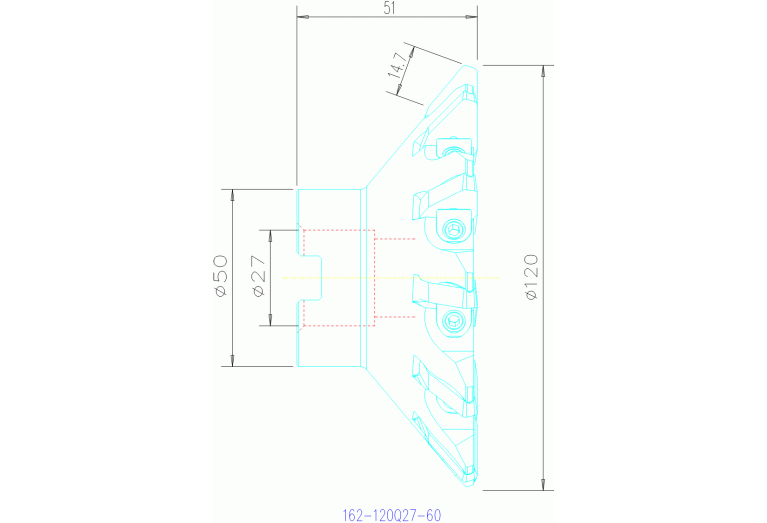

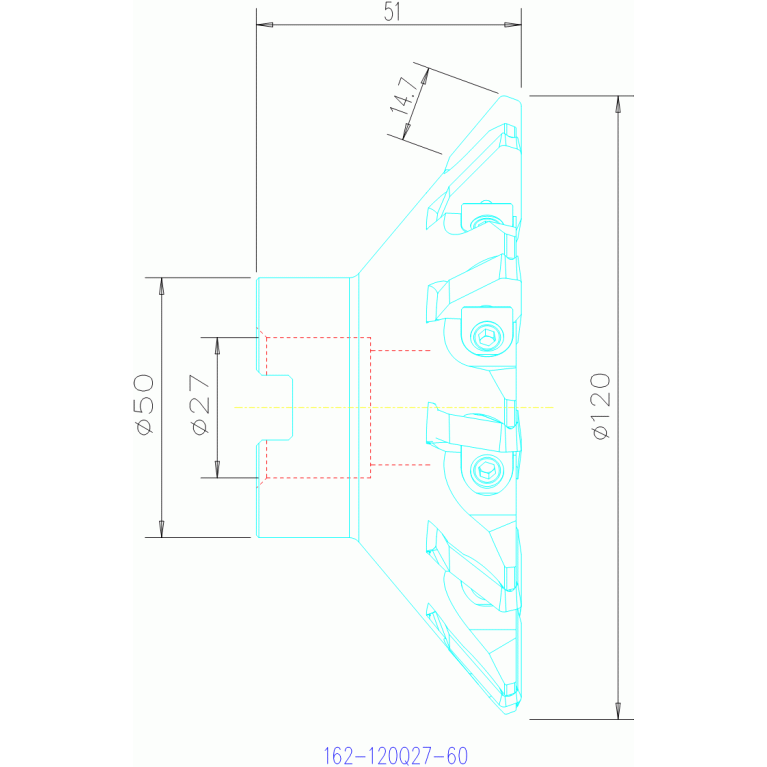

162-120Q27-60

Артикул: 6565254

В наличии

0 ₽

В корзину

Описание

Характеристики

A2A (Clearance angle major Pos. A)

7 Degree

B2A (Insert width Pos. A)

14.67 mm

BD (Body diameter)

92 mm

BI (Block index)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

5.5 mm

CCONMS (Connection count machine side)

CDX (Cutting depth maximum)

14.7 mm

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DC (Cutting diameter)

120 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

120 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

FDA02702200

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

FDA22G2700$$$$

KAPR (Tool cutting edge angle)

70 Degree

LOC-01 ISO

SV$$NH1506$$*R**$$$

LOC-01 (BI Block index)

LOC-01 (MIID Master insert identification)

176M60-N150612E-PM

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

SV-NH1506*0

LOC-03 ISO

FDA22G2700$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

0 Hole in machine direction or shaft in workpiece direction

LOC-03 (CCTMS Connection code type)

FDA Milling arbor mounting

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0270

LOC-03 (DCONMS Diameter)

27 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02702200

MIID (Master insert identification)

176M60-N150612E-PM

OAL (Overall length)

51 mm

RPMX (Rotational speed maximum)

2000 1/min

Working process

FFO - Die milling,FPR - Profile milling

WT (Weight of item)

1.8 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
