Главная Инструменты 308-00 - Milling cutter arbor for indexable inserts unspecified R331.52-203R38MM

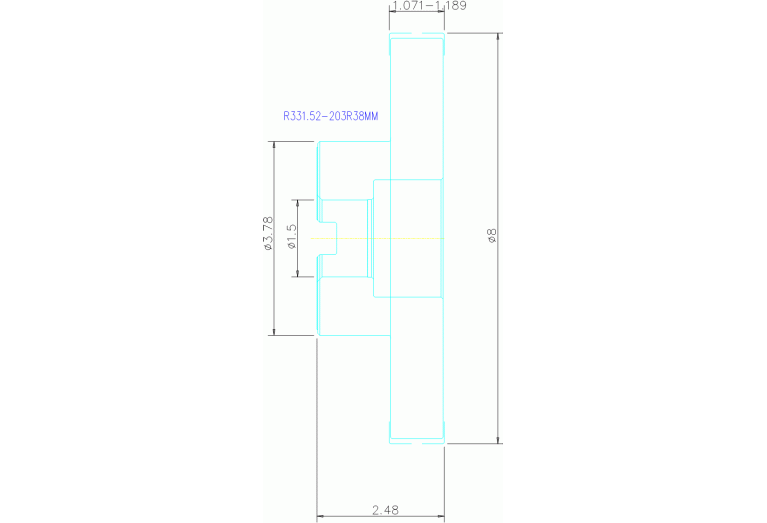

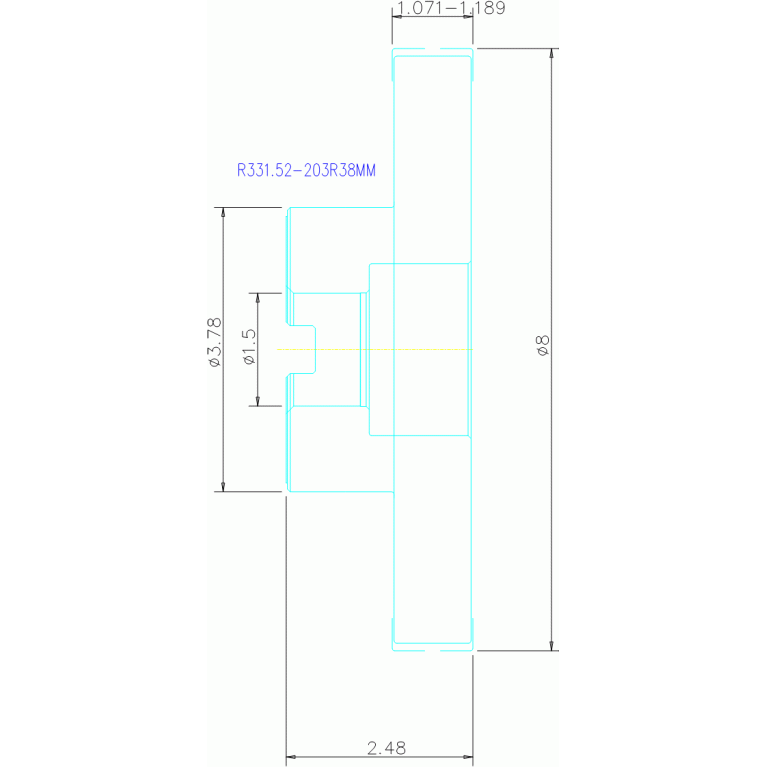

R331.52-203R38MM

Артикул: 5744981

В наличии

0 ₽

В корзину

Описание

Характеристики

BI (Block index)

BMC (Body material code)

S - Solid steel

CCONMS (Connection count machine side)

CDX (Cutting depth maximum)

52.502 mm

CNSC (Coolant entry style code)

0 - Without coolant entry

CWX (Cutting width maximum)

30.201 mm

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DC (Cutting diameter)

203.2 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

203.2 mm

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

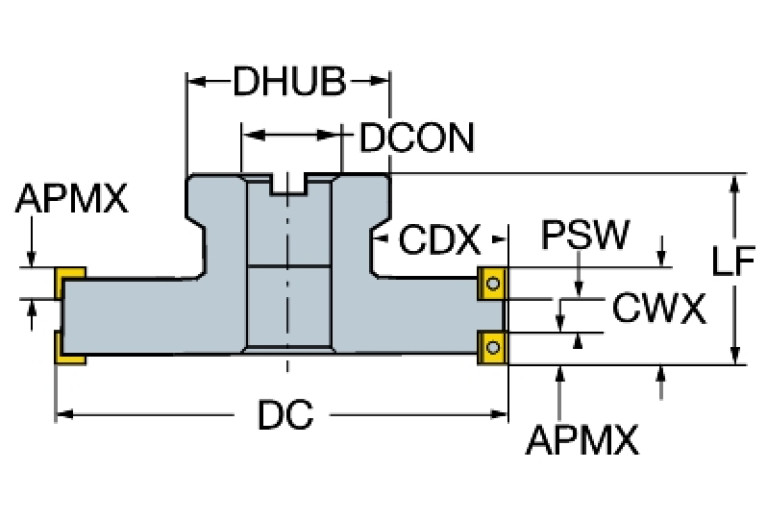

DHUB (Hub diameter)

96.012 mm

DIN

FDA15002220

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

FDA22S1500$$$$

KAPR (Tool cutting edge angle)

90 Degree

LOC-01 ISO

SV$$MW11$$023L*$$16

LOC-01 (BI Block index)

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

SV-MW110000

LOC-02 ISO

SV$$MW11$$023R*$$16

LOC-02 (BI Block index)

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-03 ISO

FDA22S1500$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

0 Hole in machine direction or shaft in workpiece direction

LOC-03 (CCTMS Connection code type)

FDA Milling arbor mounting

LOC-03 (CCUMS Connection code unit base)

2 Inch

LOC-03 (CZCMS Connection size code)

1500

LOC-03 (DCONMS Diameter)

38.1 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA15002220

OAL (Overall length)

62.992 mm

RMPX (Ramping angle maximum)

0 Degree

RPMX (Rotational speed maximum)

9600 1/min

Working process

FEC - Square shoulder milling,FPL - Face milling,FTR - Slot cutting

WT (Weight of item)

8 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
