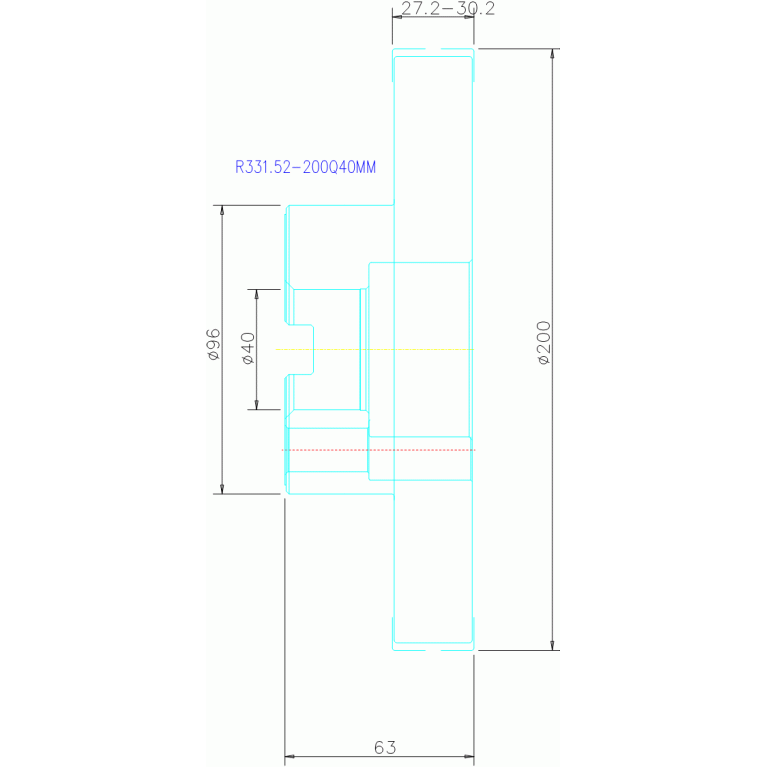

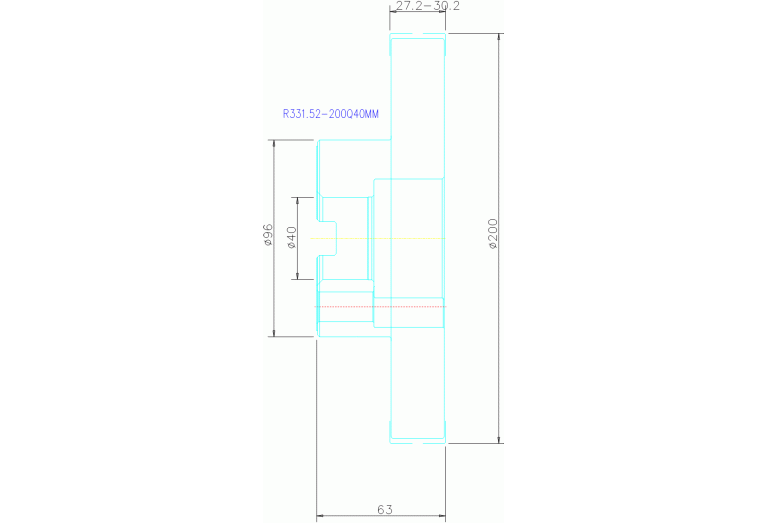

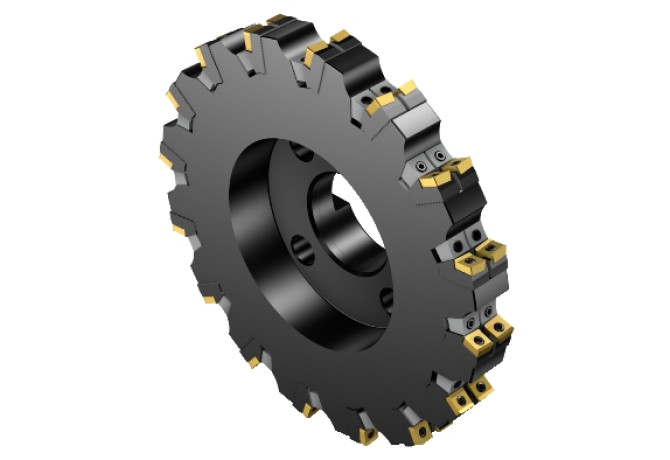

R331.52-200Q40MM
R331.52-200Q40MM
Артикул:
5745036
В наличии
0 ₽
Характеристики
BI (Block index)
1
BMC (Body material code)
S - Solid steel
CCONMS (Connection count machine side)
2
CDX (Cutting depth maximum)
51 mm
CNSC (Coolant entry style code)
0 - Without coolant entry
CWX (Cutting width maximum)
30.2 mm
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DC (Cutting diameter)
200 mm
DCP (Data chip provision)
0 - Without data chip
DCX (Cutting diameter maximum)
200 mm
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DHUB (Hub diameter)
96 mm
DIN
SPK04000103
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
SPK01G4000$$$$
KAPR (Tool cutting edge angle)
90 Degree
LOC-01 ISO
SV$$MW11$$023L*$$16
LOC-01 (BI Block index)
1
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
SV-MW110000
LOC-02 ISO
SV$$MW11$$023R*$$16
LOC-02 (BI Block index)
2
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-03 ISO
SPK01G4000$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
3 Hole pattern (through bore) machine side or hole pattern (threaded hole) machine side or
LOC-03 (CCTMS Connection code type)
SPK Spindle nose mounting
LOC-03 (CCUMS Connection code unit base)
0 Metric
LOC-03 (CZCMS Connection size code)
0400
LOC-03 (DCONMS Diameter)
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SPK04000103
OAL (Overall length)
63 mm
RMPX (Ramping angle maximum)
0 Degree
RPMX (Rotational speed maximum)
9600 1/min
Working process
FEC - Square shoulder milling,FPL - Face milling,FTR - Slot cutting
WT (Weight of item)
8 kg
ZEFF (Face effective cutting edge count)
12
ZEFP (Peripheral effective cutting edge count)
12
