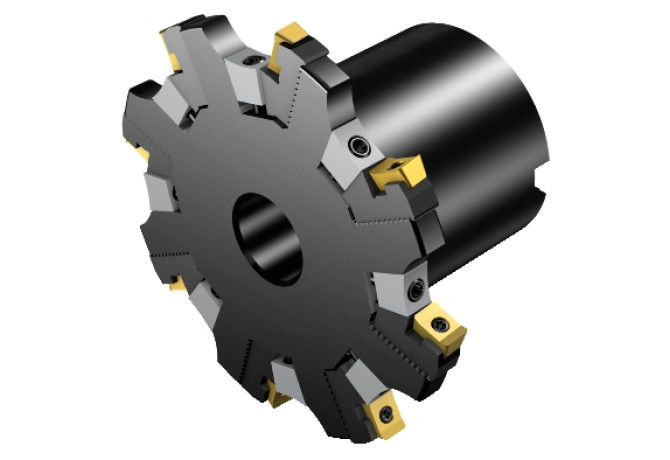

Главная Инструменты 308-06 - Half-side slot milling cutter R331.52-200Q40MML

R331.52-200Q40MML

Артикул: 5745039

В наличии

0 ₽

В корзину

Описание

Характеристики

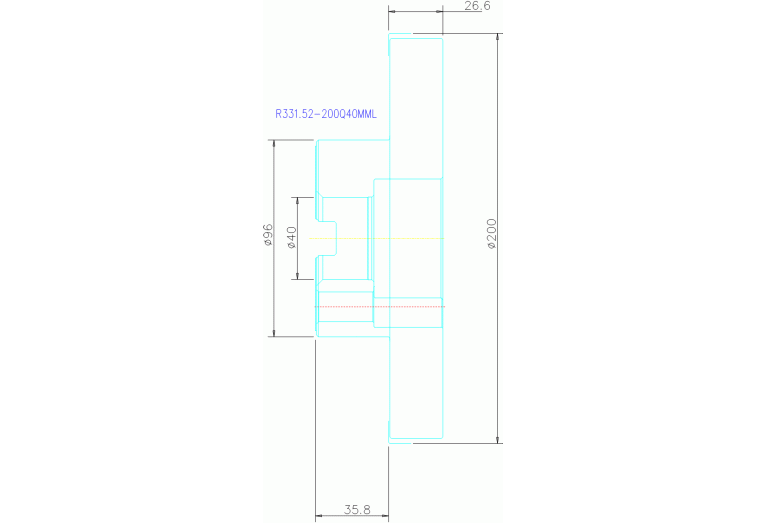

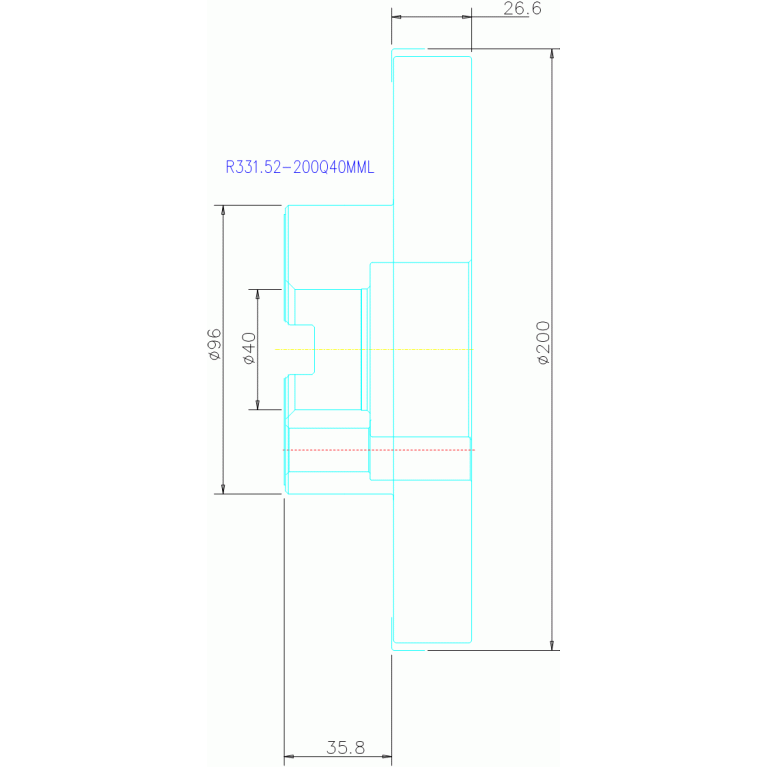

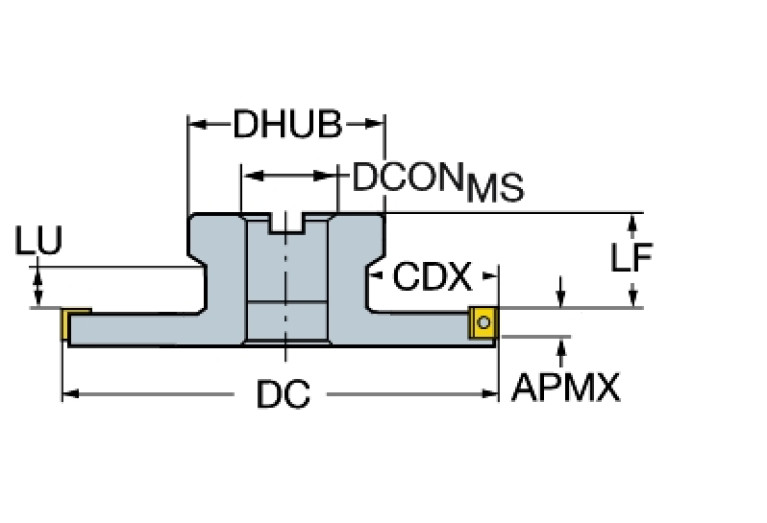

BD (Body diameter)

195 mm

BI (Block index)

BMC (Body material code)

S - Solid steel

CCONMS (Connection count machine side)

CDX (Cutting depth maximum)

51 mm

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DC (Cutting diameter)

200 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DHUB (Hub diameter)

96 mm

DIN

SPK04000103

F23 (Number of mounting layers)

F24 (Cutting item count per mounting layer)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

SPK01G4000$$$$

LOC-01 ISO

SV$$MW11$$023R*$$16

LOC-01 (BI Block index)

LOC-01 (MIID Master insert identification)

N331.1A-11

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

SV-MW110000

LOC-03 ISO

SPK01G4000$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

3 Hole pattern (through bore) machine side or hole pattern (threaded hole) machine side or

LOC-03 (CCTMS Connection code type)

SPK Spindle nose mounting

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0400

LOC-03 (DCONMS Diameter)

40 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SPK04000103

MIID (Master insert identification)

N331.1A-11

MILTTY (Mill tool type ISO)

E - Disc mill - one side cutting

OAL (Overall length)

62 mm

RPMX (Rotational speed maximum)

9600 1/min

Working process

FPL - Face milling

WT (Weight of item)

10.12 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
