Главная Инструменты 308-06 - Half-side slot milling cutter L331.52-127T38KM

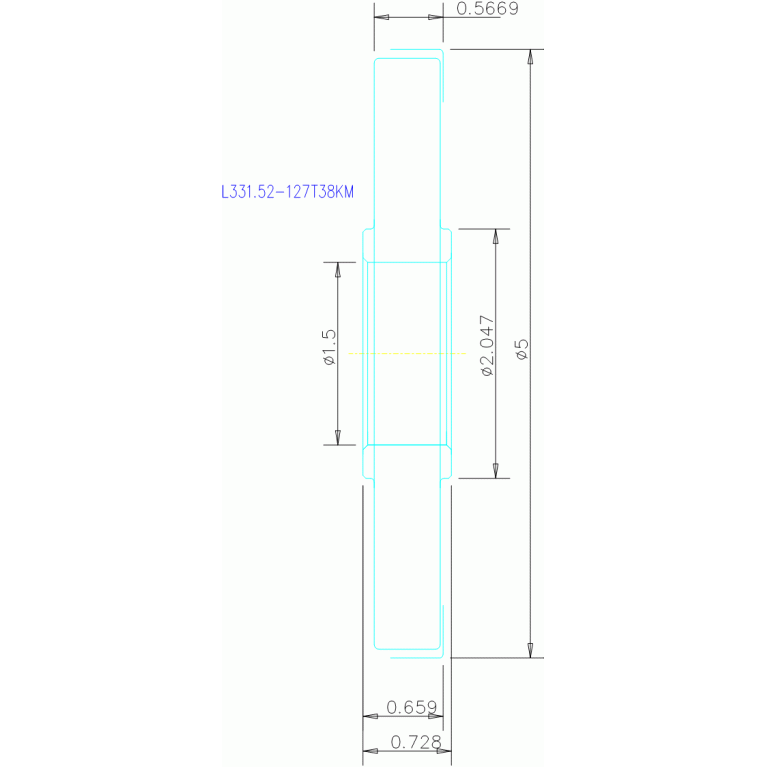

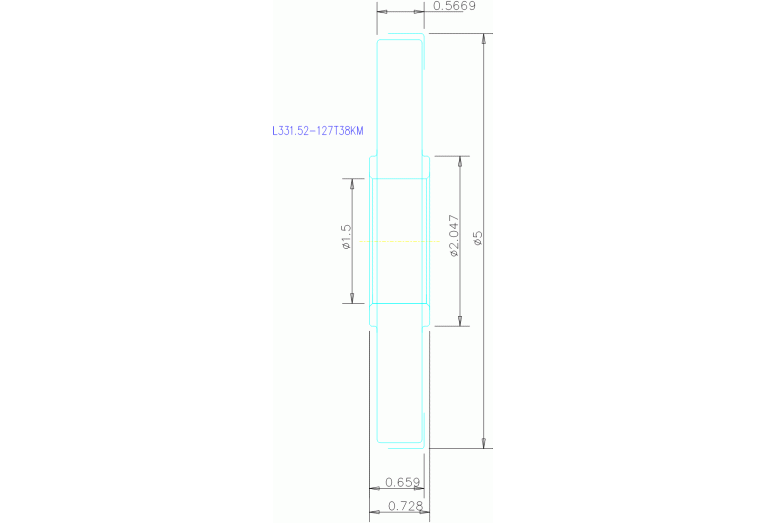

L331.52-127T38KM

L331.52-127T38KM L331.52-127T38KM L331.52-127T38KM L331.52-127T38KM

L331.52-127T38KM

SV - Sandvik-Coromant
Артикул: 5735395
В наличии
0 ₽
В корзину
Описание
Характеристики
BD (Body diameter)
123 mm
BI (Block index)
1
BMC (Body material code)
S - Solid steel
CCONMS (Connection count machine side)
2
CNSC (Coolant entry style code)
0 - Without coolant entry
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DC (Cutting diameter)
127 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DHUB (Hub diameter)
51.994 mm
DIN
FDA15000120
F23 (Number of mounting layers)
1
F24 (Cutting item count per mounting layer)
8
HAND (Cutting direction)
L - Left
Interface codes
J6 / J61
ISO
FDA01S1500$$$$
LOC-01 ISO
SV$$MW11$$023L*$$16
LOC-01 (BI Block index)
1
LOC-01 (MIID Master insert identification)
N331.1A-11
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
SV-MW110000
LOC-03 ISO
FDA01S1500$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
0 Hole in machine direction or shaft in workpiece direction
LOC-03 (CCTMS Connection code type)
FDA Milling arbor mounting
LOC-03 (CCUMS Connection code unit base)
2 Inch
LOC-03 (CZCMS Connection size code)
1500
LOC-03 (DCONMS Diameter)
38.1 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA15000120
MIID (Master insert identification)
N331.1A-11
MILTTY (Mill tool type ISO)
E - Disc mill - one side cutting
OAL (Overall length)
18.491 mm
RPMX (Rotational speed maximum)
12000 1/min
Working process
FPL - Face milling
WT (Weight of item)
1.2 kg
ZEFF (Face effective cutting edge count)
8
ZEFP (Peripheral effective cutting edge count)
8
