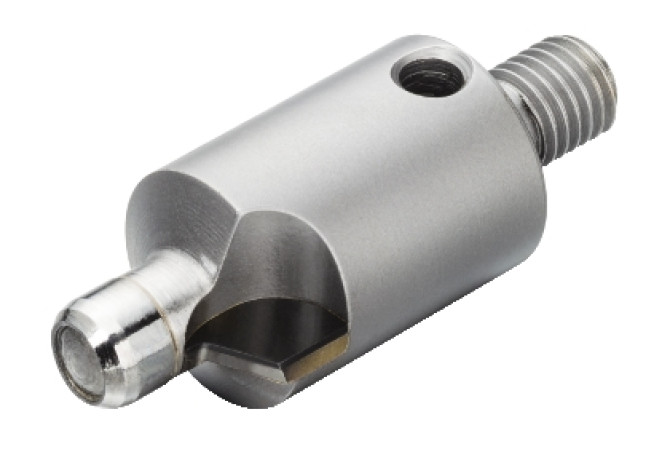

Главная Инструменты 302-05 - Stepped countersinking tool / tapered countersinking tool 452.C1-0632-100T-C CD10

452.C1-0632-100T-C CD10

Артикул: 6010901

В наличии

0 ₽

В корзину

Описание

Характеристики

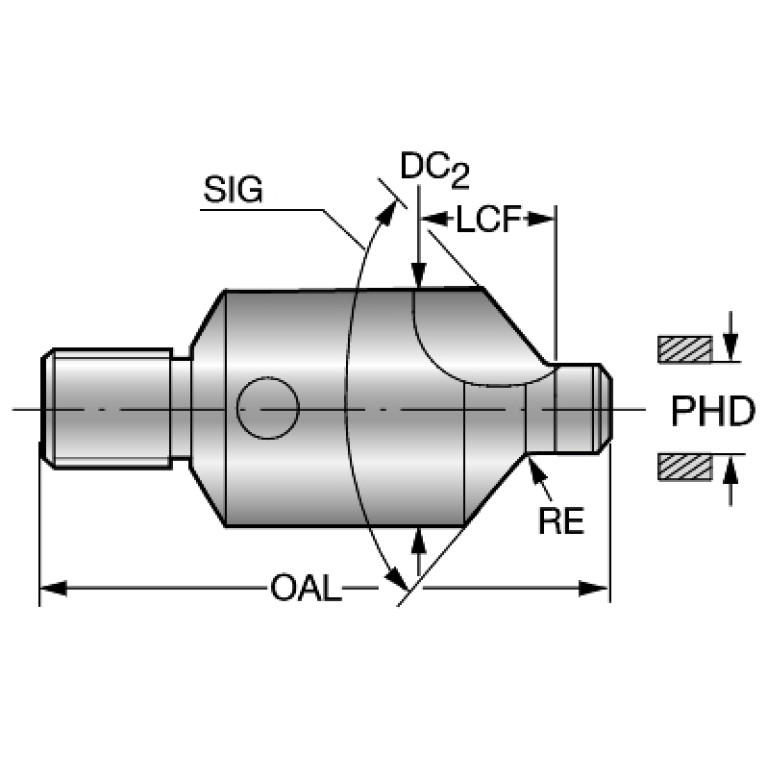

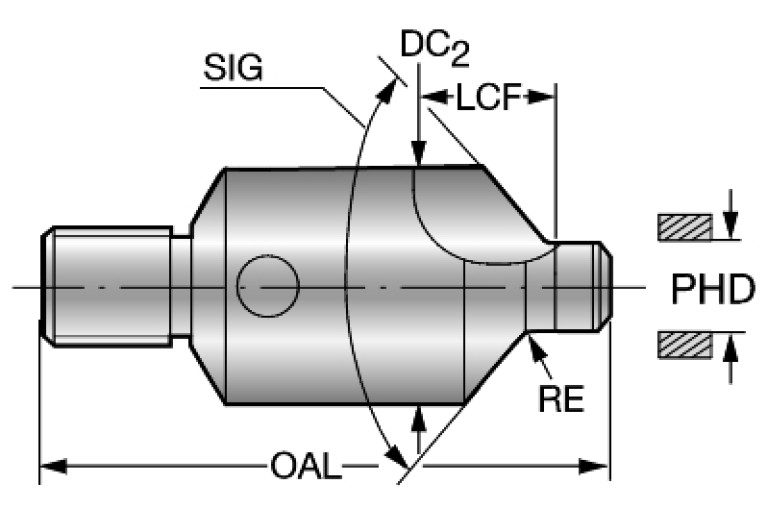

BMC (Body material code)

H - Solid carbide

CCONMS (Connection count machine side)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DC (Cutting diameter minimum)

6.327 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter 1st step maximum)

14 mm

Delivery state valid from

12/1/2023

DIN

SAC02500305

GRDMFG (Grade manufacturers designation)

CD10

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

SAC03B0250$$$$

LCF (Length chip flute)

14.58 mm

LF (Functional length)

11.09 mm

LOC-03 ISO

SAC03B0250$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

SAC Screw mounting SANDVIK Coromant

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0250

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAC02500305

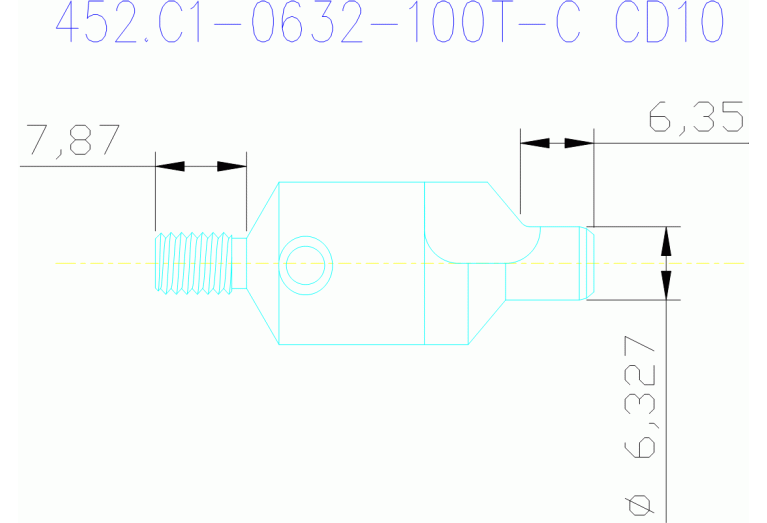

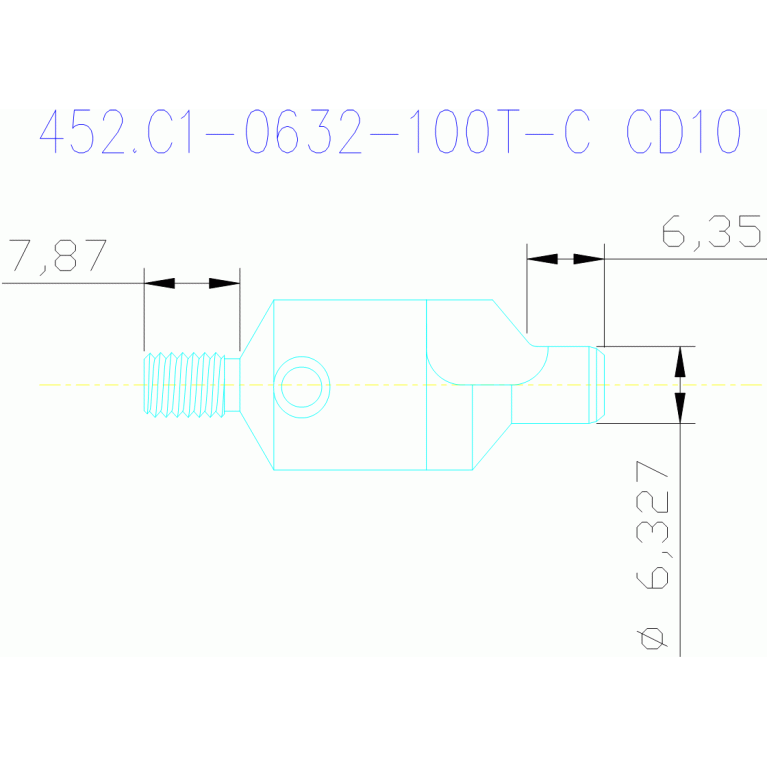

LS (Shank length)

7.87 mm

NOF (Flute count)

OAL (Overall length)

37.82 mm

PHD (Premachined hole diameter)

6.327 mm

RPMX (Rotational speed maximum)

6000 1/min

SIG (Point angle 1st step)

100 Degree

Working process

SPL - Spot facing

WT (Weight of item)

0.033 kg
