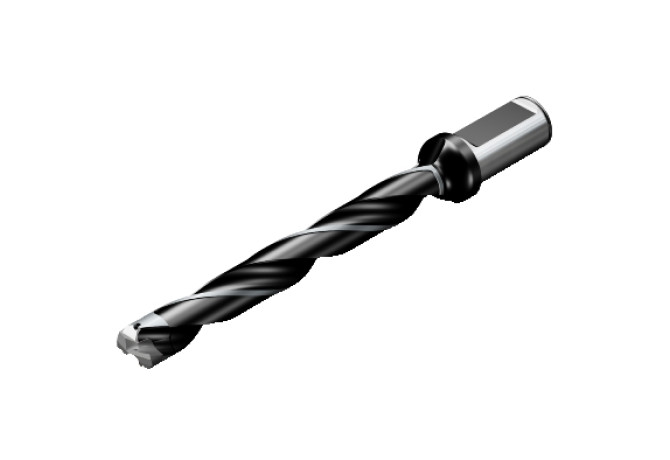

Главная Инструменты 306-10 - Twist drill for drilling blades or drilling inserts 870-1300-12LX063-10

870-1300-12LX063-10

870-1300-12LX063-10 870-1300-12LX063-10 870-1300-12LX063-10 870-1300-12LX063-10

870-1300-12LX063-10

SV - Sandvik-Coromant
Артикул: 6341277
В наличии
0 ₽
В корзину
Описание
Характеристики
BI (Block index)
2
BMC (Body material code)
S - Solid steel
CCONMS (Connection count machine side)
2
CEDC (Cutting edge count)
2
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial
DC (Cutting diameter minimum)
13 mm
DCP (Data chip provision)
0 - Without data chip
DCX (Cutting diameter 1st step maximum)
13.49 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
ZYL06251135
FDC (Flute design code)
3 - Equal helix
FHA (Flute helix angle)
20 Degree
FHH (Flute helix hand)
R - Hand of helix right
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL11R6250h$06
LF (Functional length)
150.94 mm
LOC-03 ISO
ZYL11R6250h$06
LOC-03 (CCFMS Connection code form)
11
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
3 Inch with coolant
LOC-03 (CZCMS Connection size code)
0625
LOC-03 (DCONMS Diameter)
15.875 mm
LOC-03 (TCDCONCDMS Connection tolerance class coded)
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL06251135
LPR (Protruding length)
150.94 mm
LS (Shank length)
48 mm
LU (Usable length)
136.97 mm
MIID (Master insert identification)
870-1340-12-PM
NOF (Flute count)
2
OAL (Overall length)
201 mm
PL (Point length)
2.06 mm
RPMX (Rotational speed maximum)
6500 1/min
S1 (Insert thickness total)
4.96 mm
SIG (Point angle 1st step)
142 Degree
TCDCONMS (ISO-tolerance class shank diameter)
h6
Working process
BVB - Drilling
WT (Weight of item)
0.157 kg
