Главная Инструменты 306-10 - Twist drill for drilling blades or drilling inserts 870-1100-8L16-8

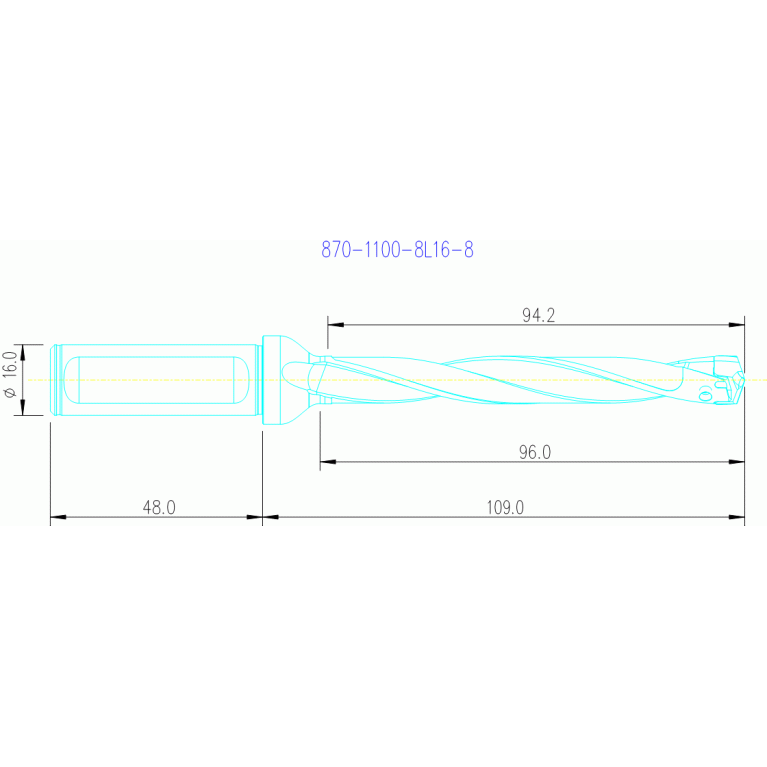

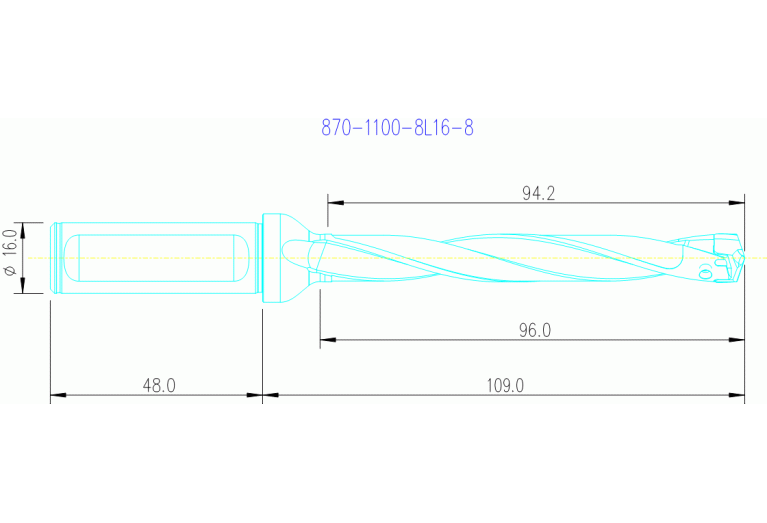

870-1100-8L16-8

Артикул: 6085527

В наличии

0 ₽

В корзину

Описание

Характеристики

BI (Block index)

BMC (Body material code)

S - Solid steel

CCONMS (Connection count machine side)

CEDC (Cutting edge count)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

DC (Cutting diameter minimum)

11 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter 1st step maximum)

11.49 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYL01601115

FDC (Flute design code)

3 - Equal helix

FHA (Flute helix angle)

20 Degree

FHH (Flute helix hand)

R - Hand of helix right

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL11G1600h$06

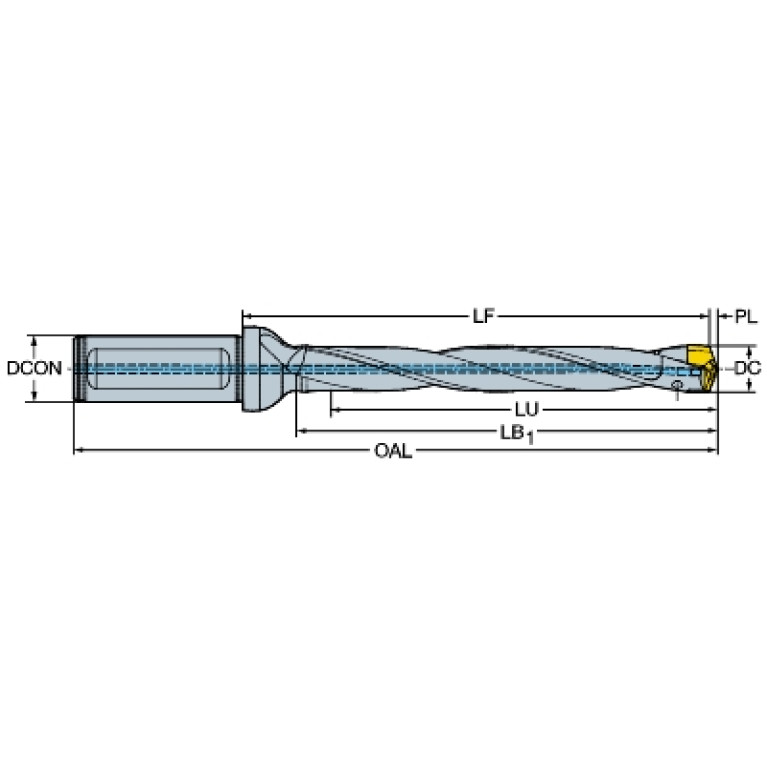

LF (Functional length)

107.25 mm

LOC-03 ISO

ZYL11G1600h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0160

LOC-03 (DCONMS Diameter)

16 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01601115

LPR (Protruding length)

107.25 mm

LS (Shank length)

48 mm

LU (Usable length)

93.68 mm

MIID (Master insert identification)

870-1140-8-PM

NOF (Flute count)

OAL (Overall length)

157 mm

PL (Point length)

1.75 mm

RPMX (Rotational speed maximum)

12000 1/min

S1 (Insert thickness total)

4.46 mm

SIG (Point angle 1st step)

142 Degree

TCDCONMS (ISO-tolerance class shank diameter)

Working process

BVB - Drilling

WT (Weight of item)

0.125 kg
