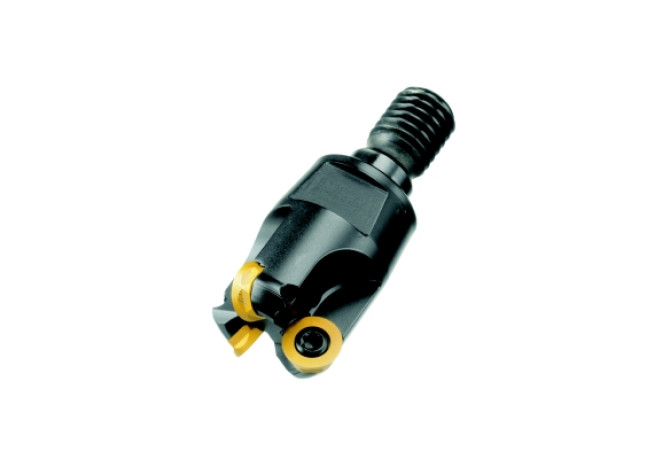

Главная Инструменты 307-05 - Single row rounded end mill RA300-13T08-05M

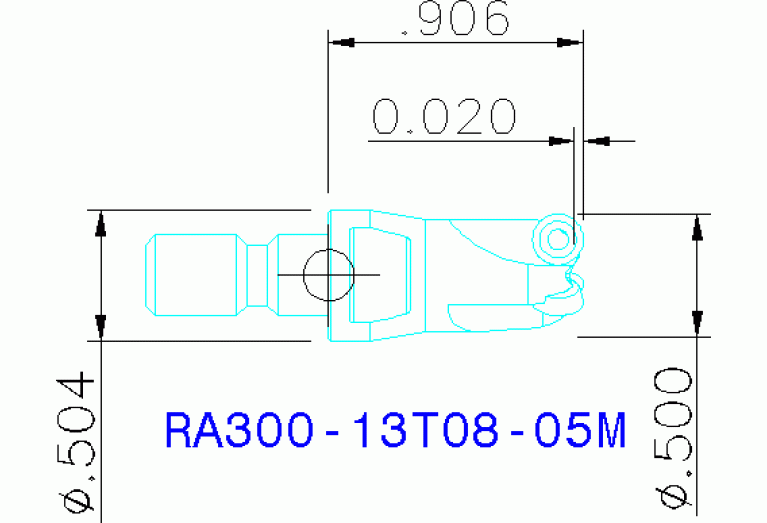

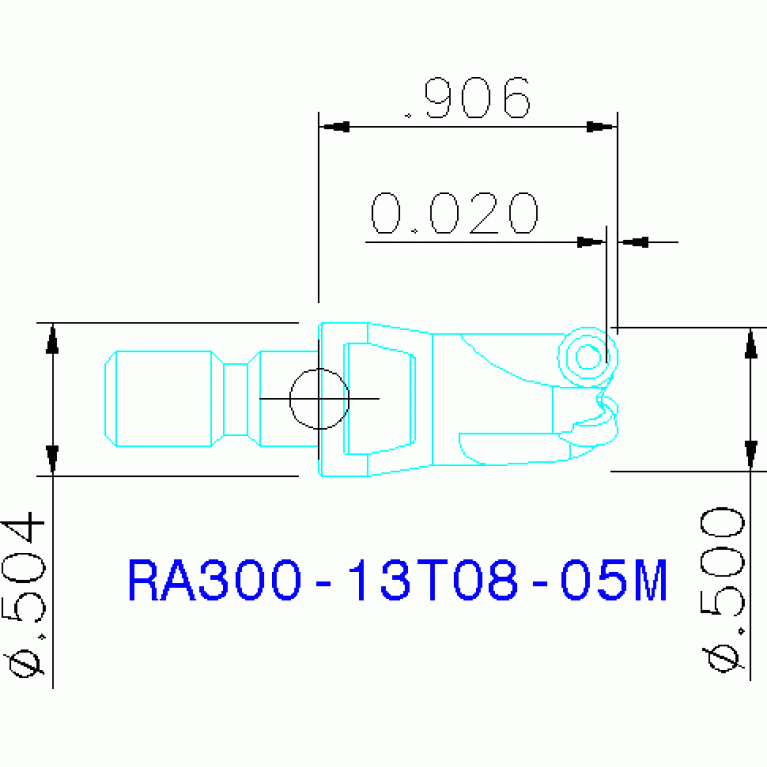

RA300-13T08-05M

RA300-13T08-05M RA300-13T08-05M RA300-13T08-05M RA300-13T08-05M

RA300-13T08-05M

SV - Sandvik-Coromant
Артикул: 5740041
В наличии
0 ₽
В корзину
Описание
Характеристики

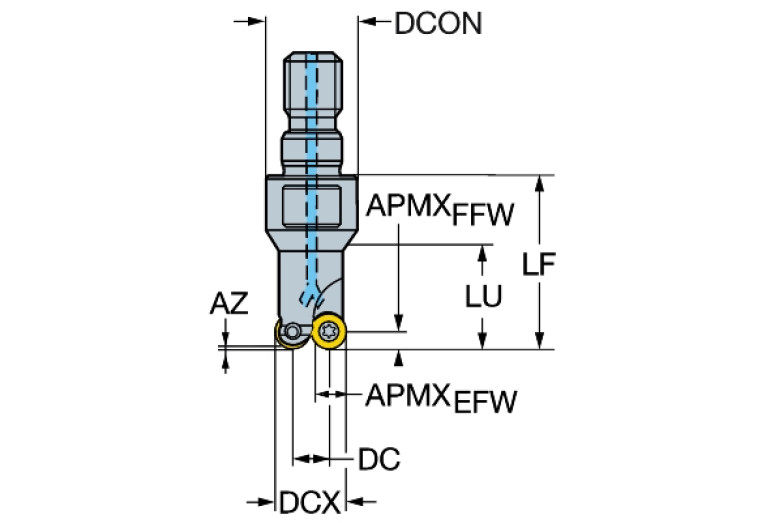

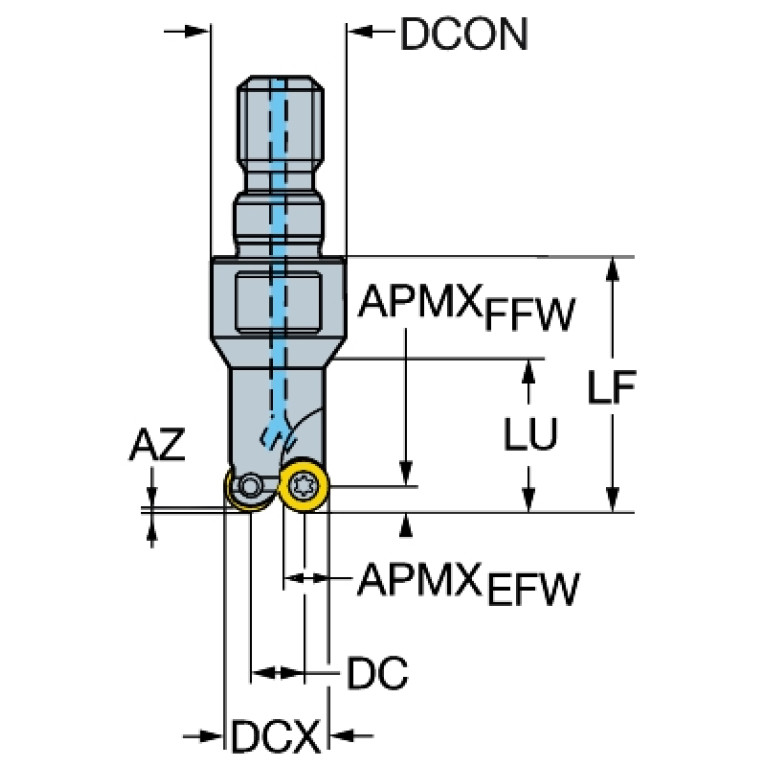

A2A (Clearance angle major Pos. A)
15 Degree
APMX (Depth of cut maximum)
2.5 mm
AZ (Plunge depth maximum)
0.9 mm
B3A (Inscribed circle diameter Pos. A)
5 mm
BD (Body diameter)
11.75 mm
BI (Block index)
1
BLDA (Tool style code Position A)
10
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
1.7 mm
CCONMS (Connection count machine side)
2
CICT (Cutting item count)
3
CNSC (Coolant entry style code)
0 - Without coolant entry
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
D1A (Corner radius Pos. A)
2.5 mm
DC (Cutting diameter)
7.7 mm
DCP (Data chip provision)
0 - Without data chip
DCX (Cutting diameter maximum)
12.7 mm
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
SAC00800385
F23 (Number of mounting layers)
1
F24 (Cutting item count per mounting layer)
3
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
SAC03A0080$$$$
LOC-03 ISO
SAC03A0080$$$$
LOC-03 (CCFMS Connection code form)
03
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
SAC Screw mounting SANDVIK Coromant
LOC-03 (CCUMS Connection code unit base)
8 non-dimensional size
LOC-03 (CZCMS Connection size code)
0080
LOC-03 (DCONMS Diameter)
12.8 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAC00800385
LPR (Protruding length)
23 mm
LS (Shank length)
17.5 mm
LU (Usable length)
15.1 mm
MIID (Master insert identification)
R300-0517..
MILTTY (Mill tool type ISO)
N - Torus End Mill
OAL (Overall length)
40.5 mm
RMPX (Ramping angle maximum)
10 Degree
RPMX (Rotational speed maximum)
1000 1/min
Working process
FEC - Square shoulder milling,FFO - Die milling,FPL - Face milling,FPR - Profile milling
WT (Weight of item)
0.051 kg
ZEFF (Face effective cutting edge count)
3
ZEFP (Peripheral effective cutting edge count)
3
