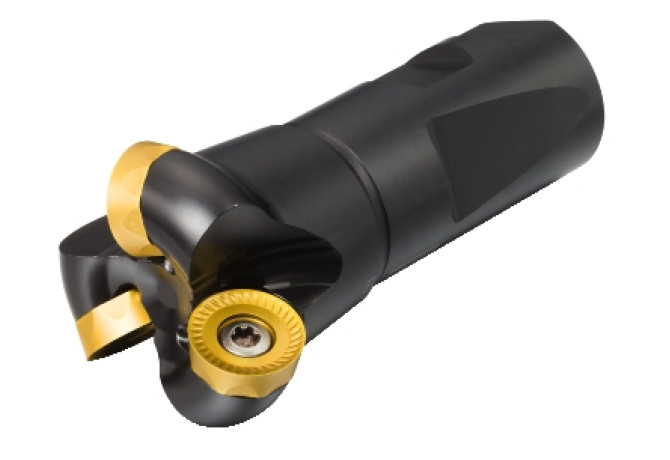

Главная Инструменты 307-05 - Single row rounded end mill RA200-032MN32-19L

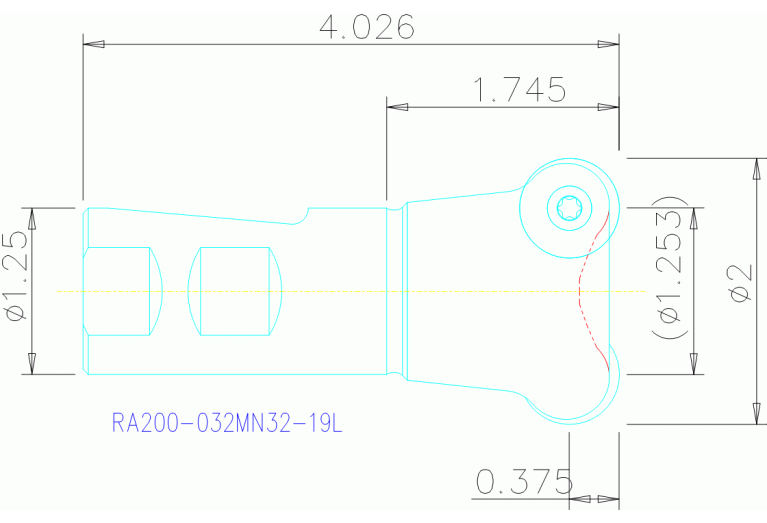

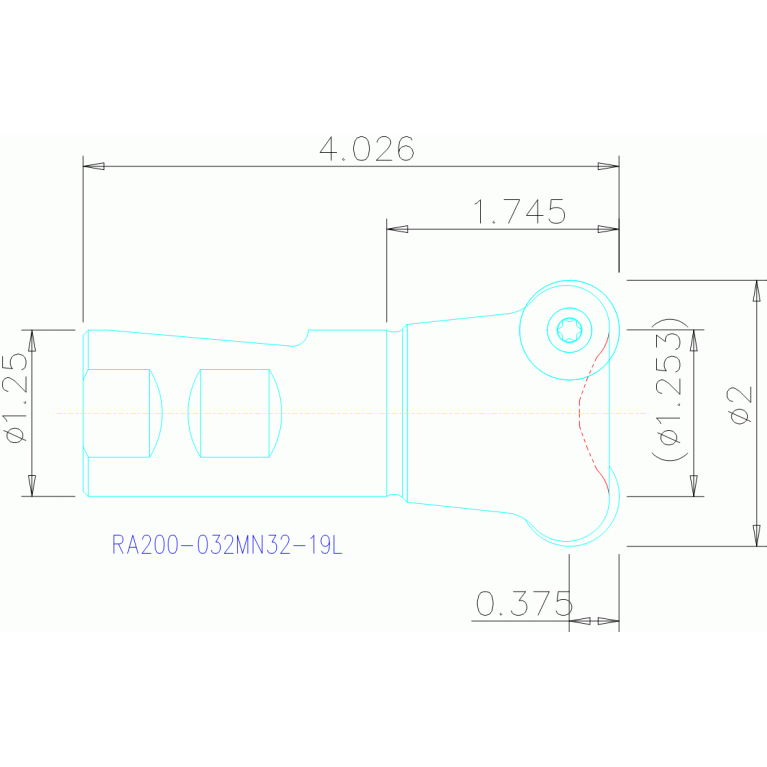

RA200-032MN32-19L

Артикул: 5739026

В наличии

0 ₽

В корзину

Описание

Характеристики

A2A (Clearance angle major Pos. A)

7 Degree

APMX (Depth of cut maximum)

9.525 mm

AZ (Plunge depth maximum)

5.8 mm

B3A (Inscribed circle diameter Pos. A)

19.05 mm

BD (Body diameter)

50.8 mm

BI (Block index)

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

6.35 mm

CCONMS (Connection count machine side)

CICT (Cutting item count)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

D1A (Corner radius Pos. A)

9.525 mm

DC (Cutting diameter)

31.75 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

50.8 mm

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

ZYL12501825

F23 (Number of mounting layers)

F24 (Cutting item count per mounting layer)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL18S1250h$06

LOC-03 ISO

ZYL18S1250h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

2 Inch

LOC-03 (CZCMS Connection size code)

1250

LOC-03 (DCONMS Diameter)

31.75 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL12501825

LPR (Protruding length)

42 mm

MIID (Master insert identification)

RCKT190600

MILTTY (Mill tool type ISO)

N - Torus End Mill

OAL (Overall length)

102 mm

RMPX (Ramping angle maximum)

13 Degree

RPMX (Rotational speed maximum)

20900 1/min

TCDCONMS (ISO-tolerance class shank diameter)

Working process

FEC - Square shoulder milling,FFO - Die milling,FPL - Face milling,FPR - Profile milling

WT (Weight of item)

1 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
