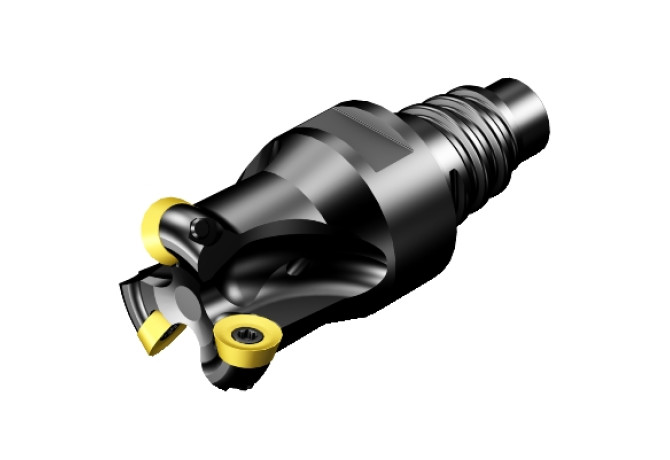

R300-20EH20-10L
R300-20EH20-10L
Артикул:
6550018
В наличии
0 ₽
Характеристики
A2A (Clearance angle major Pos. A)
15 Degree

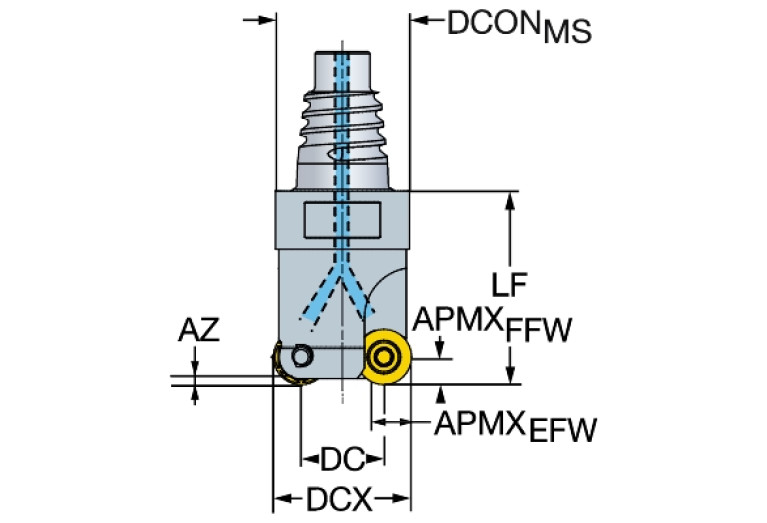

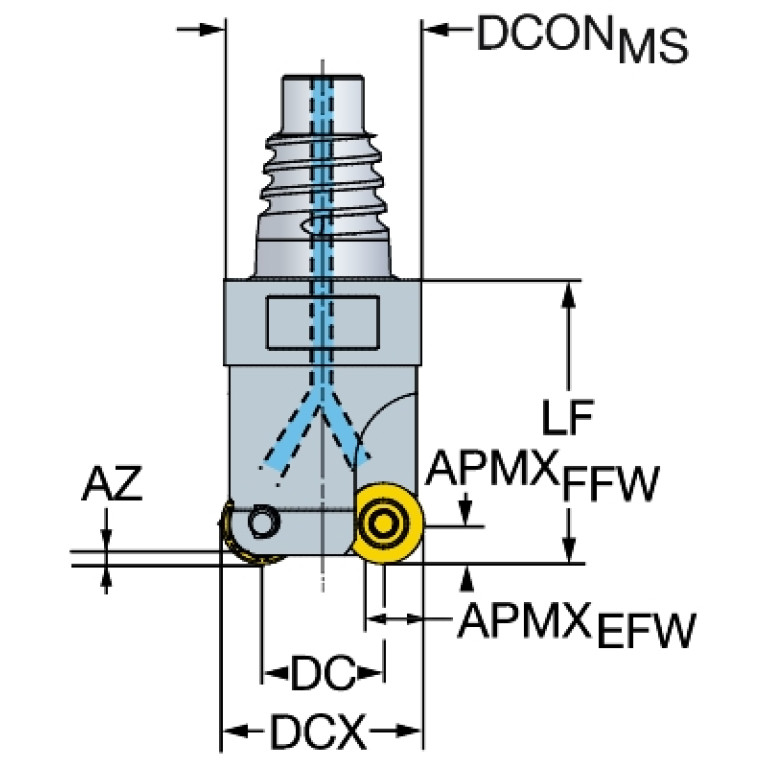

APMX (Depth of cut maximum)
5 mm
AZ (Plunge depth maximum)
3.4 mm
B3A (Inscribed circle diameter Pos. A)
10 mm
BD (Body diameter)
18.04 mm
BLDA (Tool style code Position A)
10
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
3.175 mm
CCONMS (Connection count machine side)
2
CICT (Cutting item count)
2
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial
D1A (Corner radius Pos. A)
5 mm
DC (Cutting diameter)
10 mm
DCP (Data chip provision)
0 - Without data chip
DCX (Cutting diameter maximum)
20 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
SAC02000415
F23 (Number of mounting layers)
1
F24 (Cutting item count per mounting layer)
2
GAMF (Rake angle radial)
0 Degree
GAMP (Rake angle axial)
0 Degree
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
SAC04A0200$$$$
LOC-03 ISO
SAC04A0200$$$$
LOC-03 (CCFMS Connection code form)
04
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
SAC Screw mounting SANDVIK Coromant
LOC-03 (CCUMS Connection code unit base)
1 Metric with coolant
LOC-03 (CZCMS Connection size code)
0200
LOC-03 (DCONMS Diameter)
19.3 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAC02000415
LPR (Protruding length)
35 mm
MILTTY (Mill tool type ISO)
N - Torus End Mill

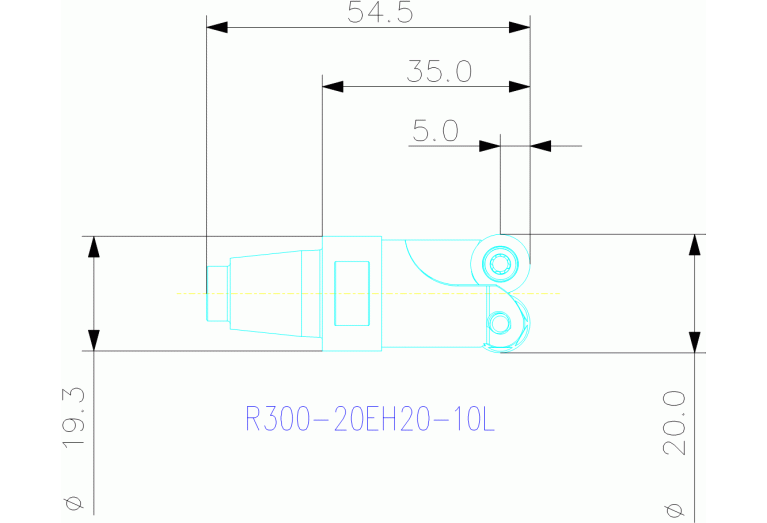

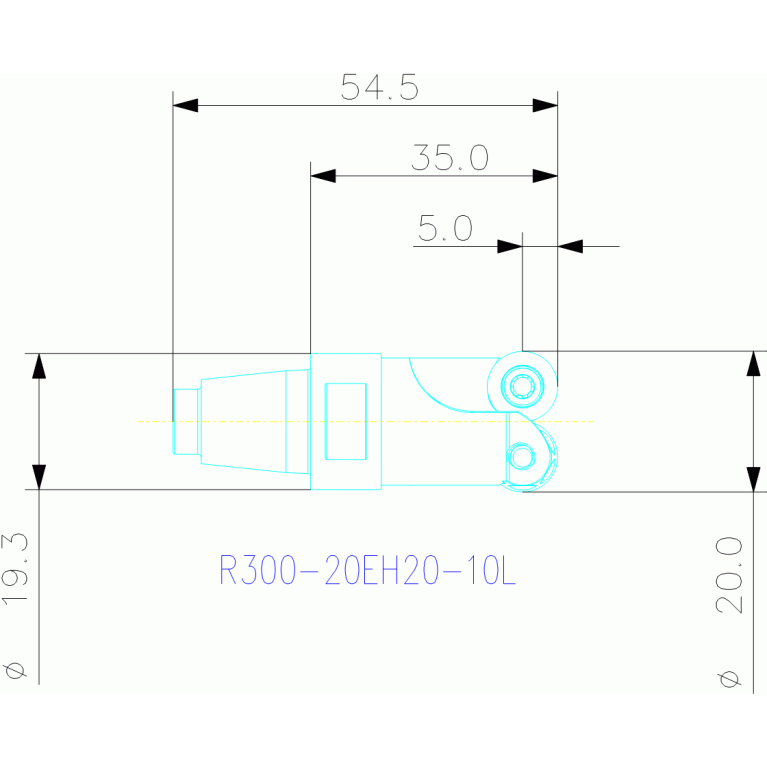

OAL (Overall length)
54.5 mm
RMPX (Ramping angle maximum)
20 Degree
RPMX (Rotational speed maximum)
20000 1/min
Working process
FEC - Square shoulder milling,FFO - Die milling,FPL - Face milling,FPR - Profile milling
WT (Weight of item)
0.066 kg
ZEFF (Face effective cutting edge count)
2
ZEFP (Peripheral effective cutting edge count)
2
