Главная Инструменты 307-05 - Single row rounded end mill R300-080C6-08H

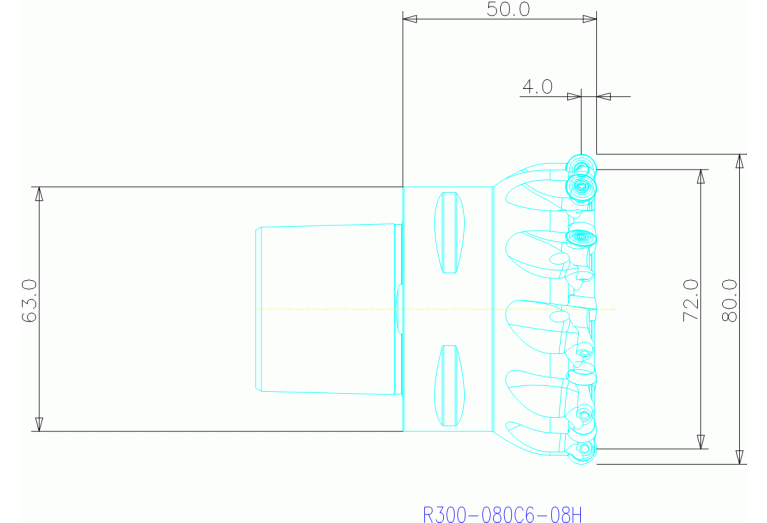

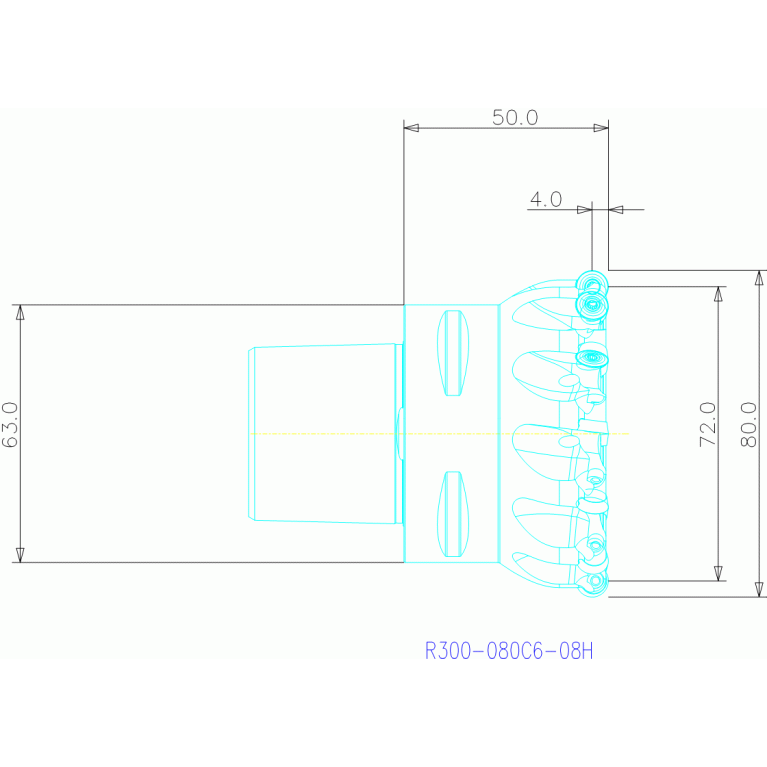

R300-080C6-08H

Артикул: 5744320

В наличии

0 ₽

В корзину

Описание

Характеристики

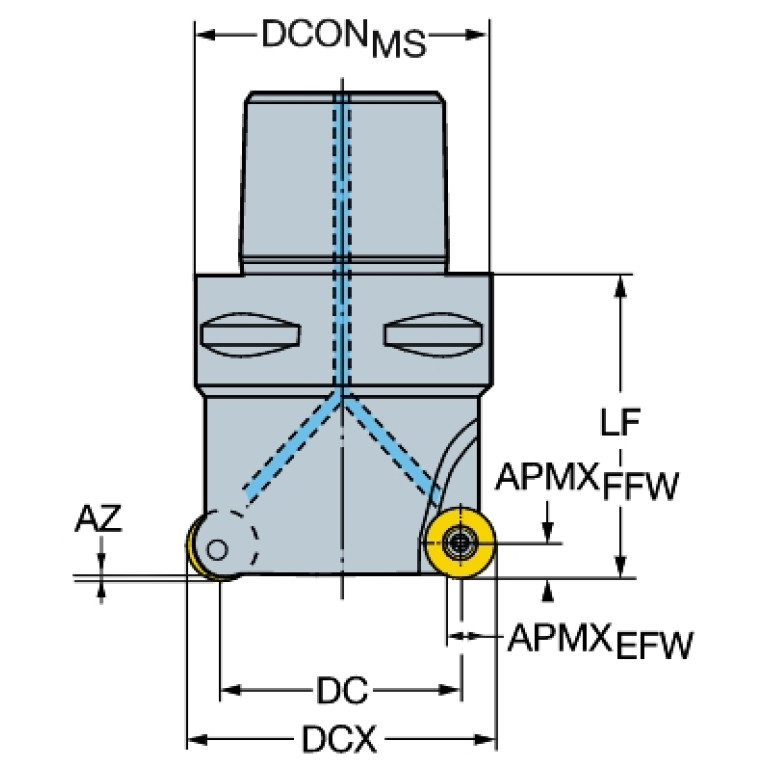

A2A (Clearance angle major Pos. A)

15 Degree

APMX (Depth of cut maximum)

4 mm

AZ (Plunge depth maximum)

1.9 mm

B3A (Inscribed circle diameter Pos. A)

8 mm

BD (Body diameter)

75.3 mm

BI (Block index)

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

2.78 mm

CCONMS (Connection count machine side)

CICT (Cutting item count)

CNSC (Coolant entry style code)

3 - With Coolant entry, axial concentric and radial

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

D1A (Corner radius Pos. A)

4 mm

DC (Cutting diameter)

72 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

80 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

CCS06300195

F23 (Number of mounting layers)

F24 (Cutting item count per mounting layer)

GAMF (Rake angle radial)

7 Degree

GAMP (Rake angle axial)

0 Degree

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

CCS01C0630$$$$

LF (Functional length)

50 mm

LOC-03 ISO

CCS01C0630$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0630

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS06300195

LPR (Protruding length)

50 mm

MIID (Master insert identification)

R300-0828..

MILTTY (Mill tool type ISO)

N - Torus End Mill

OAL (Overall length)

88 mm

RMPX (Ramping angle maximum)

1 Degree

RPMX (Rotational speed maximum)

20500 1/min

Working process

FEC - Square shoulder milling,FFO - Die milling,FPL - Face milling,FPR - Profile milling

WT (Weight of item)

1.433 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
