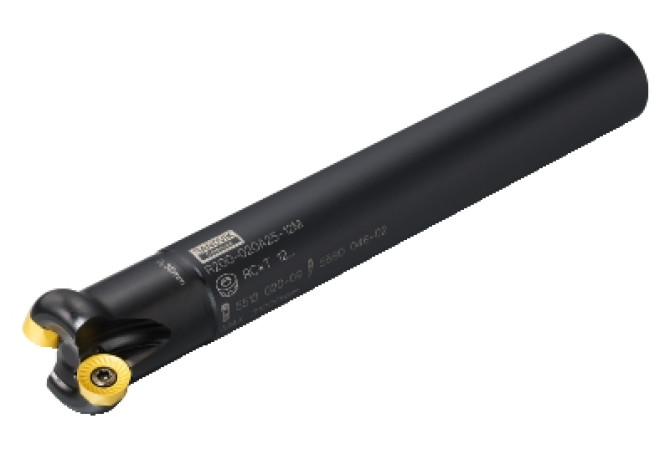

Главная Инструменты 307-05 - Single row rounded end mill R200-038A32-12L

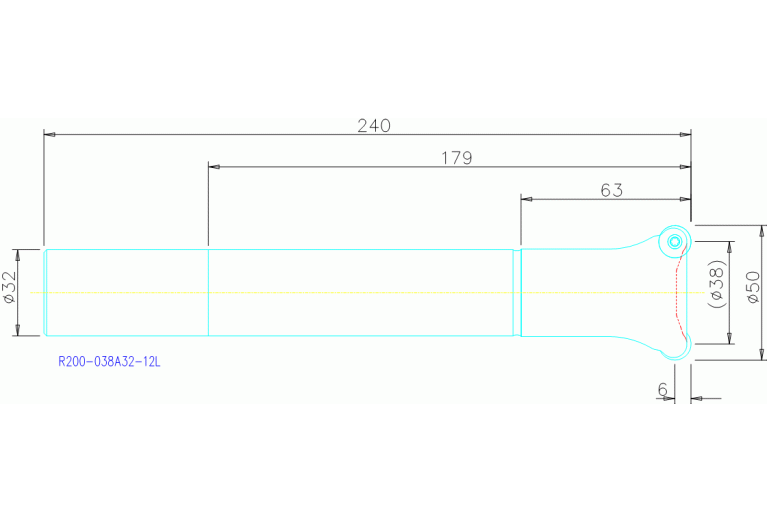

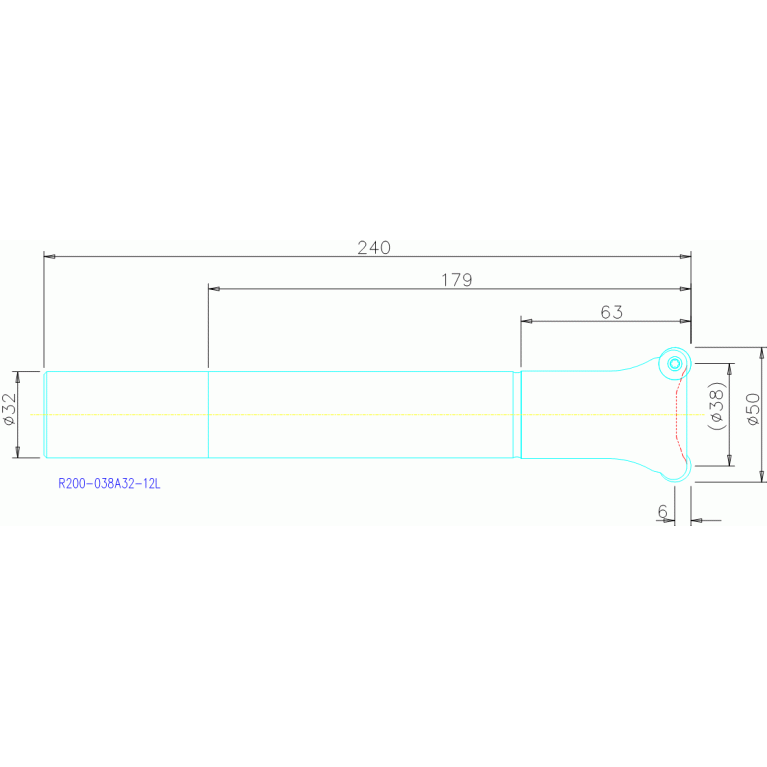

R200-038A32-12L

R200-038A32-12L R200-038A32-12L R200-038A32-12L R200-038A32-12L

R200-038A32-12L

SV - Sandvik-Coromant
Артикул: 5742441
В наличии
0 ₽
В корзину
Описание
Характеристики

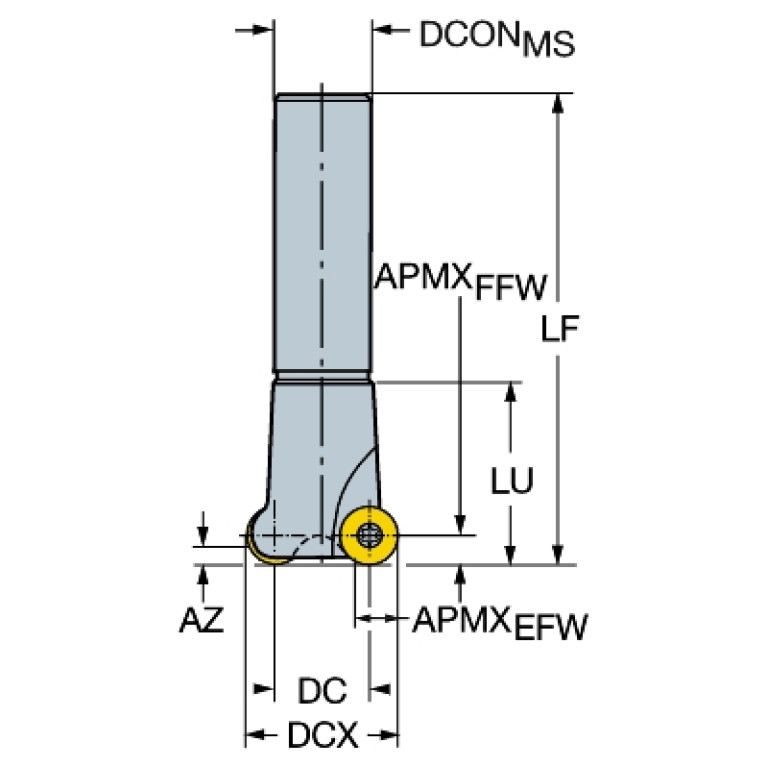

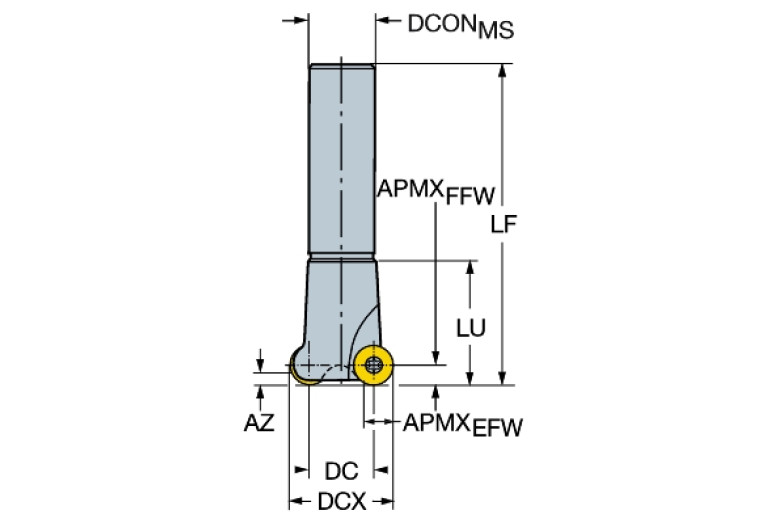

A2A (Clearance angle major Pos. A)
7 Degree
APMX (Depth of cut maximum)
6 mm
AZ (Plunge depth maximum)
3.7 mm
B3A (Inscribed circle diameter Pos. A)
12 mm
BD (Body diameter)
50 mm
BI (Block index)
1
BLDA (Tool style code Position A)
10
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
4.762 mm
CCONMS (Connection count machine side)
2
CICT (Cutting item count)
3
CNSC (Coolant entry style code)
0 - Without coolant entry
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
D1A (Corner radius Pos. A)
6 mm
DC (Cutting diameter)
38 mm
DCP (Data chip provision)
0 - Without data chip
DCX (Cutting diameter maximum)
50 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
ZYL03200105
F23 (Number of mounting layers)
1
F24 (Cutting item count per mounting layer)
3
GAMF (Rake angle radial)
-7 Degree
GAMP (Rake angle axial)
0 Degree
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISISO A (Indicator for ISO cutting plate Pos.A)
1
ISO
ZYL01G3200$$$$
LF (Functional length)
240 mm
LOC-03 ISO
ZYL01G3200$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
0 Metric
LOC-03 (CZCMS Connection size code)
0320
LOC-03 (DCONMS Diameter)
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03200105
LPR (Protruding length)
180 mm
LS (Shank length)
60 mm
MIID (Master insert identification)
RCKT1204M0
MILTTY (Mill tool type ISO)
N - Torus End Mill
OAL (Overall length)
240 mm
RMPX (Ramping angle maximum)
6.5 Degree
RPMX (Rotational speed maximum)
22500 1/min
Working process
FEC - Square shoulder milling,FFO - Die milling,FPL - Face milling,FPR - Profile milling
WT (Weight of item)
1.691 kg
ZEFF (Face effective cutting edge count)
3
ZEFP (Peripheral effective cutting edge count)
3
