Главная Инструменты 307-05 - Single row rounded end mill A600-025O25-10H

A600-025O25-10H

A600-025O25-10H A600-025O25-10H A600-025O25-10H A600-025O25-10H

A600-025O25-10H

SV - Sandvik-Coromant
Артикул: 7082847
В наличии
0 ₽
В корзину
Описание
Характеристики

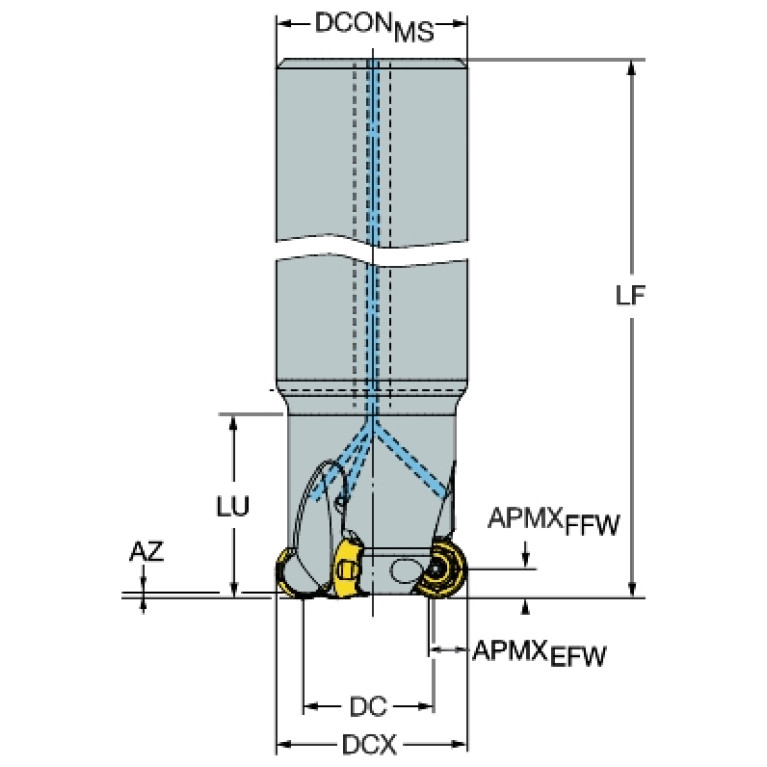

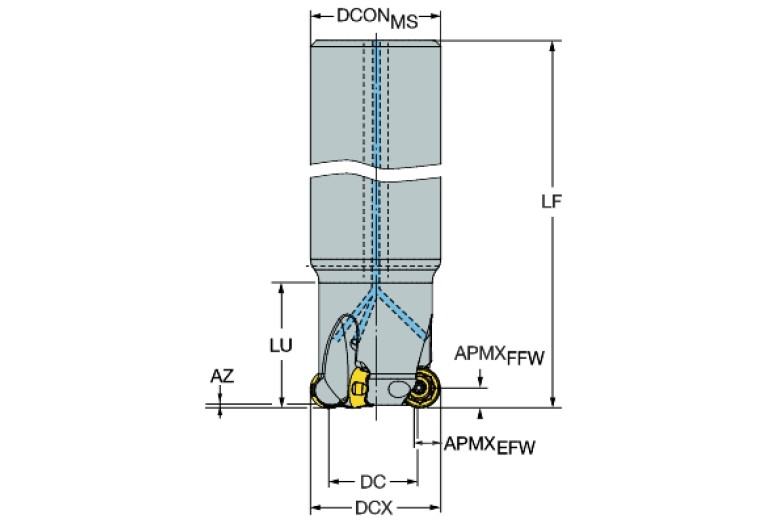

A2A (Clearance angle major Pos. A)
11 Degree
APMX (Depth of cut maximum)
5 mm
AZ (Plunge depth maximum)
1.5 mm
B3A (Inscribed circle diameter Pos. A)
10 mm
BI (Block index)
1
BLDA (Tool style code Position A)
10
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
4.5 mm
CCONMS (Connection count machine side)
2
CICT (Cutting item count)
3
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial
DC (Cutting diameter)
15.4 mm
DCP (Data chip provision)
0 - Without data chip
DCX (Cutting diameter maximum)
25.4 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
ZYL10000135
F23 (Number of mounting layers)
1
F24 (Cutting item count per mounting layer)
3
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL01S1000$$$$

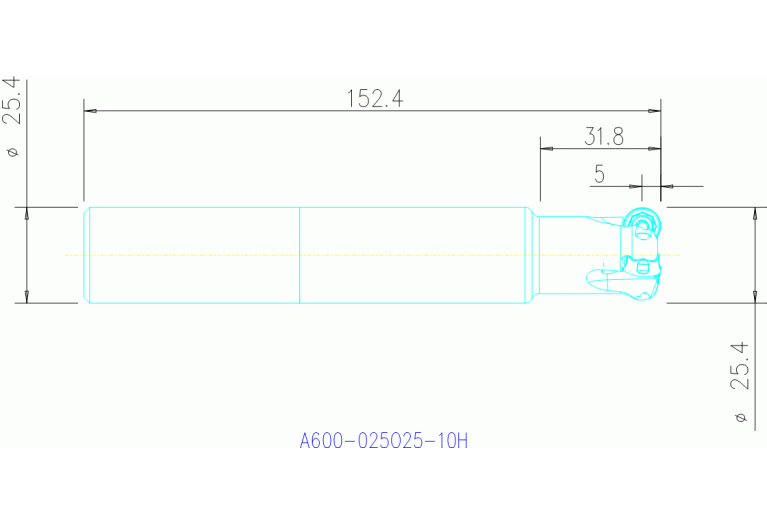

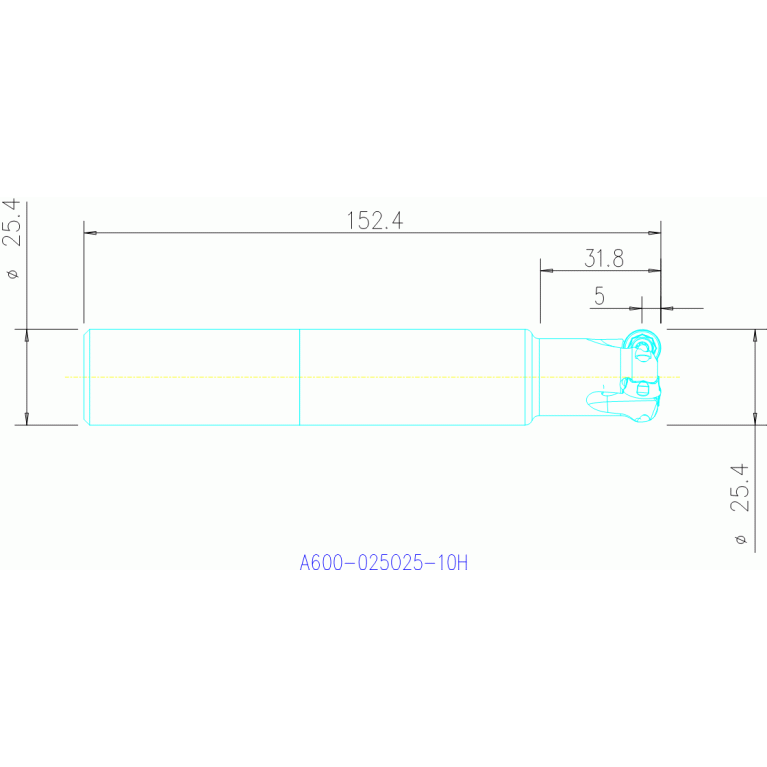

LF (Functional length)
152.4 mm
LOC-03 ISO
ZYL01S1000$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
3 Inch with coolant
LOC-03 (CZCMS Connection size code)
1000
LOC-03 (DCONMS Diameter)
25.4 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL10000135
LPR (Protruding length)
94 mm
LS (Shank length)
114.2 mm
MIID (Master insert identification)
600-1045
MILTTY (Mill tool type ISO)
N - Torus End Mill
OAL (Overall length)
152.4 mm
RMPX (Ramping angle maximum)
3 Degree
RPMX (Rotational speed maximum)
22300 1/min
Working process
FEC - Square shoulder milling,FFO - Die milling,FPL - Face milling,FPR - Profile milling
WT (Weight of item)
0.506 kg
ZEFF (Face effective cutting edge count)
3
ZEFP (Peripheral effective cutting edge count)
3
