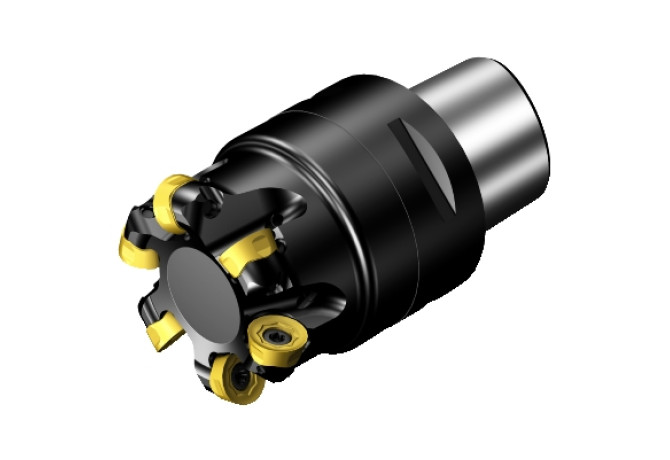

Главная Инструменты 307-05 - Single row rounded end mill 600-063C6-12H

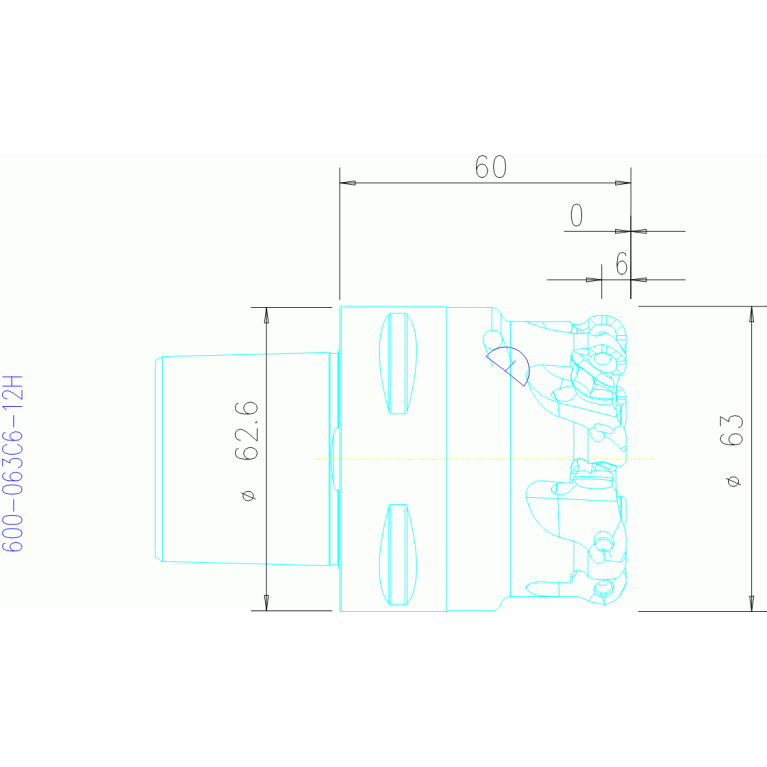

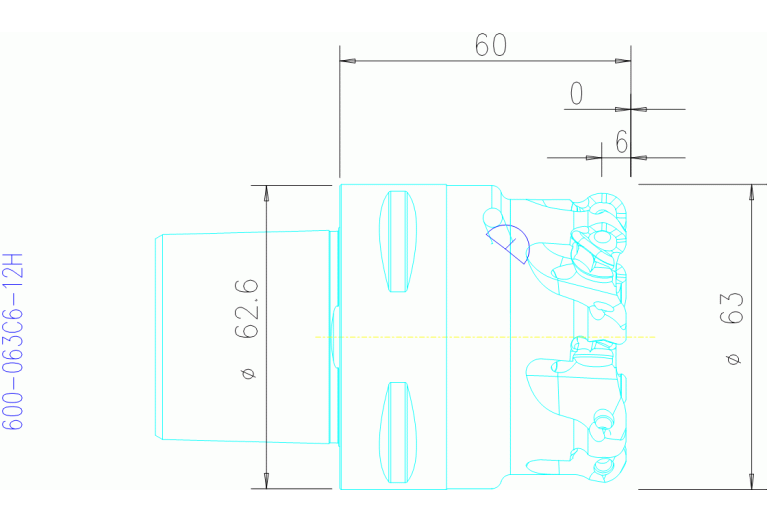

600-063C6-12H

600-063C6-12H

SV - Sandvik-Coromant

Артикул: 7082840

В наличии

0 ₽

В корзину

Описание

Характеристики

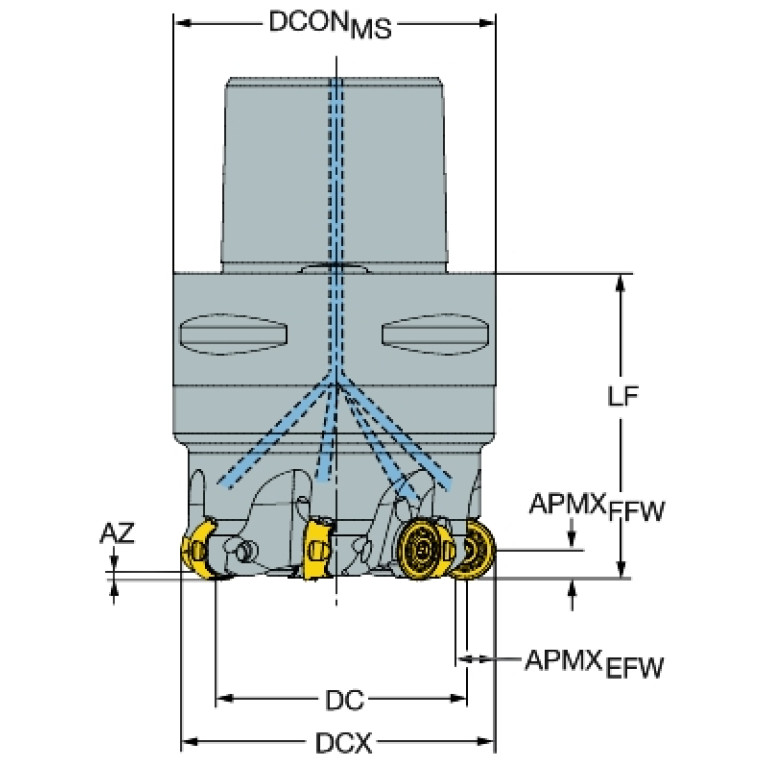

A2A (Clearance angle major Pos. A)

11 Degree

APMX (Depth of cut maximum)

6 mm

AZ (Plunge depth maximum)

2 mm

B3A (Inscribed circle diameter Pos. A)

12 mm

BLDA (Tool style code Position A)

10

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

5.2 mm

CCONMS (Connection count machine side)

2

CICT (Cutting item count)

7

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

DC (Cutting diameter)

51 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

63 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

CCS06300195

F23 (Number of mounting layers)

1

F24 (Cutting item count per mounting layer)

7

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

CCS01C0630$$$$

LF (Functional length)

38 mm

LOC-03 ISO

CCS01C0630$$$$

LOC-03 (CCFMS Connection code form)

01

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0630

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS06300195

LPR (Protruding length)

38 mm

MILTTY (Mill tool type ISO)

N - Torus End Mill

OAL (Overall length)

98 mm

RMPX (Ramping angle maximum)

2.5 Degree

RPMX (Rotational speed maximum)

16700 1/min

Working process

FEC - Square shoulder milling,FFO - Die milling,FPL - Face milling,FPR - Profile milling

WT (Weight of item)

1.413 kg

ZEFF (Face effective cutting edge count)

7

ZEFP (Peripheral effective cutting edge count)

7
