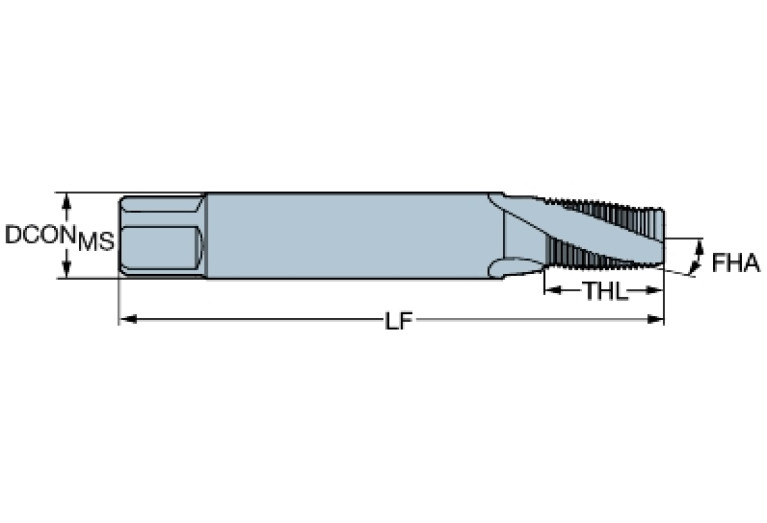

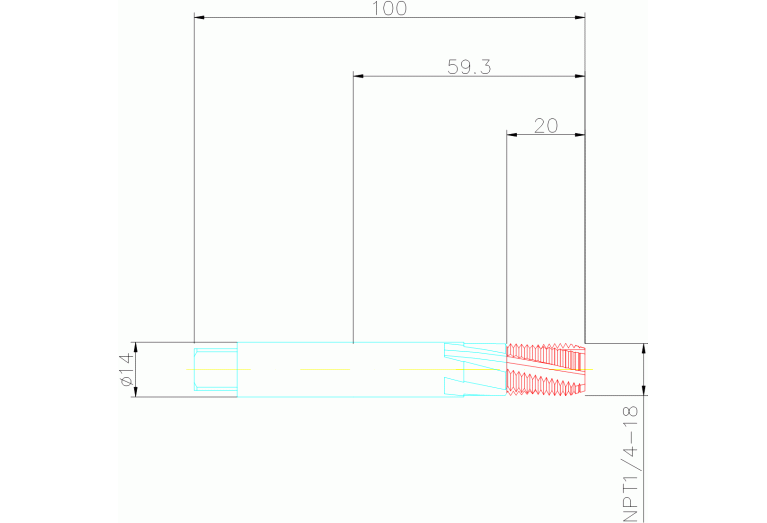

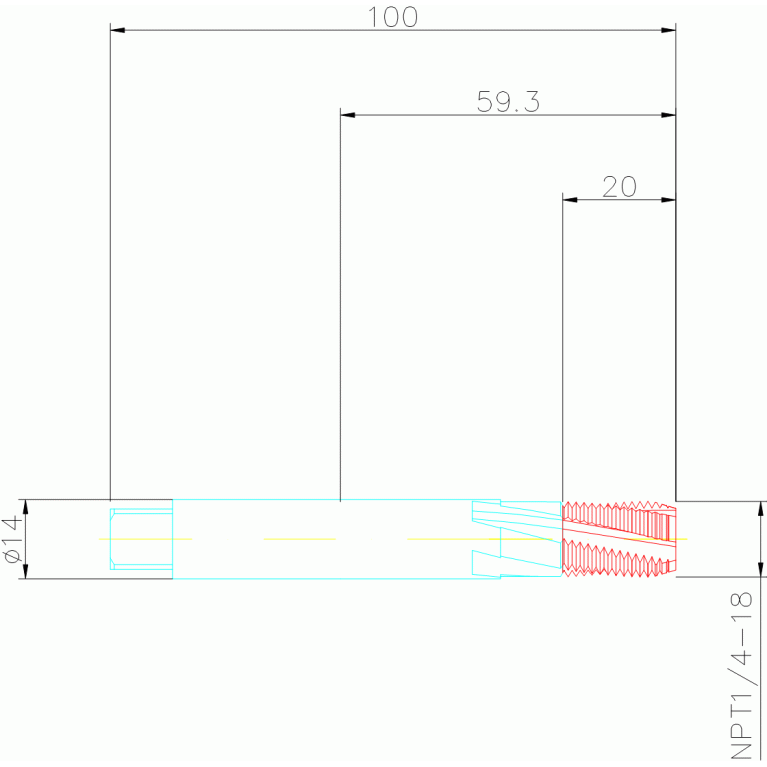

T300-XM100AL-1/4 B145

Артикул: 6967070

В наличии

0 ₽

В корзину

Описание

Характеристики

BMC (Body material code)

S - Solid steel

CNSC (Coolant entry style code)

0 - Without coolant entry

COATN (Coating)

PVD FeN

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYL05622125

DN (Neck diameter)

13.2 mm

DRVS (Drive size)

10.693 mm

FHA (Flute helix angle)

15 Degree

FHH (Flute helix hand)

R - Hand of helix right

GRDMFG (Grade manufacturers designation)

B145

GRDPRIO (Standard designation of the grade main application)

HSS-E

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL21R5620h$09

LDRED (Neck length)

59 mm

LOC-03 ISO

ZYL21R5620h$09

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

2 Inch

LOC-03 (CZCMS Connection size code)

0562

LOC-03 (DCONMS Diameter)

14.275 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL05622125

LS (Shank length)

45.875 mm

Materials

P,M,K,N,S

NOF (Flute count)

OAL (Overall length)

100 mm

PLCD (Gate diameter)

11 mm

TCDCONMS (ISO-tolerance class shank diameter)

TCL (Tap chamfer length)

4.173 mm

TCTR (Thread tolerance class)

NORMAL

TD (Thread diameter)

13.372 mm

THFT (Thread form type)

NPT60

THL (Thread cutting part length)

20 mm

TPI (Threads per inch)

18 1/in

TTPID (Tap type identifier)

1 - Machine tap

Working process

BG - Tapping,BGD - Thread cutting, through hole,BGS - Thread cutting, blind hole

WT (Weight of item)

0.1 kg
