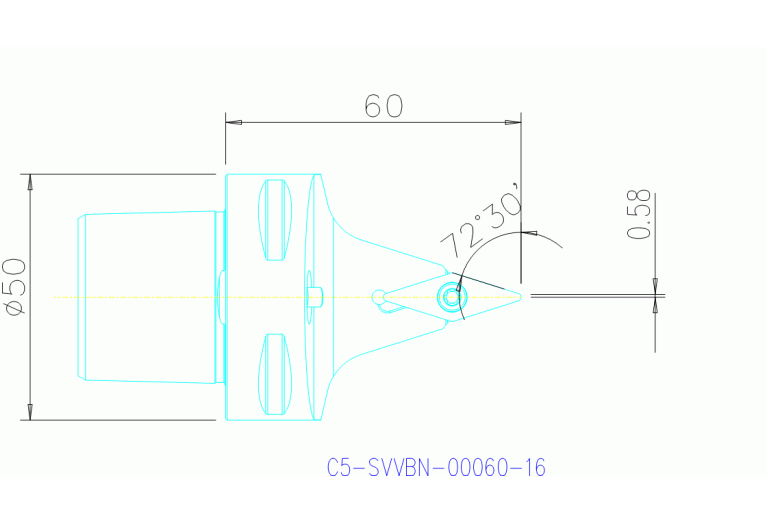

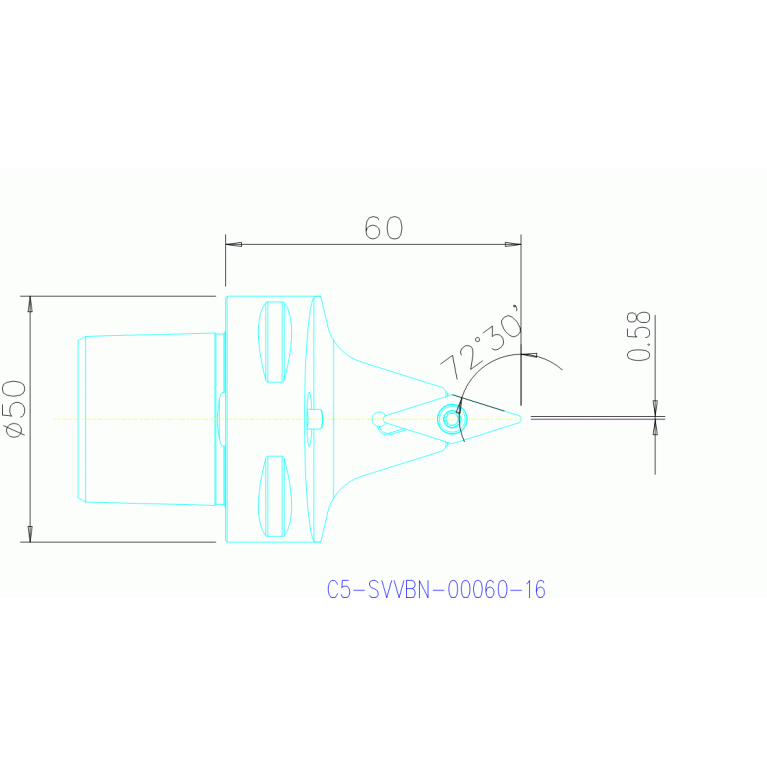

Главная Инструменты 309-14 - System tool, neutral design for OD turning C5-SVVBN-00060-16

C5-SVVBN-00060-16

Артикул: 5729280

В наличии

0 ₽

В корзину

Описание

Характеристики

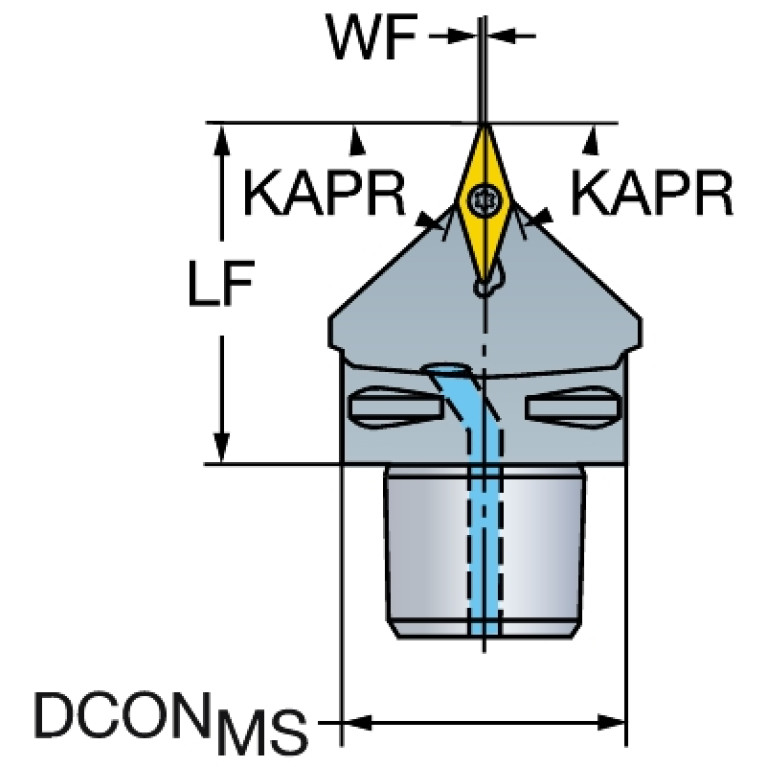

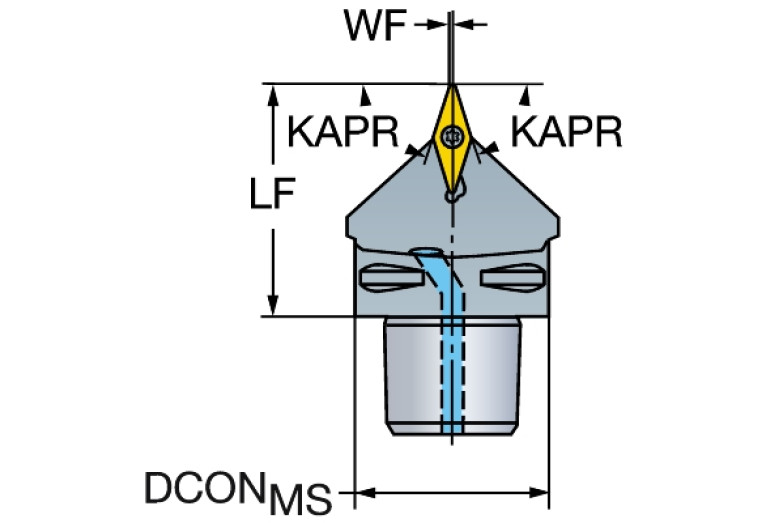

A2A (Clearance angle major Pos. A)

5 Degree

B3A (Inscribed circle diameter Pos. A)

9.525 mm

BI (Block index)

BLDA (Tool style code Position A)

C1A (Insert thickness Pos. A)

4.762 mm

CEATC (Tool cutting edge angle type code)

S - Side lead angle

CEDC (Cutting edge count)

CNSC (Coolant entry style code)

2 - With Coolant entry, radial

CXSC (Coolant exit style code)

6 - With coolant supply (discharge), peripheral/decentralized adjustable

CXSC (Coolant exit style code) / Тип подвода СОЖ

6 - With coolant supply (discharge), peripheral/decentralized adjustable

D1A (Corner radius Pos. A)

0.794 mm

DCC (Design configuration style code)

S - Solid steel, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

CCS05000195

DIN CSW1

VB1604993N

DMIN (Minimum bore diameter)

165 mm

EPSR (Insert included angle)

35 Degree

GAMO (Rake angle orthogonal)

0 Degree

HAND (Cutting direction)

N - Neutral

HF (Functional height)

0 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A (Indicator for ISO cutting plate Pos.A)

ISO

CCS01C0500$$$$

ISO CSW1

ISO$VB1604003******

KAPR (Tool cutting edge angle)

72.5 Degree

LAMS (Inclination angle)

0 Degree

LF (Functional length)

60 mm

LOC-03 ISO

CCS01C0500$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0500

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS05000195

LPR (Protruding length)

60 mm

LTA (Length tool assembly)

60 mm

MIID (Master insert identification)

VBMT160408

OAL (Overall length)

90 mm

WF (Functional width)

0.6 mm

Working process

DDA - External turning,DDB - External and internal turning,DDI - Internal turning,DFA - External form turning,DFI - Internal form turning,DPA - Profiling external,DPI - Profiling internal

WT (Weight of item)

0.504 kg
