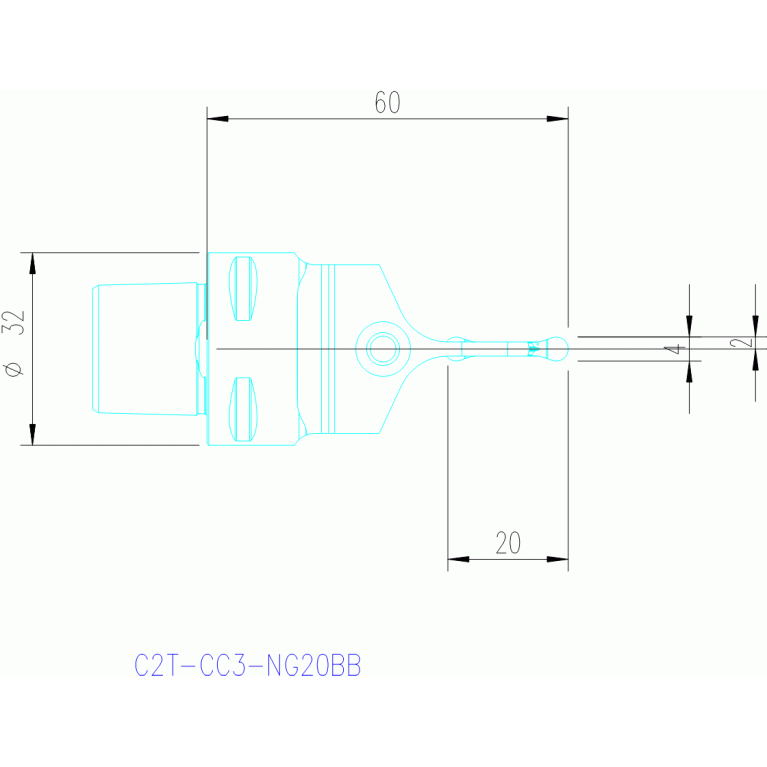

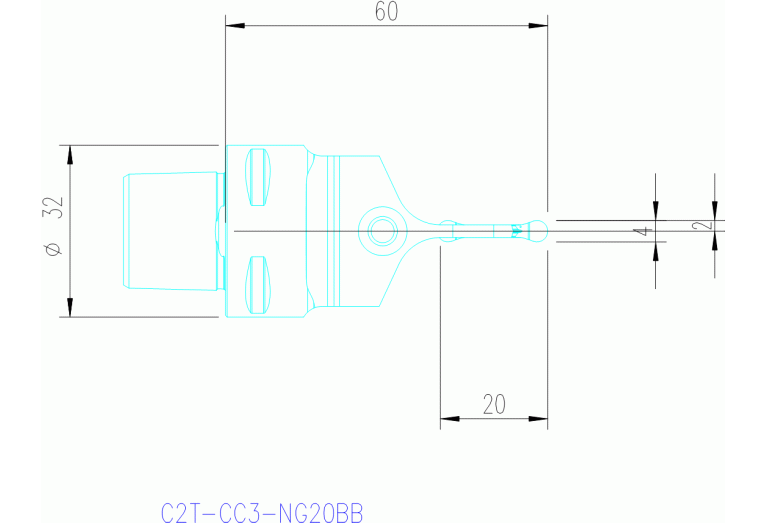

C2T-CC3-NG20BB
C2T-CC3-NG20BB
Артикул:
8571184
В наличии
0 ₽
Характеристики
BI (Block index)
1
C1A (Insert thickness Pos. A)
4.332 mm
CEATC (Tool cutting edge angle type code)
B - Side and front lead angle
CEDC (Cutting edge count)
1
CNSC (Coolant entry style code)
3 - With Coolant entry, axial concentric and radial
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial
D1A (Corner radius Pos. A)
2 mm
DCC (Design configuration style code)
S - Solid steel, no construction features
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2024
DIN
CCS03200195
GAMO (Rake angle orthogonal)
0 Degree
HAND (Cutting direction)
N - Neutral

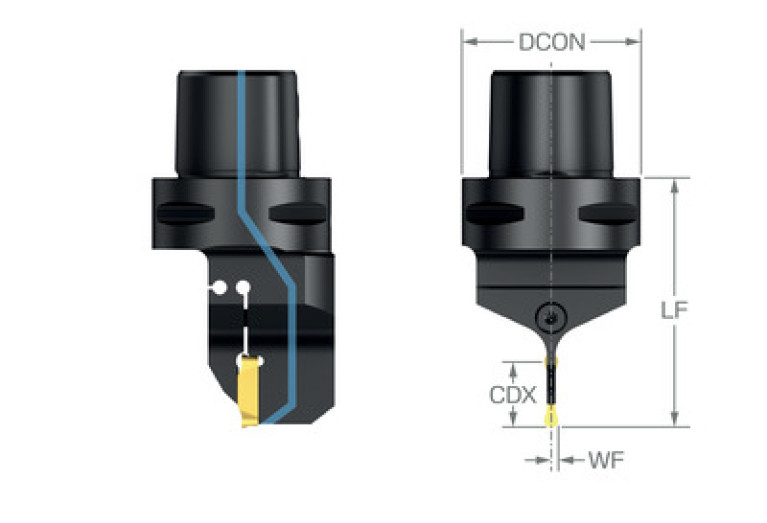

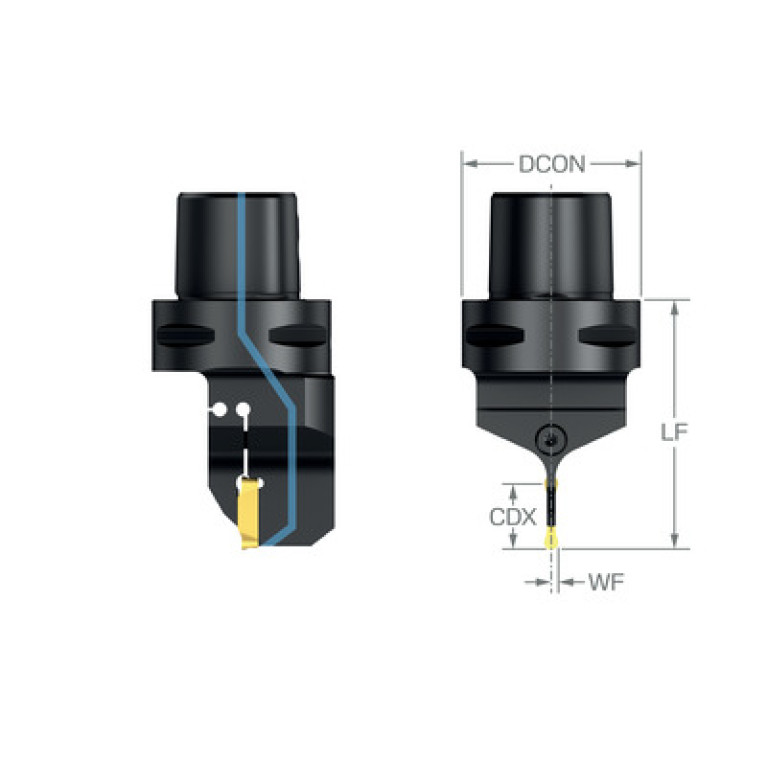

HF (Functional height)
0 mm
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
CCS01C0320$$$$
ISO CSW1
SV$$CCG$E$$$9N**$$$
L (Cutting edge length)
4 mm
LAMS (Inclination angle)
0 Degree
LF (Functional length)
60 mm
LOC-03 ISO
CCS01C0320$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
CCS Coromant Capto System SANDVIK
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
0320
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS03200195
LPR (Protruding length)
60 mm
LTA (Length tool assembly)
60 mm
MIID (Master insert identification)
C2I-G2-0400-RM
OAL (Overall length)
79 mm
WF (Functional width)
2 mm
Working process
DFA - External form turning,DPA - Profiling external
WT (Weight of item)
0.229 kg
