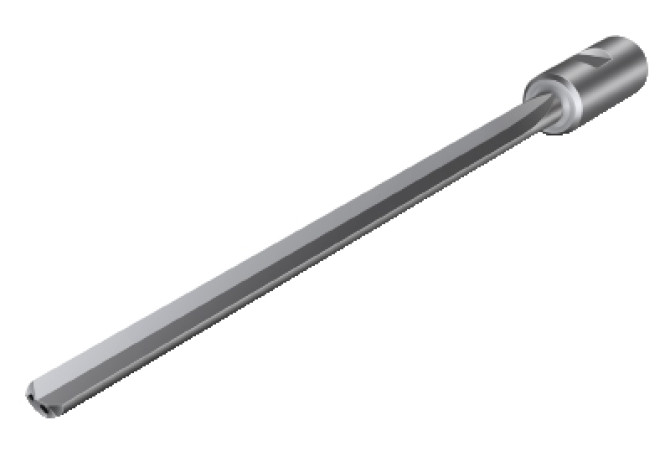

A428.91-01562-28-103K15
A428.91-01562-28-103K15
Артикул:
6277810
В наличии
0 ₽

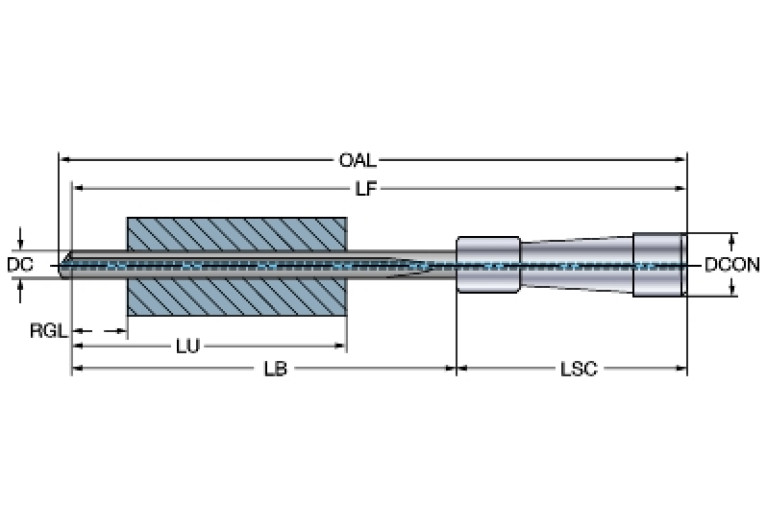

Характеристики
BMC (Body material code)
S - Solid steel
CCONMS (Connection count machine side)
2
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
COATN (Coating)
PVD TIN
CXSC (Coolant exit style code)
1 - With Coolant exit, axial concentric
CXSC (Coolant exit style code) / Тип подвода СОЖ
1 - With Coolant exit, axial concentric
DC (Cutting diameter minimum)
3.967 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
ZYL07505335
FHA (Flute helix angle)
0 Degree
FHH (Flute helix hand)
N - Hand of helix neutral
GEP (Guide element property)
1 - With guide element
GRDMFG (Grade manufacturers designation)
K15
GRDPRIO (Standard designation of the grade main application)
HC
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL53R7500h$06
LCF (Length chip flute)
621 mm
LF (Functional length)
709.34 mm
LOC-03 ISO
ZYL53R7500h$06
LOC-03 (CCFMS Connection code form)
53
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
3 Inch with coolant
LOC-03 (CZCMS Connection size code)
0750
LOC-03 (DCONMS Diameter)
19.05 mm
LOC-03 (TCDCONCDMS Connection tolerance class coded)
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL07505335
LPR (Protruding length)
642.664 mm
LU (Usable length)
615 mm
OAL (Overall length)
711 mm
PL (Point length)
1.664 mm
RPMX (Rotational speed maximum)
24081 1/min
SIG (Point angle 1st step)
100 Degree
TCDCONMS (ISO-tolerance class shank diameter)
h6
Working process
BVB - Drilling
WT (Weight of item)
0.309 kg
