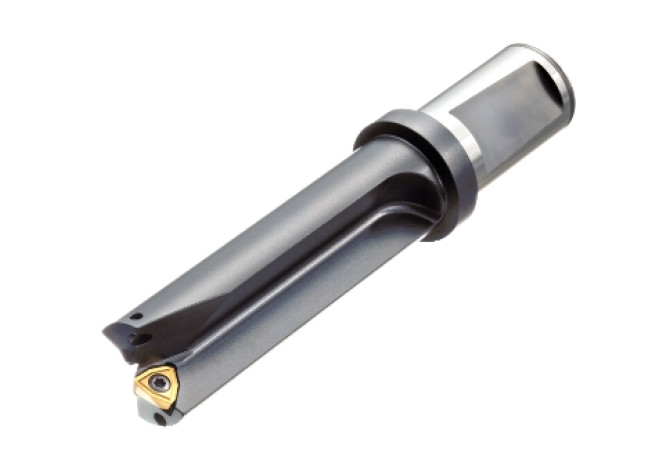

Главная Инструменты 306-01 - Twist drill for indexable inserts R416.01-0320-20-05

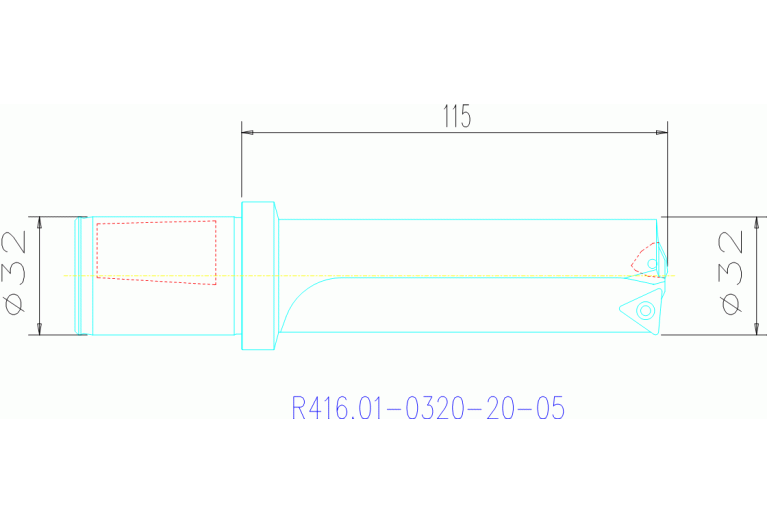

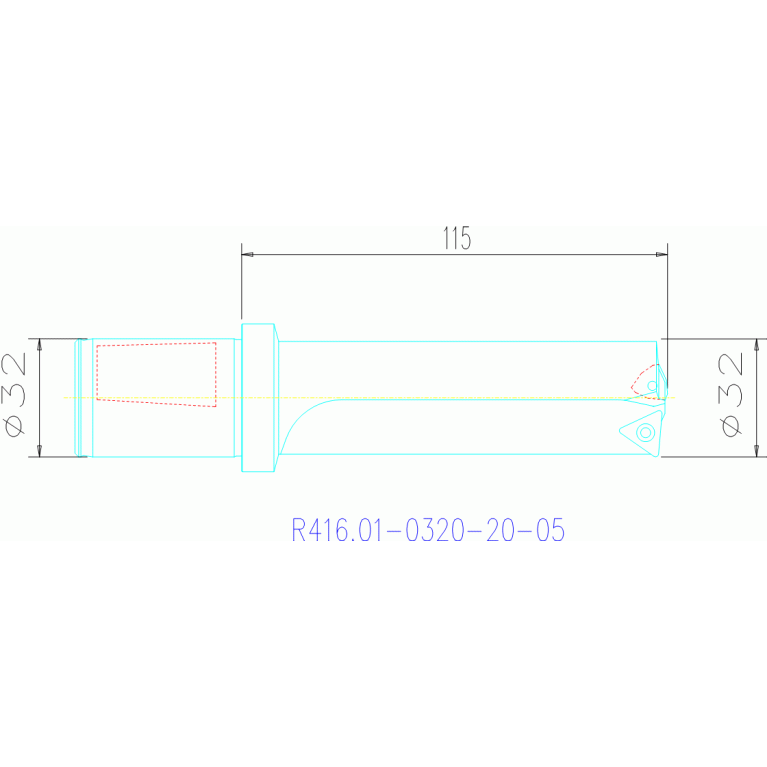

R416.01-0320-20-05

Артикул: 5746321

В наличии

0 ₽

В корзину

Описание

Характеристики

A1A (Cutting edge angle major Pos. A)

80 Degree

A1B (Cutting edge angle major Pos. B)

80 Degree

A2A (Clearance angle major Pos. A)

7 Degree

A2B (Clearance angle major Pos. B)

7 Degree

B3A (Inscribed circle diameter Pos. A)

7.938 mm

B3B (Inscribed circle diameter Pos. B)

7.938 mm

BI (Block index)

BLDA (Tool style code Position A)

BLDB (Tool style code Position B)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

3.175 mm

C1B (Insert thickness Pos. B)

3.175 mm

CCONMS (Connection count machine side)

CEDC (Cutting edge count)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

DC (Cutting diameter minimum)

32 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

ZYL03201315

FDC (Flute design code)

1 - Straight

FHA (Flute helix angle)

0 Degree

FHH (Flute helix hand)

N - Hand of helix neutral

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL13G3200h$06

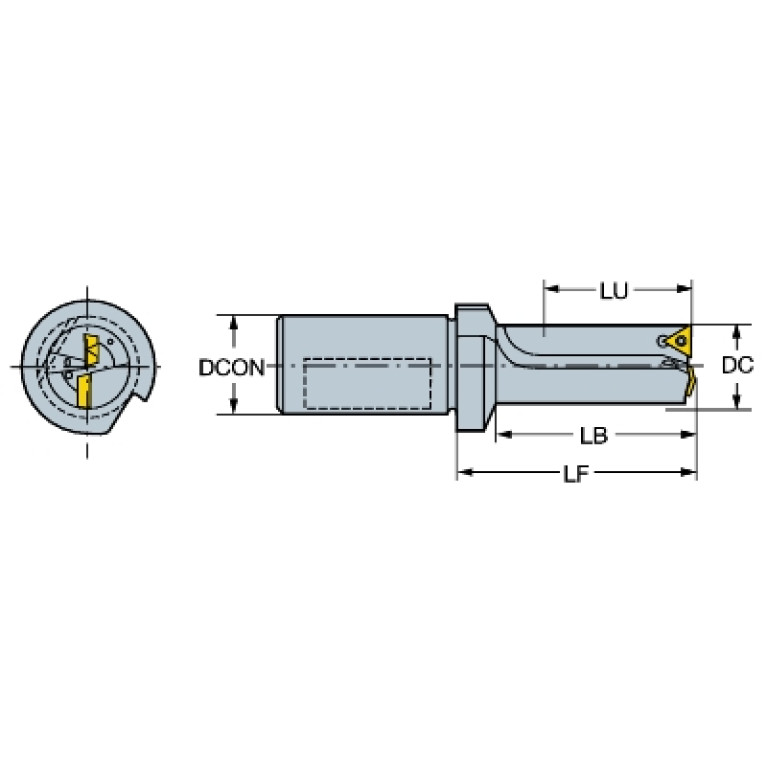

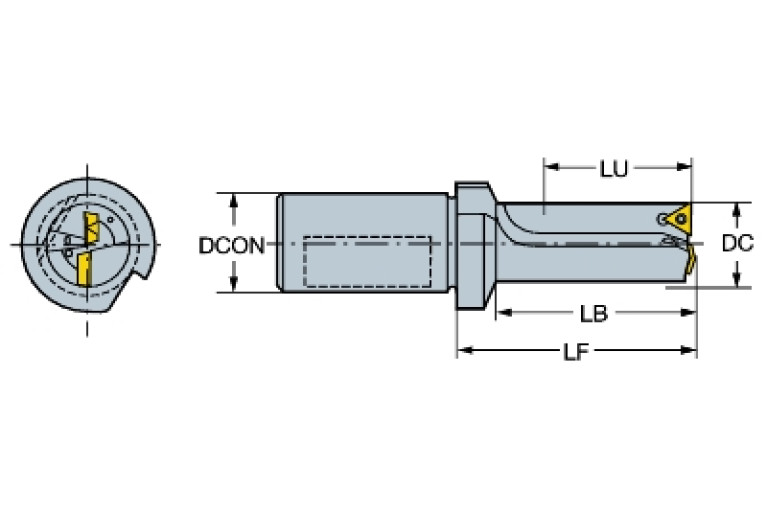

LF (Functional length)

111.16 mm

LOC-03 ISO

ZYL13G3200h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0320

LOC-03 (DCONMS Diameter)

32 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03201315

LPR (Protruding length)

111.16 mm

LS (Shank length)

45 mm

LU (Usable length)

93.84 mm

MIID (Master insert identification)

WCMX0503SR

NOF (Flute count)

NUMBER INSERTS INSIDE (Number of inserts inside)

NUMBER INSERTS OUTSIDE (Number of inserts outside)

OAL (Overall length)

160 mm

PL (Point length)

3.84 mm

RPMX (Rotational speed maximum)

9500 1/min

SIG (Point angle 1st step)

170 Degree

TCDCONMS (ISO-tolerance class shank diameter)

Working process

BVB - Drilling

WT (Weight of item)

0.7 kg
