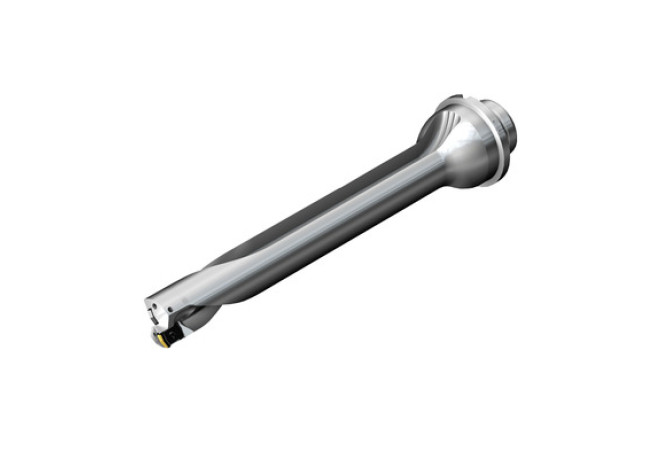

Главная Инструменты 306-01 - Twist drill for indexable inserts DS20-D1600DM20-07

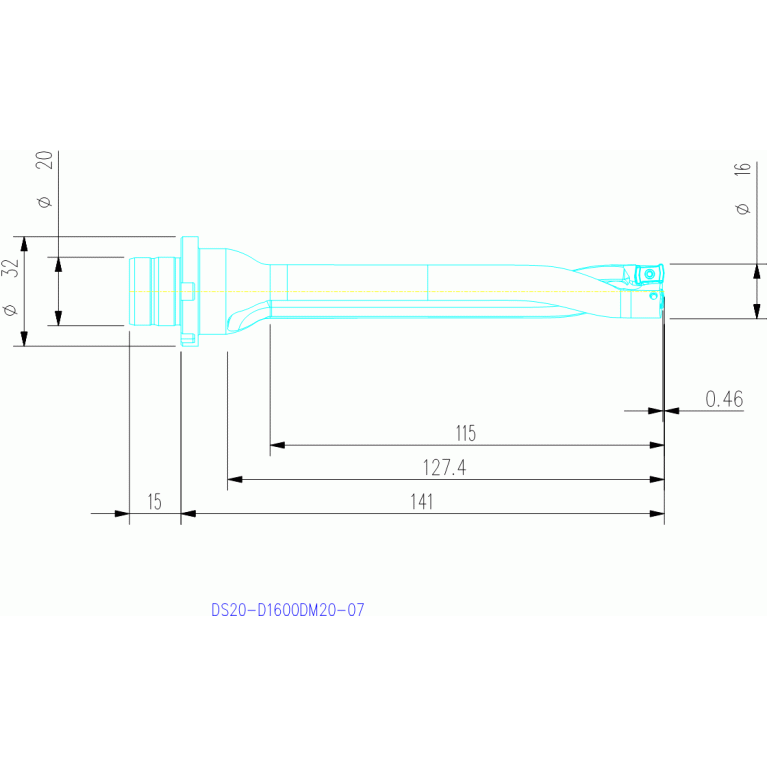

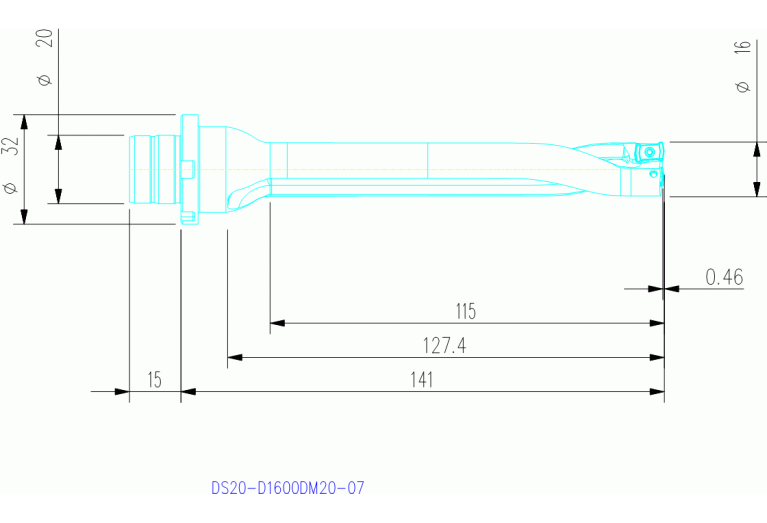

DS20-D1600DM20-07

Артикул: 7755839

В наличии

0 ₽

В корзину

Описание

Характеристики

A1A (Cutting edge angle major Pos. A)

90 Degree

A1B (Cutting edge angle major Pos. B)

90 Degree

B3A (Inscribed circle diameter Pos. A)

6.02 mm

B3B (Inscribed circle diameter Pos. B)

6.02 mm

BI (Block index)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

2.3 mm

C1B (Insert thickness Pos. B)

2.3 mm

CCONMS (Connection count machine side)

CEDC (Cutting edge count)

CNSC (Coolant entry style code)

4 - With Coolant entry, axial on hole circle

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

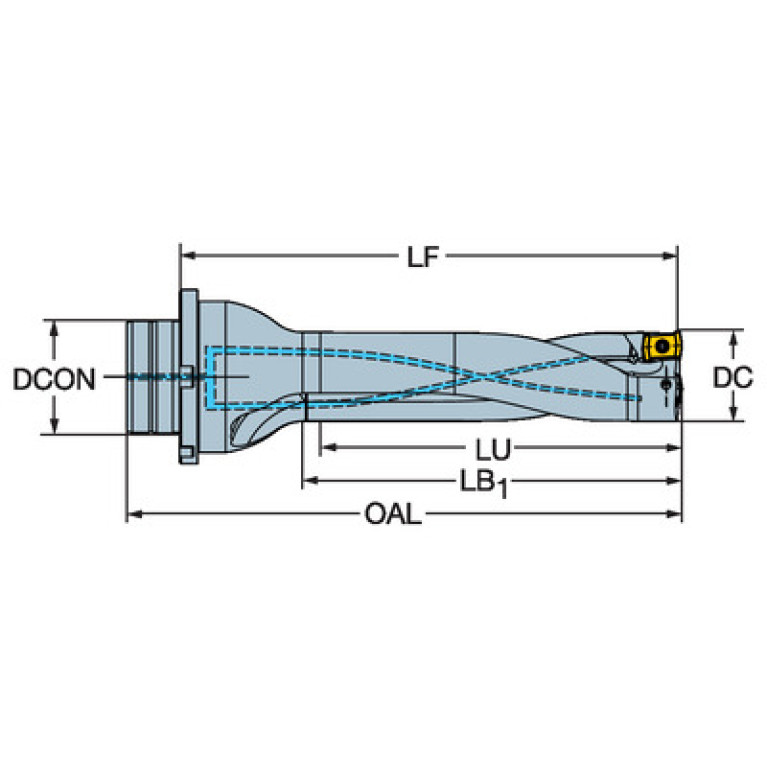

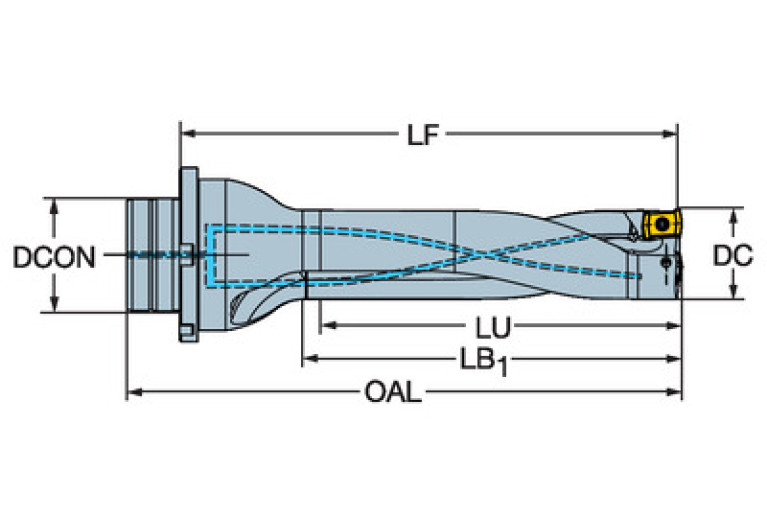

DC (Cutting diameter minimum)

16 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

FLC02001115

FDC (Flute design code)

2 - Unequal helix

FHA (Flute helix angle)

25 Degree

FHH (Flute helix hand)

R - Hand of helix right

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

FLC11A0200$$$$

LCF (Length chip flute)

127.393 mm

LF (Functional length)

140.537 mm

LOC-03 ISO

FLC11A0200$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

FLC Flange mounting SANDVIK Coromant

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0200

LOC-03 (DCONMS Diameter)

20 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FLC02001115

LPR (Protruding length)

140.537 mm

LU (Usable length)

112.463 mm

MIID (Master insert identification)

DS20-0104-P

NOF (Flute count)

NUMBER INSERTS INSIDE (Number of inserts inside)

NUMBER INSERTS OUTSIDE (Number of inserts outside)

OAL (Overall length)

156 mm

PL (Point length)

0.463 mm

RPMX (Rotational speed maximum)

7000 1/min

SIG (Point angle 1st step)

162 Degree

Working process

BVB - Drilling

WT (Weight of item)

0.2 kg
