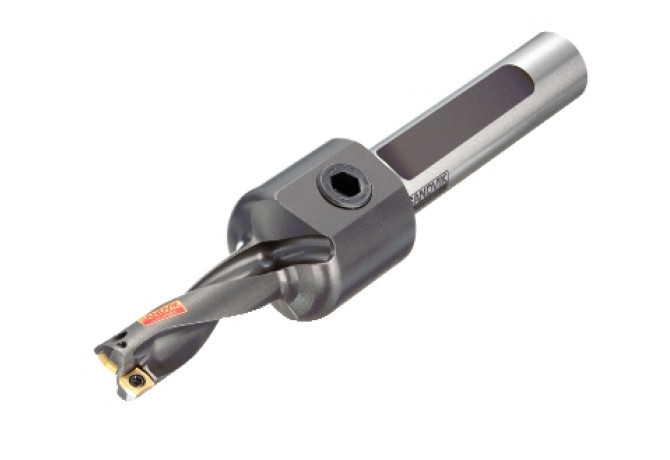

Главная Инструменты 306-01 - Twist drill for indexable inserts A881-D0750P25-03

A881-D0750P25-03

Артикул: 5962397

В наличии

0 ₽

В корзину

Описание

Характеристики

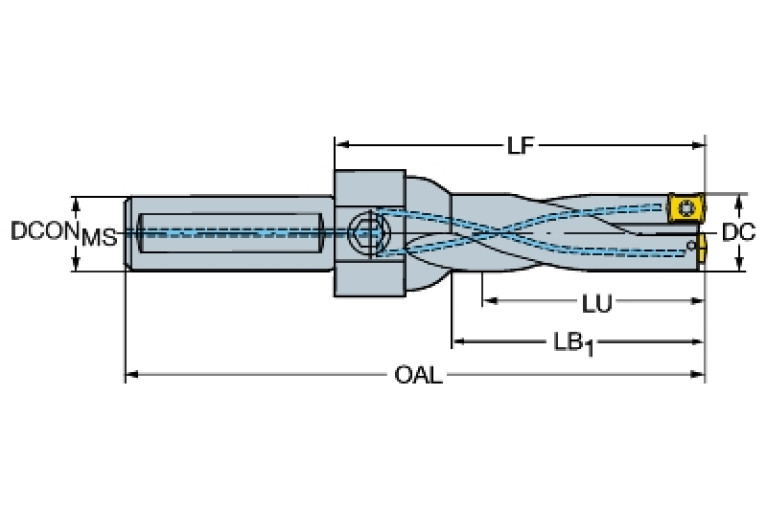

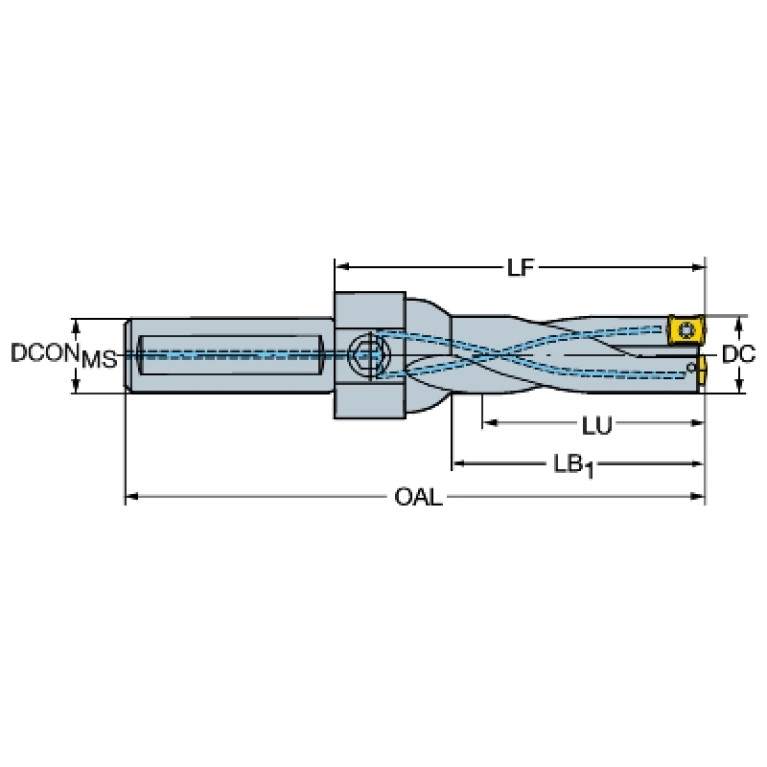

A2A (Clearance angle major Pos. A)

7 Degree

A2B (Clearance angle major Pos. B)

7 Degree

BI (Block index)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

3.175 mm

C1B (Insert thickness Pos. B)

3.175 mm

CCONMS (Connection count machine side)

CEDC (Cutting edge count)

CNSC (Coolant entry style code)

7 - Coolant entry, decentral and axially concentric

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

DC (Cutting diameter minimum)

19.05 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

ZYL10001135

FDC (Flute design code)

3 - Equal helix

FHH (Flute helix hand)

R - Hand of helix right

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL11S1000$$$$

LF (Functional length)

97.268 mm

LOC-03 ISO

ZYL11S1000$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

3 Inch with coolant

LOC-03 (CZCMS Connection size code)

1000

LOC-03 (DCONMS Diameter)

25.4 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL10001135

LPR (Protruding length)

97.268 mm

LS (Shank length)

76.2 mm

LU (Usable length)

57.15 mm

MIID (Master insert identification)

881-030308M-P-GM1

NOF (Flute count)

NUMBER INSERTS INSIDE (Number of inserts inside)

NUMBER INSERTS OUTSIDE (Number of inserts outside)

OAL (Overall length)

153.993 mm

PL (Point length)

0.725 mm

RPMX (Rotational speed maximum)

21500 1/min

SIG (Point angle 1st step)

168 Degree

Working process

BVB - Drilling

WT (Weight of item)

1.65 kg
