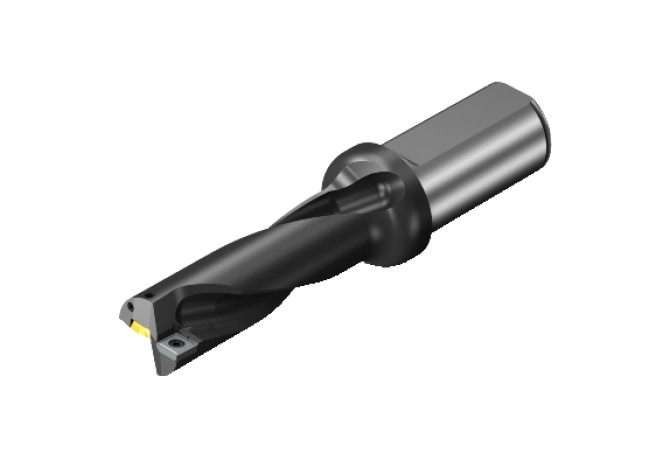

A880-D0812LX25-03
A880-D0812LX25-03
Артикул:
5723696
В наличии
0 ₽

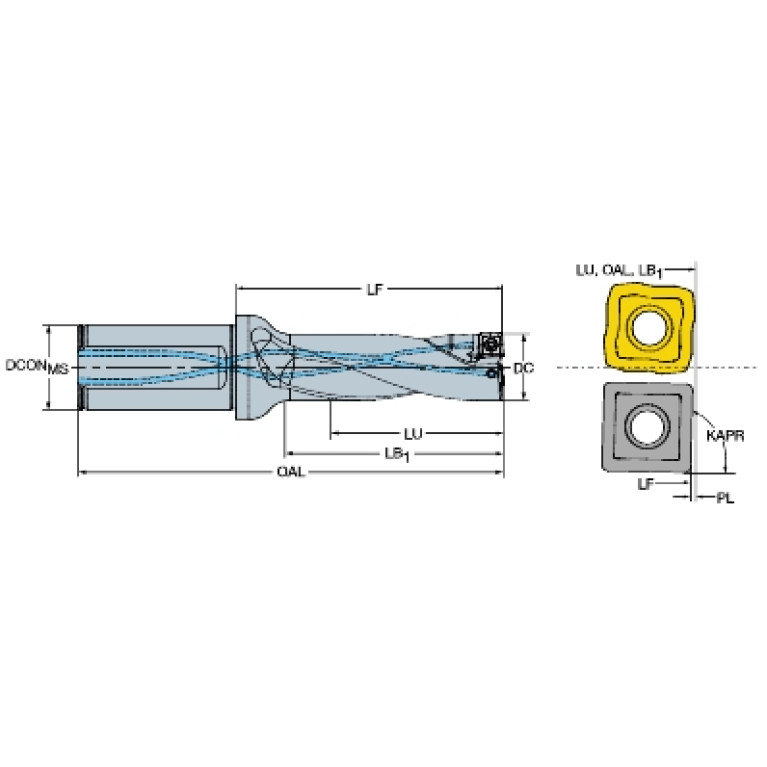

Характеристики
A1A (Cutting edge angle major Pos. A)
90 Degree
A1B (Cutting edge angle major Pos. B)
90 Degree
B3A (Inscribed circle diameter Pos. A)
7.4 mm
B3B (Inscribed circle diameter Pos. B)
7.4 mm
BI (Block index)
1
BLDA (Tool style code Position A)
2
BLDB (Tool style code Position B)
2
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
2.8 mm
C1B (Insert thickness Pos. B)
2.8 mm
CCONMS (Connection count machine side)
2
CEDC (Cutting edge count)
1
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial
DC (Cutting diameter minimum)
20.625 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL10001135
FDC (Flute design code)
3 - Equal helix
FHA (Flute helix angle)
22 Degree
FHH (Flute helix hand)
R - Hand of helix right
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL11S1000h$06
LCF (Length chip flute)
77.964 mm
LF (Functional length)
82.545 mm
LOC-03 ISO
ZYL11S1000h$06
LOC-03 (CCFMS Connection code form)
11
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
3 Inch with coolant
LOC-03 (CZCMS Connection size code)
1000
LOC-03 (DCONMS Diameter)
25.4 mm
LOC-03 (TCDCONCDMS Connection tolerance class coded)
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL10001135
LPR (Protruding length)
82.545 mm
LS (Shank length)
56 mm
LU (Usable length)
62.312 mm
MIID (Master insert identification)
880-040305H-C-GM
NOF (Flute count)
2
NUMBER INSERTS INSIDE (Number of inserts inside)
1
NUMBER INSERTS OUTSIDE (Number of inserts outside)
1
OAL (Overall length)
138.982 mm
PL (Point length)
0.437 mm
RPMX (Rotational speed maximum)
21500 1/min
SIG (Point angle 1st step)
176 Degree
TCDCONMS (ISO-tolerance class shank diameter)
h6
Working process
BVB - Drilling
WT (Weight of item)
0.346 kg
