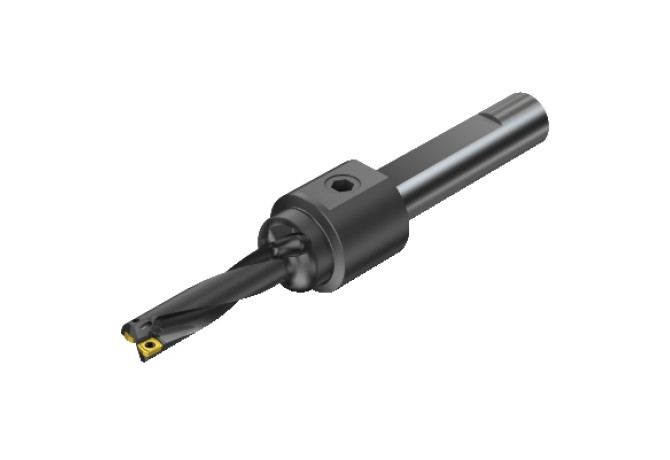

Главная Инструменты 306-01 - Twist drill for indexable inserts A880-D0500P19-04

A880-D0500P19-04

A880-D0500P19-04 A880-D0500P19-04 A880-D0500P19-04 A880-D0500P19-04

A880-D0500P19-04

SV - Sandvik-Coromant
Артикул: 5723459
В наличии
0 ₽
В корзину
Описание
Характеристики
A1A (Cutting edge angle major Pos. A)
97 Degree
A1B (Cutting edge angle major Pos. B)
97 Degree
BI (Block index)
1
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
2.2 mm
C1B (Insert thickness Pos. B)
2.2 mm
CCONMS (Connection count machine side)
2
CEDC (Cutting edge count)
1
CNSC (Coolant entry style code)
7 - Coolant entry, decentral and axially concentric
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial
DC (Cutting diameter minimum)
12.7 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
LA - Soon discontinued
Delivery state valid from
12/1/2023
DIN
ZYL07501135
FDC (Flute design code)
3 - Equal helix
FHA (Flute helix angle)
17.5 Degree
FHH (Flute helix hand)
R - Hand of helix right
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL11R7500$$$$

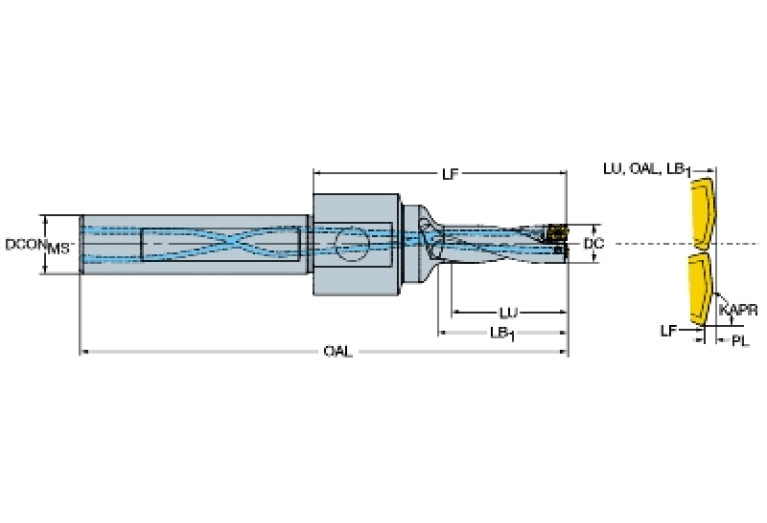

LCF (Length chip flute)
60.56 mm
LF (Functional length)
95.195 mm
LOC-03 ISO
ZYL11R7500$$$$
LOC-03 (CCFMS Connection code form)
11
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
3 Inch with coolant
LOC-03 (CZCMS Connection size code)
0750
LOC-03 (DCONMS Diameter)
19.05 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL07501135
LPR (Protruding length)
95.195 mm
LS (Shank length)
75.7 mm
LU (Usable length)
51.185 mm
MIID (Master insert identification)
880-010203H-C-GR
NOF (Flute count)
2
NUMBER INSERTS INSIDE (Number of inserts inside)
1
NUMBER INSERTS OUTSIDE (Number of inserts outside)
1
OAL (Overall length)
171.78 mm
PL (Point length)
0.385 mm
RPMX (Rotational speed maximum)
22000 1/min
SIG (Point angle 1st step)
158 Degree
Working process
BVB - Drilling
WT (Weight of item)
0.354 kg
