881-D2200C6-03
881-D2200C6-03
Артикул:
5962351
В наличии
0 ₽
Характеристики
A2A (Clearance angle major Pos. A)
7 Degree
A2B (Clearance angle major Pos. B)
7 Degree
BI (Block index)
1
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
3.175 mm
C1B (Insert thickness Pos. B)
3.175 mm
CCONMS (Connection count machine side)
2
CEDC (Cutting edge count)
1
CNSC (Coolant entry style code)
3 - With Coolant entry, axial concentric and radial
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial
DC (Cutting diameter minimum)
22 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
CCS06300195
FDC (Flute design code)
3 - Equal helix
FHH (Flute helix hand)
R - Hand of helix right
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
CCS01C0630$$$$

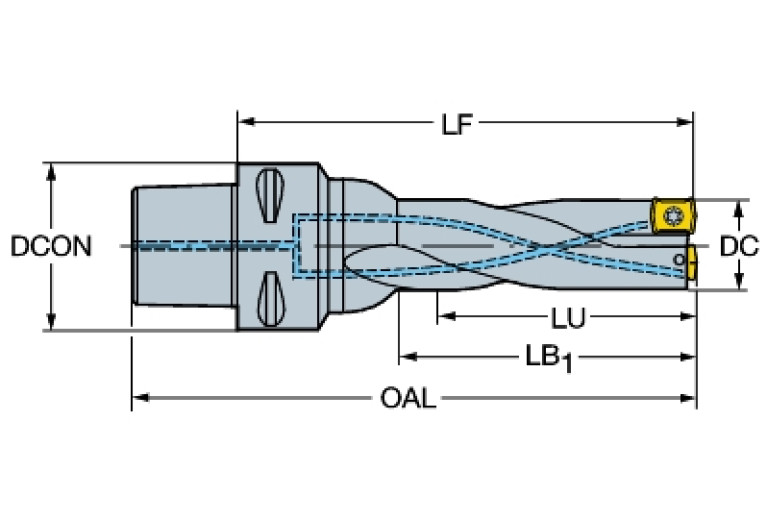

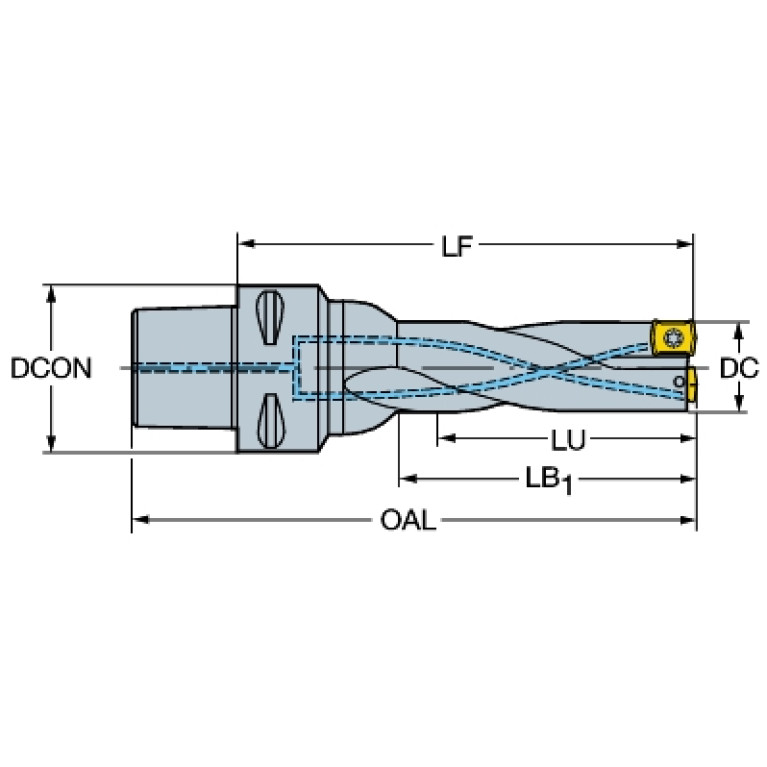

LF (Functional length)
121.129 mm
LOC-03 ISO
CCS01C0630$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
CCS Coromant Capto System SANDVIK
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
0630
LOC-03 (DCONMS Diameter)
63 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS06300195
LPR (Protruding length)
121.129 mm
LU (Usable length)
66 mm
MIID (Master insert identification)
881-040308M-C-GM1
NOF (Flute count)
2
NUMBER INSERTS INSIDE (Number of inserts inside)
1
NUMBER INSERTS OUTSIDE (Number of inserts outside)
1
OAL (Overall length)
160 mm
PL (Point length)
0.871 mm
RPMX (Rotational speed maximum)
16000 1/min
SIG (Point angle 1st step)
158 Degree
Working process
B - Drilling,BVB - Drilling
WT (Weight of item)
1.28 kg
