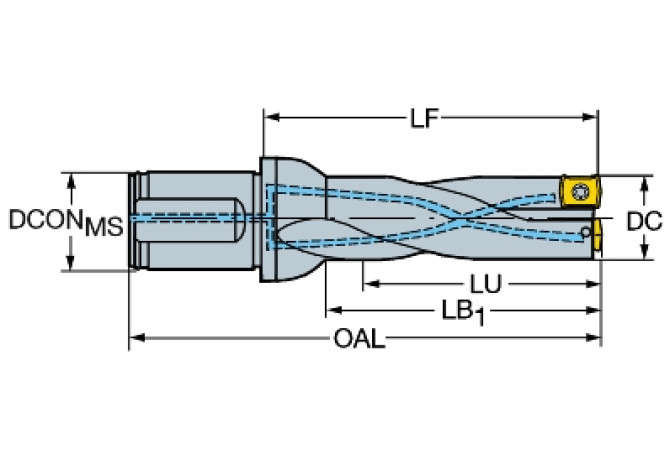

Главная Инструменты 306-01 - Twist drill for indexable inserts 881-D1750L25-03

881-D1750L25-03

Артикул: 5962282

В наличии

0 ₽

В корзину

Описание

Характеристики

A2A (Clearance angle major Pos. A)

7 Degree

A2B (Clearance angle major Pos. B)

7 Degree

BI (Block index)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

3.175 mm

C1B (Insert thickness Pos. B)

3.175 mm

CCONMS (Connection count machine side)

CEDC (Cutting edge count)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

DC (Cutting diameter minimum)

17.5 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL02501115

FDC (Flute design code)

3 - Equal helix

FHH (Flute helix hand)

R - Hand of helix right

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL11G2500h$06

LF (Functional length)

71.275 mm

LOC-03 ISO

ZYL11G2500h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0250

LOC-03 (DCONMS Diameter)

25 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02501115

LPR (Protruding length)

71.275 mm

LS (Shank length)

56 mm

LU (Usable length)

53 mm

MIID (Master insert identification)

LCMX03..

NOF (Flute count)

NUMBER INSERTS INSIDE (Number of inserts inside)

NUMBER INSERTS OUTSIDE (Number of inserts outside)

OAL (Overall length)

128 mm

PL (Point length)

0.725 mm

RPMX (Rotational speed maximum)

21500 1/min

SIG (Point angle 1st step)

158 Degree

TCDCONMS (ISO-tolerance class shank diameter)

Working process

BVB - Drilling

WT (Weight of item)

0.358 kg
