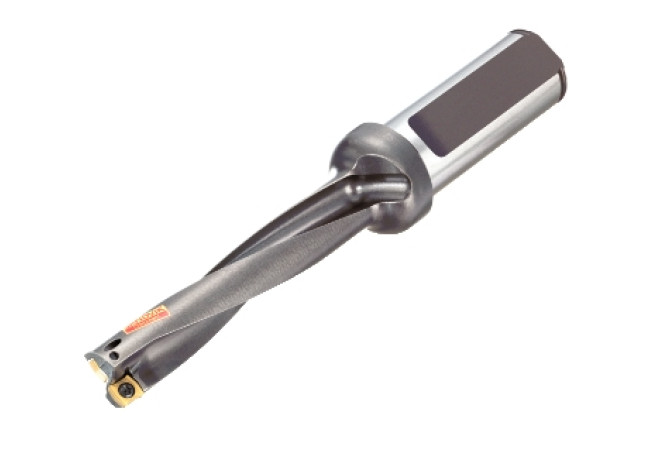

881-D1450L20-05
881-D1450L20-05
Артикул:
5962224
В наличии
0 ₽
Характеристики
A2A (Clearance angle major Pos. A)
7 Degree
A2B (Clearance angle major Pos. B)
7 Degree
BI (Block index)
1
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
2.381 mm
C1B (Insert thickness Pos. B)
2.381 mm
CCONMS (Connection count machine side)
2
CEDC (Cutting edge count)
1
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial
DC (Cutting diameter minimum)
14.5 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
LA - Soon discontinued
Delivery state valid from
12/1/2023
DIN
ZYL02001115
FDC (Flute design code)
3 - Equal helix
FHH (Flute helix hand)
R - Hand of helix right
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL11G2000h$06

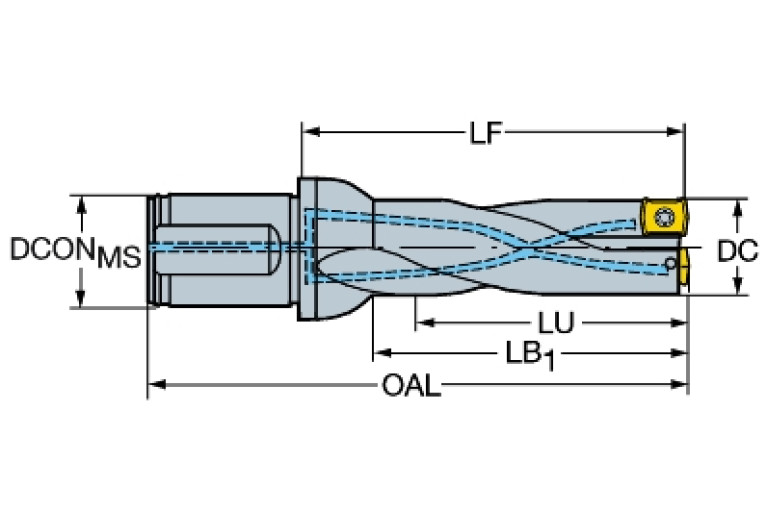

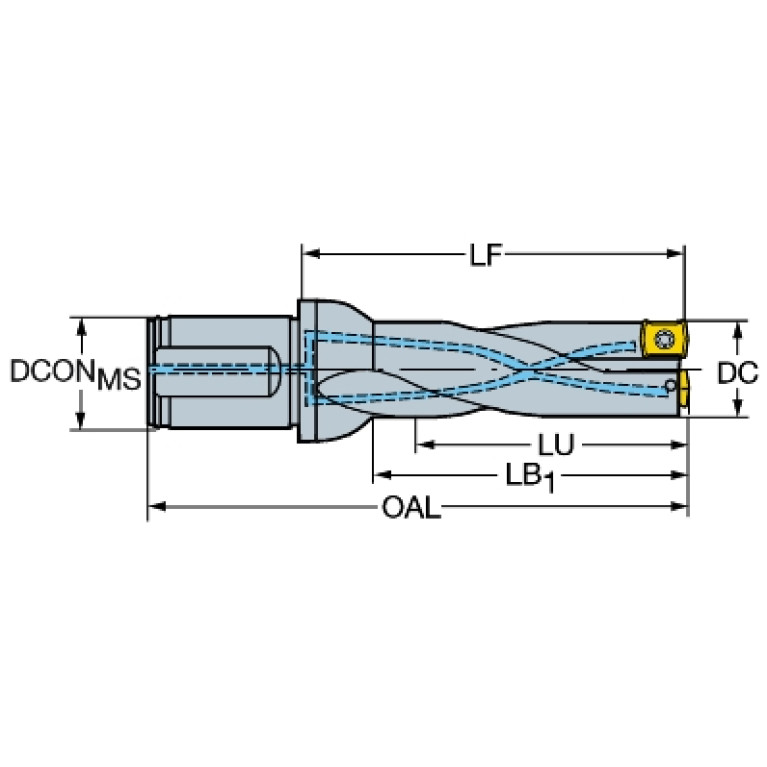

LF (Functional length)
88.728 mm
LOC-03 ISO
ZYL11G2000h$06
LOC-03 (CCFMS Connection code form)
11
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
1 Metric with coolant
LOC-03 (CZCMS Connection size code)
0200
LOC-03 (DCONMS Diameter)
20 mm
LOC-03 (TCDCONCDMS Connection tolerance class coded)
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02001115
LPR (Protruding length)
88.728 mm
LS (Shank length)
50 mm
LU (Usable length)
73 mm
MIID (Master insert identification)
881-020204M-P-GM1
NOF (Flute count)
2
NUMBER INSERTS INSIDE (Number of inserts inside)
1
NUMBER INSERTS OUTSIDE (Number of inserts outside)
1

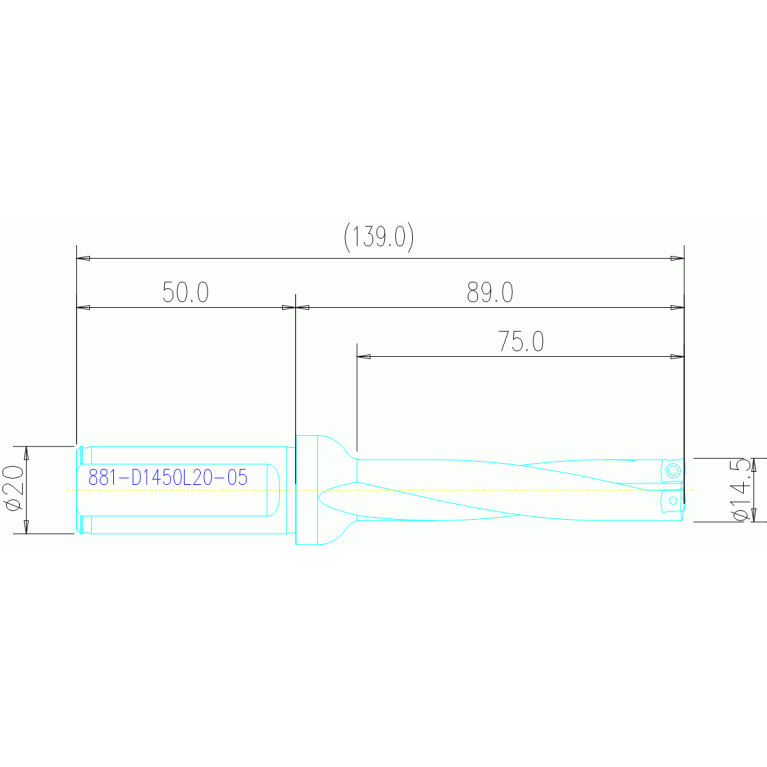

OAL (Overall length)
139 mm
PL (Point length)
0.272 mm
RPMX (Rotational speed maximum)
13500 1/min
SIG (Point angle 1st step)
156 Degree
TCDCONMS (ISO-tolerance class shank diameter)
h6
Working process
BVB - Drilling
WT (Weight of item)
0.233 kg
