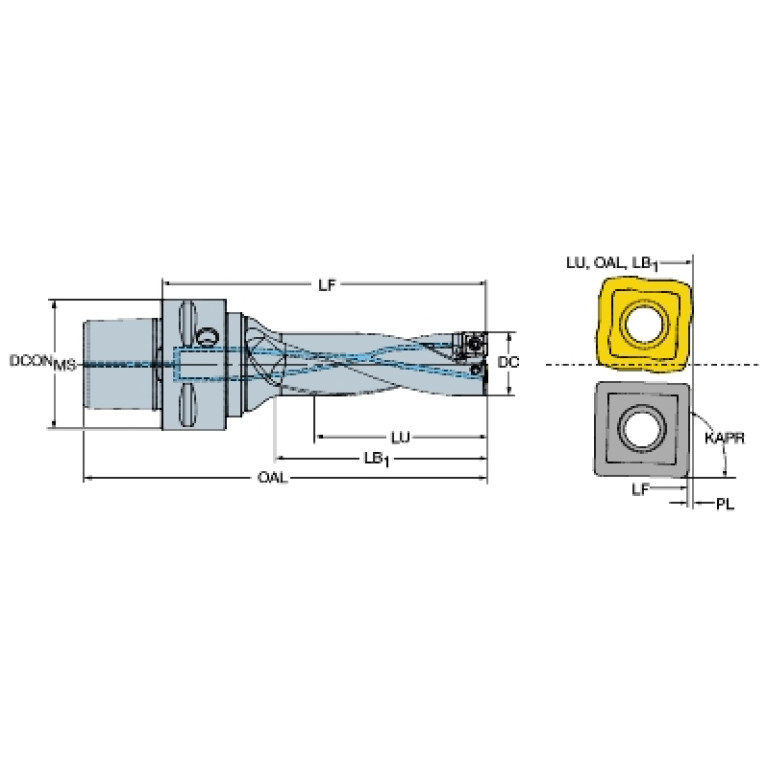

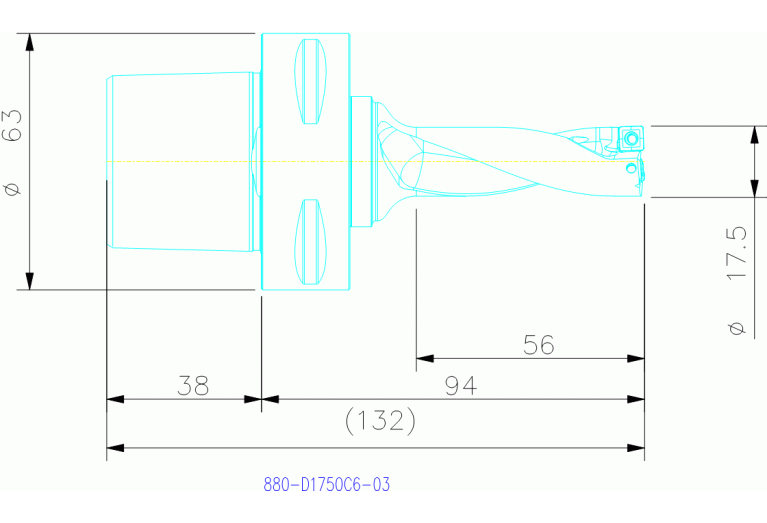

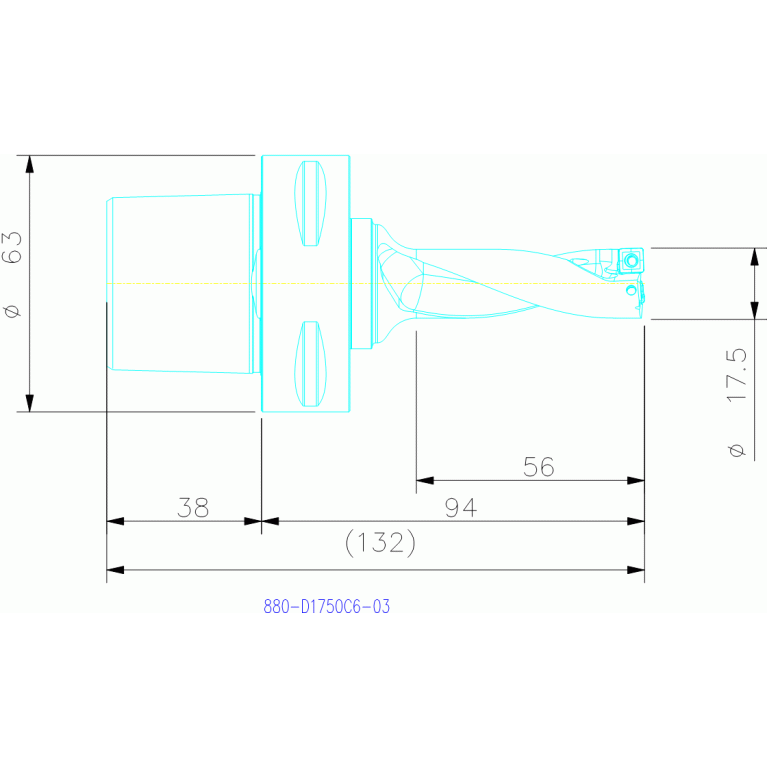

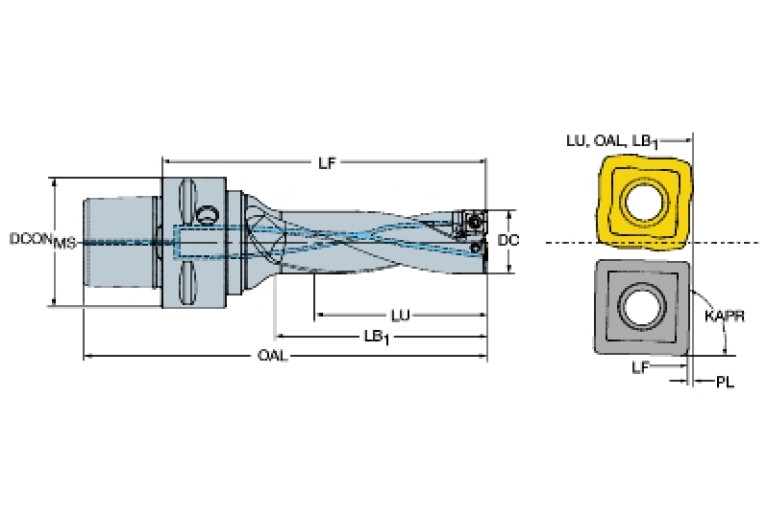

Главная Инструменты 306-01 - Twist drill for indexable inserts 880-D1750C6-03

880-D1750C6-03

Артикул: 5765255

В наличии

0 ₽

В корзину

Описание

Характеристики

A1A (Cutting edge angle major Pos. A)

90 Degree

A1B (Cutting edge angle major Pos. B)

90 Degree

B3A (Inscribed circle diameter Pos. A)

5.7 mm

B3B (Inscribed circle diameter Pos. B)

5.7 mm

BI (Block index)

BLDA (Tool style code Position A)

BLDB (Tool style code Position B)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

2.6 mm

C1B (Insert thickness Pos. B)

2.6 mm

CCONMS (Connection count machine side)

CEDC (Cutting edge count)

CNSC (Coolant entry style code)

3 - With Coolant entry, axial concentric and radial

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

DC (Cutting diameter minimum)

17.5 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

CCS06300195

FDC (Flute design code)

3 - Equal helix

FHA (Flute helix angle)

22 Degree

FHH (Flute helix hand)

R - Hand of helix right

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

CCS01C0630$$$$

LCF (Length chip flute)

66.1 mm

LF (Functional length)

93.629 mm

LOC-03 ISO

CCS01C0630$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0630

LOC-03 (DCONMS Diameter)

63 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS06300195

LPR (Protruding length)

93.629 mm

LU (Usable length)

52.871 mm

MIID (Master insert identification)

880-030305H-C-GM

NOF (Flute count)

NUMBER INSERTS INSIDE (Number of inserts inside)

NUMBER INSERTS OUTSIDE (Number of inserts outside)

OAL (Overall length)

132 mm

PL (Point length)

0.371 mm

RPMX (Rotational speed maximum)

30000 1/min

SIG (Point angle 1st step)

176 Degree

Working process

BVB - Drilling

WT (Weight of item)

0.852 kg
