Главная Инструменты 201-08 - Hexagonal insert HNGX 09 05 20-KM K20D

HNGX 09 05 20-KM K20D

Артикул: 5733157

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

0 Degree

AS (Clearance angle wiper edge)

0 Degree

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

SV-NI0905DN

EPSR (Insert included angle)

120 Degree

GAN (Insert rake angle)

8 Degree

GRDMFG (Grade manufacturers designation)

K20D

GRDPRIO (Standard designation of the grade main application)

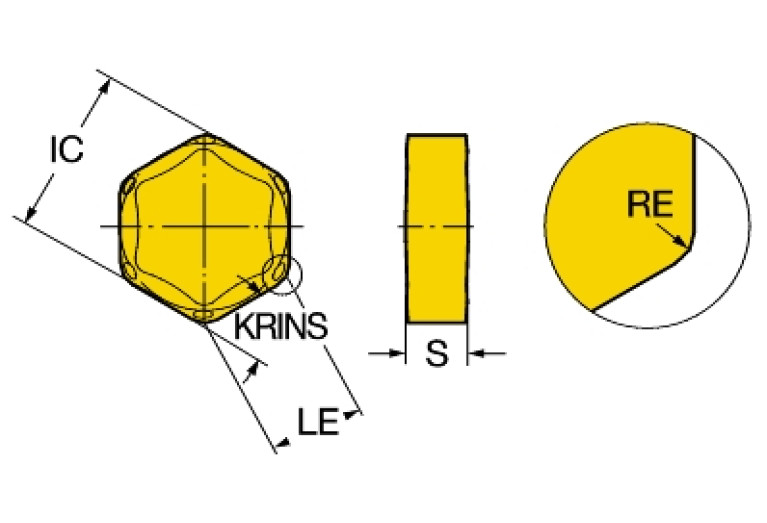

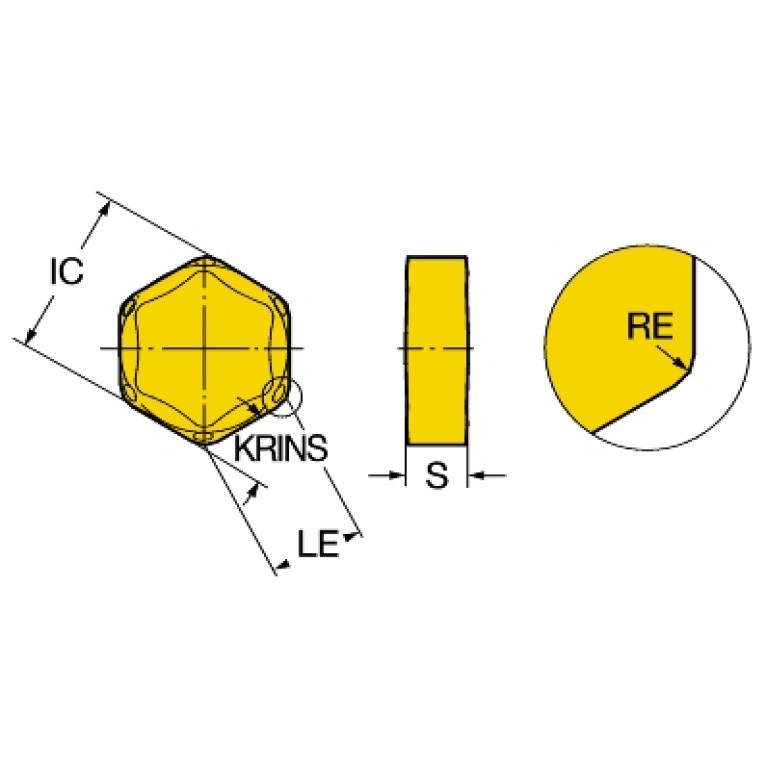

IC (Inscribed circle diameter)

16.2 mm

IFS (Insert mounting style code)

1 - Without bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$NI0905201NADN20

L (Cutting edge length)

9.353 mm

LE (Cutting edge effective length)

9 mm

LOC-03 ISO

SV$$NI0905201NADN20

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SV-NI0905DN

Materials

MIID (Master insert identification)

HNGX090520 K20D

NOI (Insert index count)

RE (Corner radius)

2 mm

S (Insert thickness)

5.56 mm

S1 (Insert thickness total)

5.56 mm

STDDES (Standard designation)

HNGX090520

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.018 kg
