Главная Инструменты 201-08 - Hexagonal insert HNEF 09 05 08-KM 1020

HNEF 09 05 08-KM 1020

Артикул: 6169450

В наличии

0 ₽

В корзину

Описание

Характеристики

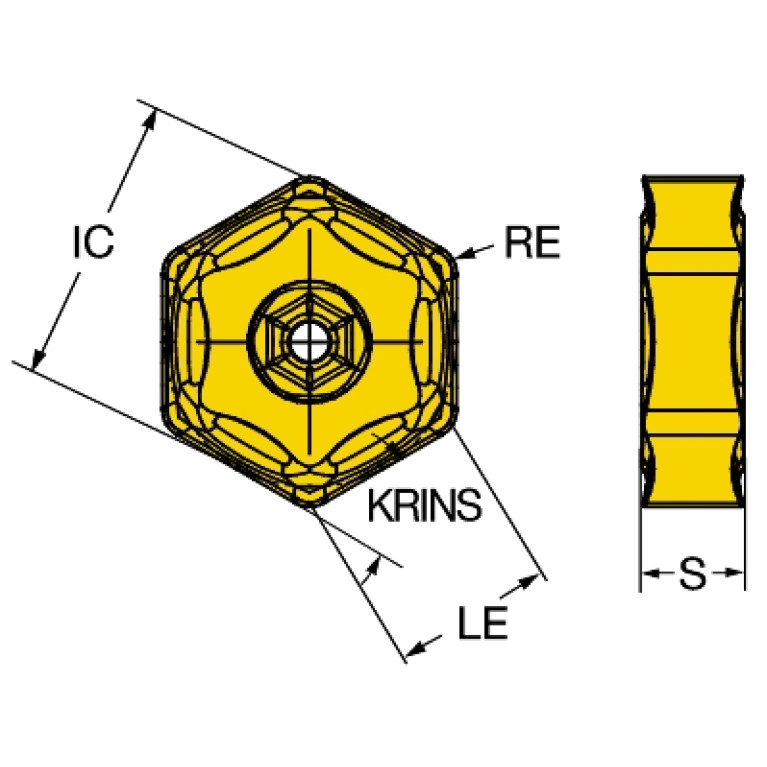

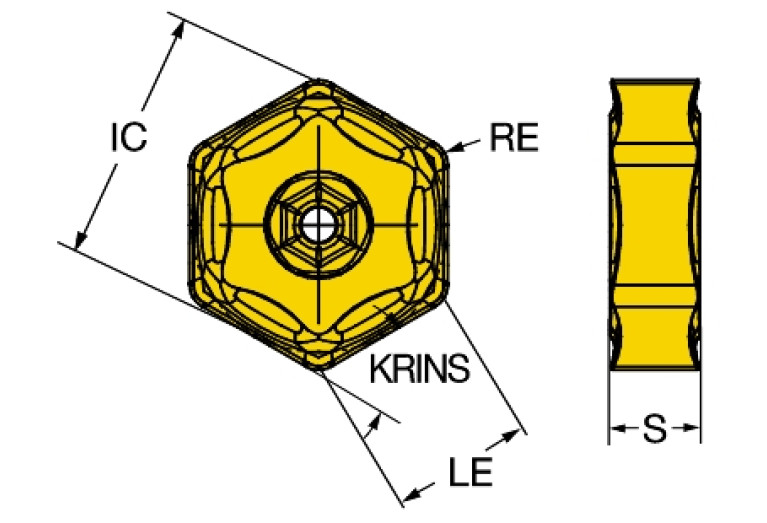

AN (Clearance angle major)

0 Degree

AS (Clearance angle wiper edge)

0 Degree

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

PVD TiAlN

D1 (Fixing hole diameter)

2.2 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

SV-NI0905DN

EPSR (Insert included angle)

120 Degree

GAN (Insert rake angle)

15 Degree

GRDMFG (Grade manufacturers designation)

1020

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

16.2 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$NI0905083NBDN08

L (Cutting edge length)

9.353 mm

LE (Cutting edge effective length)

8.9 mm

LOC-03 ISO

SV$$NI0905083NBDN08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SV-NI0905DN

Materials

MIID (Master insert identification)

HNEF090508 1020

NOI (Insert index count)

RE (Corner radius)

0.8 mm

S (Insert thickness)

5.56 mm

S1 (Insert thickness total)

5.56 mm

STDDES (Standard designation)

HNEF090508

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.018 kg
