Главная Инструменты 201-08 - Hexagonal insert HNEF 09 05 04-KL K20M

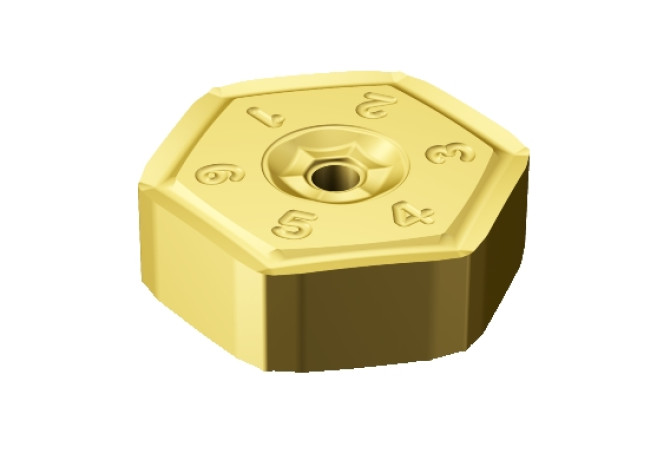

HNEF 09 05 04-KL K20M

HNEF 09 05 04-KL K20M HNEF 09 05 04-KL K20M HNEF 09 05 04-KL K20M

HNEF 09 05 04-KL K20M

SV - Sandvik-Coromant
Артикул: 6169445
В наличии
0 ₽
В корзину
Описание
Характеристики
AN (Clearance angle major)
0 Degree
AS (Clearance angle wiper edge)
0 Degree
BS (Wiper edge length)
1.6 mm
CBMD (Chip breaker manufacturers designation)
KL
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
CVD TiCN+Al2O3+TiN
D1 (Fixing hole diameter)
2.2 mm
Delivery state
LA - Soon discontinued
Delivery state valid from
12/1/2023
DIN
SV-NI0905DN
EPSR (Insert included angle)
120 Degree
GAN (Insert rake angle)
10 Degree
GRDMFG (Grade manufacturers designation)
K20M
GRDPRIO (Standard designation of the grade main application)
HC
IC (Inscribed circle diameter)
16.2 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
1
ISO
SV$$NI0905043NBDN04
KRINS (Cutting edge angle major)
60 Degree
L (Cutting edge length)
9.353 mm
LE (Cutting edge effective length)
9.4 mm
LOC-03 ISO
SV$$NI0905043NBDN04
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SV-NI0905DN
Materials
K
MIID (Master insert identification)
HNEF090504 K20M
NOI (Insert index count)
12
RE (Corner radius)
0.4 mm
S (Insert thickness)
5.56 mm
S1 (Insert thickness total)
5.56 mm
STDDES (Standard designation)
HNEF090504
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
E
Working process
No working processes available
WT (Weight of item)
0.018 kg
