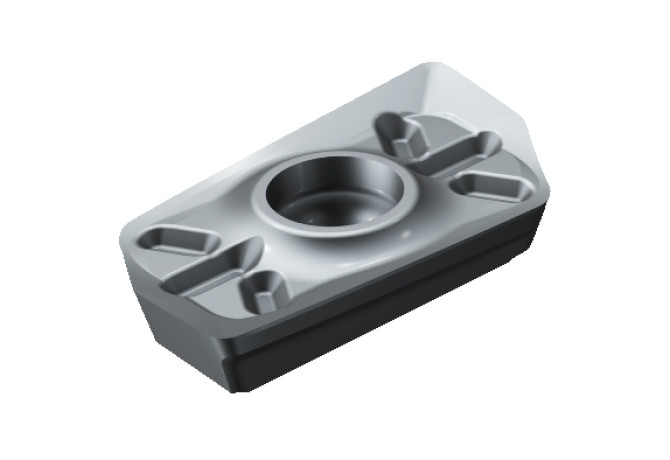

R790-160405PH-NL H13A
R790-160405PH-NL H13A
Артикул:
5747155
В наличии
0 ₽
Характеристики
AN (Clearance angle major)
20 Degree

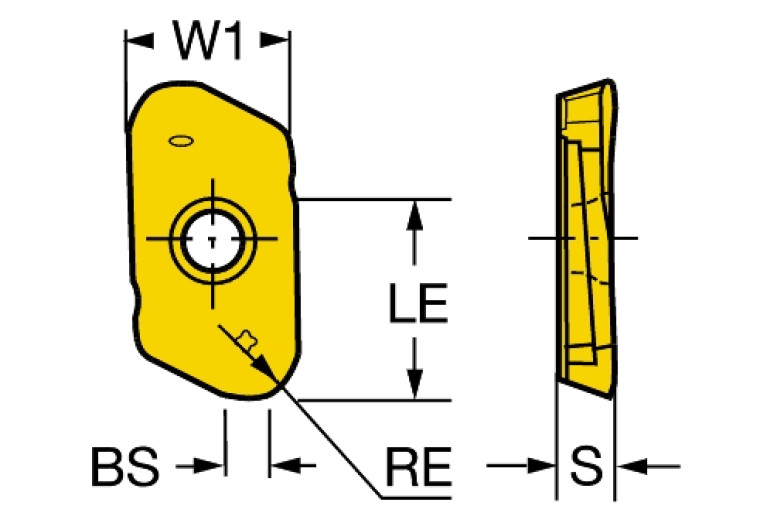

BS (Wiper edge length)
1 mm
CBMD (Chip breaker manufacturers designation)
NL
CECC (Cutting edge condition code)
F - Sharpedged
D1 (Fixing hole diameter)
4.1 mm
Delivery state valid from
12/1/2023
DIN
SV-ML160400
GRDMFG (Grade manufacturers designation)
H13A
GRDPRIO (Standard designation of the grade main application)
HW
IC (Inscribed circle diameter)
11 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
R - Right
Interface codes
J6 / J441
ISISO (ISO property)
ISO
SV$$ML1604$$3RB$$$$
KRINS (Cutting edge angle major)
90 Degree
LE (Cutting edge effective length)
16 mm
LOC-03 ISO
SV$$ML1604$$3RB$$$$
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SV-ML160400
Materials
N
NOI (Insert index count)
2
RE (Corner radius)
0.5 mm
S (Insert thickness)
4 mm
S1 (Insert thickness total)
4 mm
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
H
W1 (Insert width)
11 mm
Working process
No working processes available
WT (Weight of item)
0.007 kg
