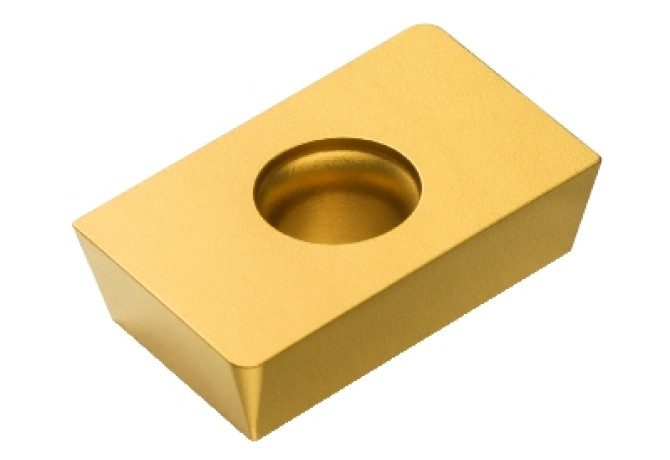

Главная Инструменты 201-05 - Parallelogram-shaped insert R216.2-08 02 04-2A 235

R216.2-08 02 04-2A 235

Артикул: 5742840

В наличии

0 ₽

В корзину

Описание

Характеристики

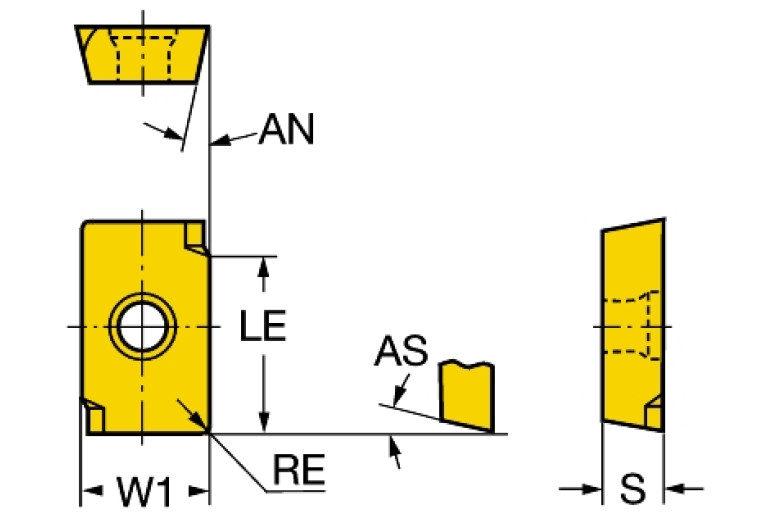

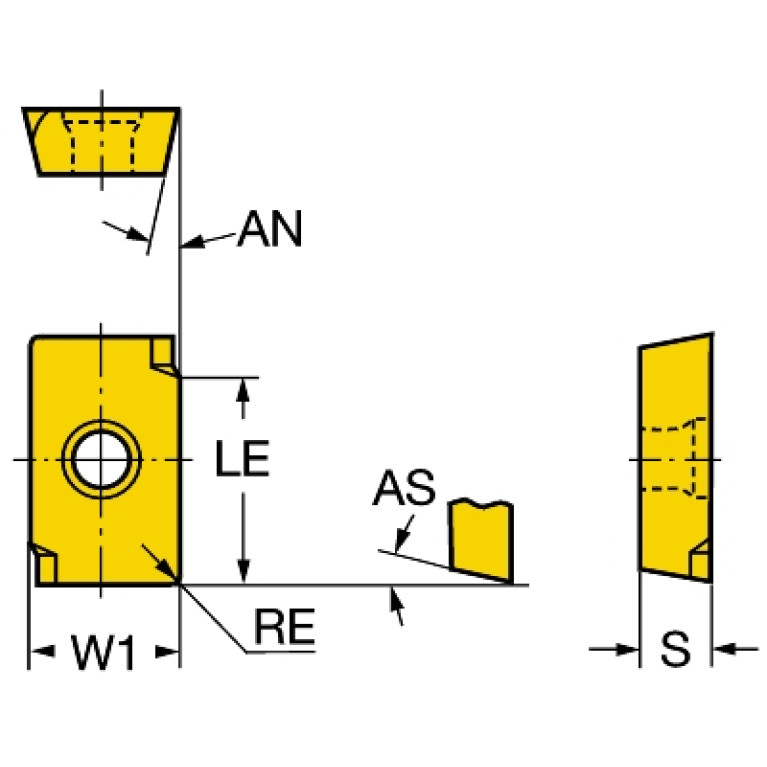

AN (Clearance angle major)

11 Degree

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+TiN

D1 (Fixing hole diameter)

2.9 mm

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

SV-MZ0802C2

EPSR (Insert included angle)

87 Degree

GRDMFG (Grade manufacturers designation)

235

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

6.65 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

R - Right

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$MZ0802$$3RBC2$$

LE (Cutting edge effective length)

8.2 mm

LOC-03 ISO

SV$$MZ0802$$3RBC2$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SV-MZ0802C2

Materials

P,M

NOI (Insert index count)

RE (Corner radius)

0.4 mm

S (Insert thickness)

2.381 mm

S1 (Insert thickness total)

2.381 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

W1 (Insert width)

6.65 mm

Working process

No working processes available

WT (Weight of item)

0.002 kg
