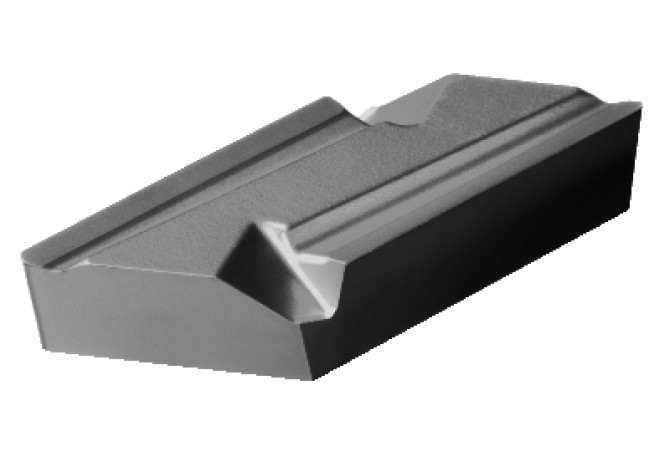

Главная Инструменты 201-05 - Parallelogram-shaped insert KNUX 16 04 05L11 H13A

KNUX 16 04 05L11 H13A

Артикул: 5733220

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

0 Degree

CB (Chip breaker face count)

0 - Without chip breaker

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

KN1604051L

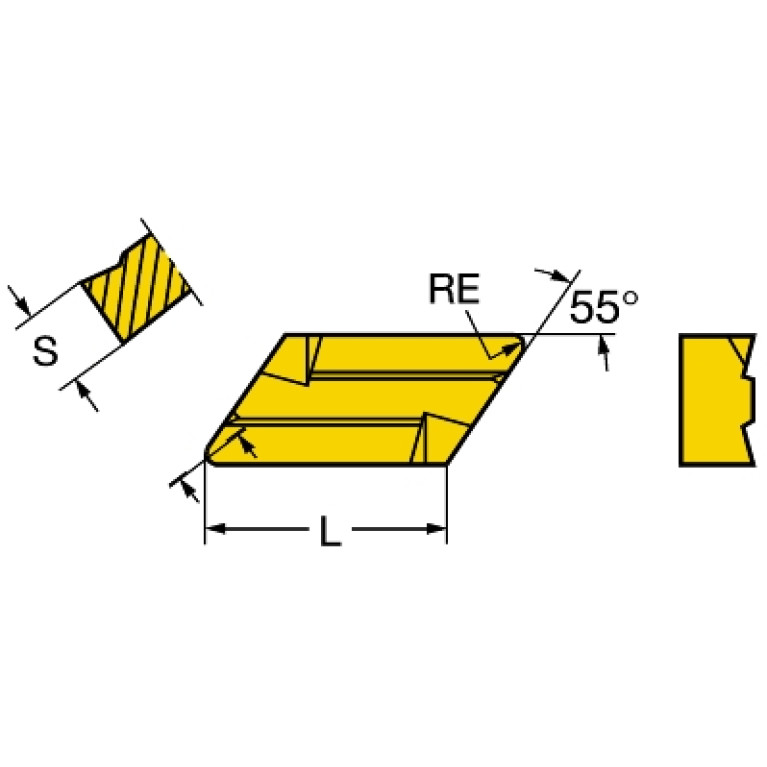

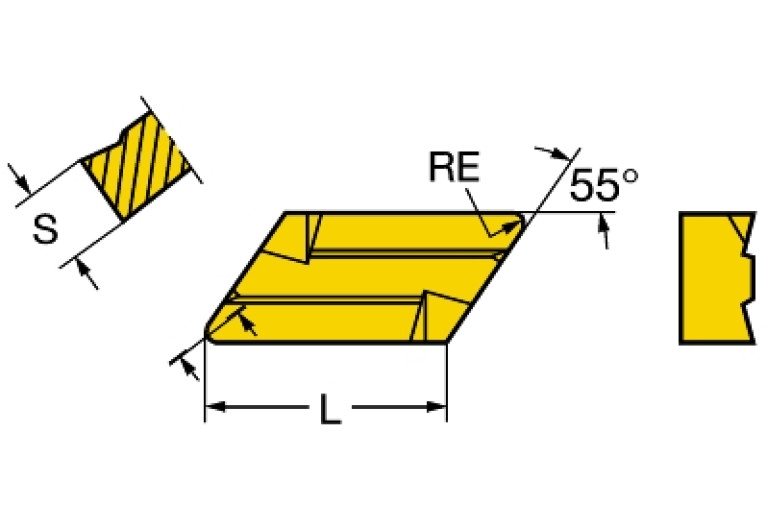

EPSR (Insert included angle)

55 Degree

GRDMFG (Grade manufacturers designation)

H13A

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

9.525 mm

IFS (Insert mounting style code)

1 - Without bore

IH (Insert hand)

L - Left

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$KN1604051LA$$05

L (Cutting edge length)

16.5 mm

LE (Cutting edge effective length)

16 mm

LOC-03 ISO

ISO$KN1604051LA$$05

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

KN1604051L

Materials

P,M,K,N,S

MIID (Master insert identification)

KNUX160405 H13A

NOI (Insert index count)

RE (Corner radius)

0.5 mm

S (Insert thickness)

4.763 mm

S1 (Insert thickness total)

4.763 mm

STDDES (Standard designation)

KNUX160405

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

U - Not treated

W1 (Insert width)

9.525 mm

Working process

No working processes available

WT (Weight of item)

0.013 kg
