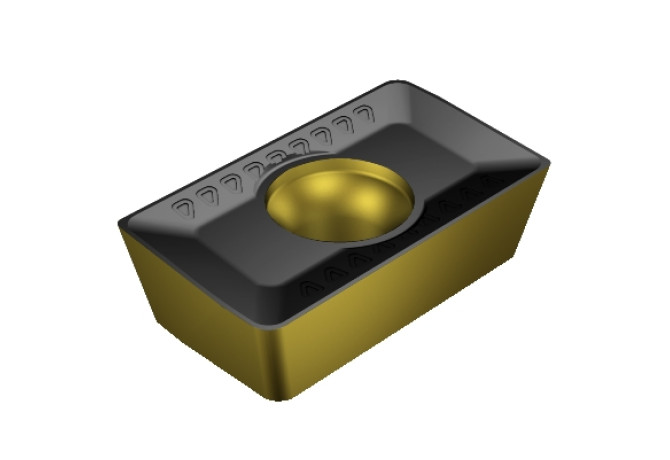

Главная Инструменты 201-05 - Parallelogram-shaped insert APMT 16 04 08-M 4340

APMT 16 04 08-M 4340

Артикул: 7564465

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

11 Degree

CBMD (Chip breaker manufacturers designation)

WHX

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3+TiN

D1 (Fixing hole diameter)

4.4 mm

Delivery state valid from

12/1/2023

DIN

SV-MM160400

EPSR (Insert included angle)

85 Degree

GRDMFG (Grade manufacturers designation)

4340

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

9.52 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$MM1604$$3NB$$$$

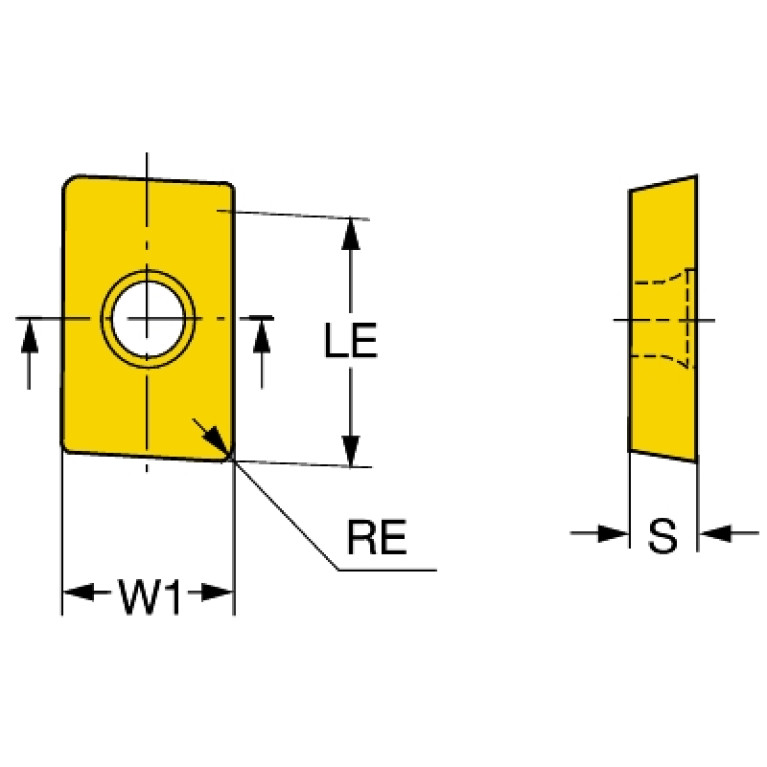

LE (Cutting edge effective length)

16 mm

LOC-03 ISO

SV$$MM1604$$3NB$$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SV-MM160400

Materials

P,M,K

MIID (Master insert identification)

APMT160408 4340

NOI (Insert index count)

RE (Corner radius)

0.8 mm

S (Insert thickness)

4.763 mm

S1 (Insert thickness total)

4.763 mm

STDDES (Standard designation)

APMT160408

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

W1 (Insert width)

9.52 mm

Working process

No working processes available

WT (Weight of item)

0.008 kg
