800-05 03 08M-I-G 4235
800-05 03 08M-I-G 4235
Артикул:
6336350
В наличии
0 ₽
Характеристики

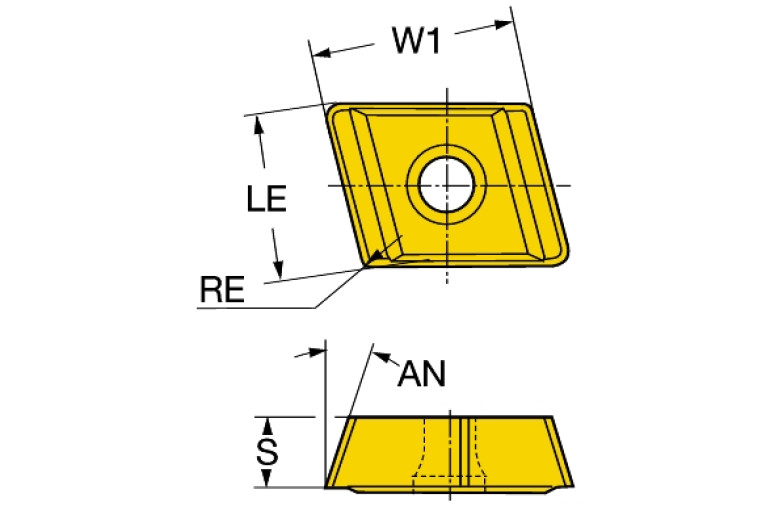

AN (Clearance angle major)
17 Degree
CBMD (Chip breaker manufacturers designation)
G
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
CVD TICN+AL2O3+TIN
D1 (Fixing hole diameter)
2.5 mm
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
SV-DF0503I0
EPSR (Insert included angle)
85 Degree
GAN (Insert rake angle)
18 Degree
GRDMFG (Grade manufacturers designation)
4235
GRDPRIO (Standard designation of the grade main application)
HC
IC (Inscribed circle diameter)
5.56 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
R - Right
Interface codes
J6 / J441
ISISO (ISO property)
ISO
SV$$DF0503$$3RBI$$$
LOC-03 ISO
SV$$DF0503$$3RBI$$$
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SV-DF0503I0
NOI (Insert index count)
2
RE (Corner radius)
0.8 mm
S (Insert thickness)
3.175 mm
S1 (Insert thickness total)
3.175 mm
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
M
W1 (Insert width)
5.56 mm
Working process
No working processes available
WT (Weight of item)
0.001 kg
