Главная Инструменты 202-09 - Lay-down threading insert, triangle shape, three cutting edges, multiple teeth 266RL-16MM03A100M 1125

266RL-16MM03A100M 1125

Артикул: 5758000

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

0 Degree

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

PVD TiAlN

D1 (Fixing hole diameter)

4.4 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

SV-TC16T3BI

EPSR (Insert included angle)

60 Degree

GRDMFG (Grade manufacturers designation)

1125

GRDPRIO (Standard designation of the grade main application)

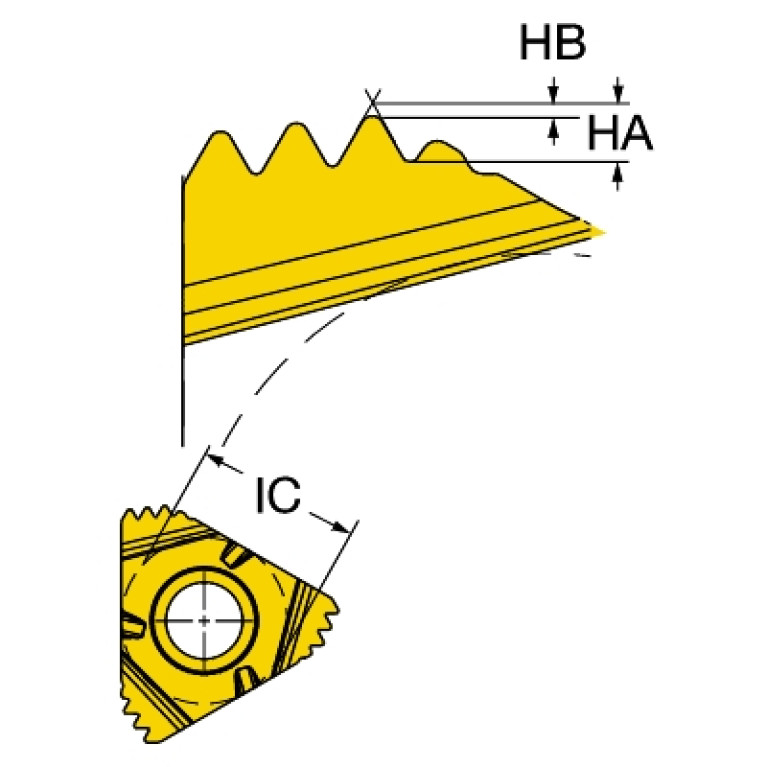

IC (Inscribed circle diameter)

9.525 mm

IFS (Insert mounting style code)

0 - Various

IH (Insert hand)

R - Right

Interface codes

J6 / J61

ISO

SV$$TC16T3$$8$BBI$$

LOC-03 ISO

SV$$TC16T3$$8$BBI$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SV-TC16T3BI

Materials

P,M,K,N,S

NOF (Flute count)

NT (Tooth count)

PAL (Profile angle left hand)

30 Degree

PAR (Profile angle right hand)

30 Degree

PDX (Profile distance X)

2.4 mm

PDY (Profile distance Y)

1.593 mm

PFS (Profile form)

S (Insert thickness)

3.969 mm

S1 (Insert thickness total)

3.969 mm

TCE (Tipped cutting edge code)

THFT (Thread form type)

M60

TPN (Thread pitch minimum)

1 mm

TPT (Thread profile type)

V - Full profile

TTP (Thread type)

I - Internal thread

Working process

EGI - Threading, internal

WT (Weight of item)

0.004 kg
