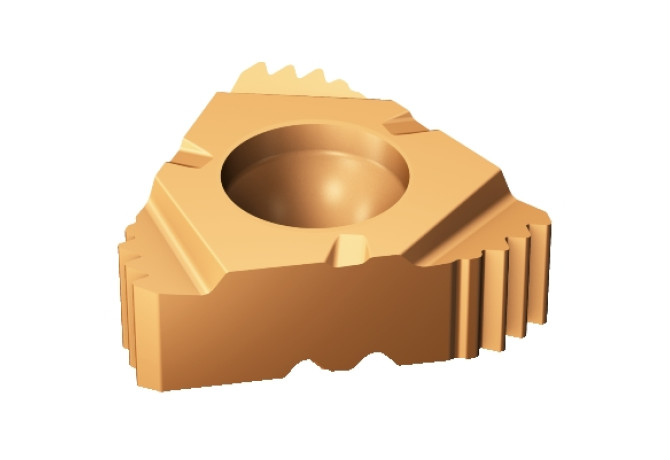

266RG-16WH03A190M 1125
266RG-16WH03A190M 1125
Артикул:
5781968
В наличии
0 ₽
Характеристики
AN (Clearance angle major)
0 Degree
CBMD (Chip breaker manufacturers designation)
A
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
PVD TiAlN
D1 (Fixing hole diameter)
4.4 mm
Delivery state valid from
12/1/2023
DIN
SV-TC16T3AE
EPSR (Insert included angle)
60 Degree
GRDMFG (Grade manufacturers designation)
1125
GRDPRIO (Standard designation of the grade main application)
HC
IC (Inscribed circle diameter)
9.525 mm
IFS (Insert mounting style code)
0 - Various
IH (Insert hand)
R - Right
Interface codes
J6 / J61
ISO
SV$$TC16T3$$8$BAE$$
LOC-03 ISO
SV$$TC16T3$$8$BAE$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SV-TC16T3AE
Materials
P,M,K,N,S
NOF (Flute count)
3
NT (Tooth count)
3
PAL (Profile angle left hand)
27.5 Degree
PAR (Profile angle right hand)
27.5 Degree
PDX (Profile distance X)
3.3 mm
PDY (Profile distance Y)
2.018 mm
PFS (Profile form)
8
S (Insert thickness)
3.969 mm
S1 (Insert thickness total)
3.969 mm
TCE (Tipped cutting edge code)
S
THFT (Thread form type)
WH55
TPIN (Threads per inch minimum)
19
TPT (Thread profile type)
V - Full profile
TTP (Thread type)
A - External thread
Working process
EGA - Threading, external
WT (Weight of item)
0.004 kg
