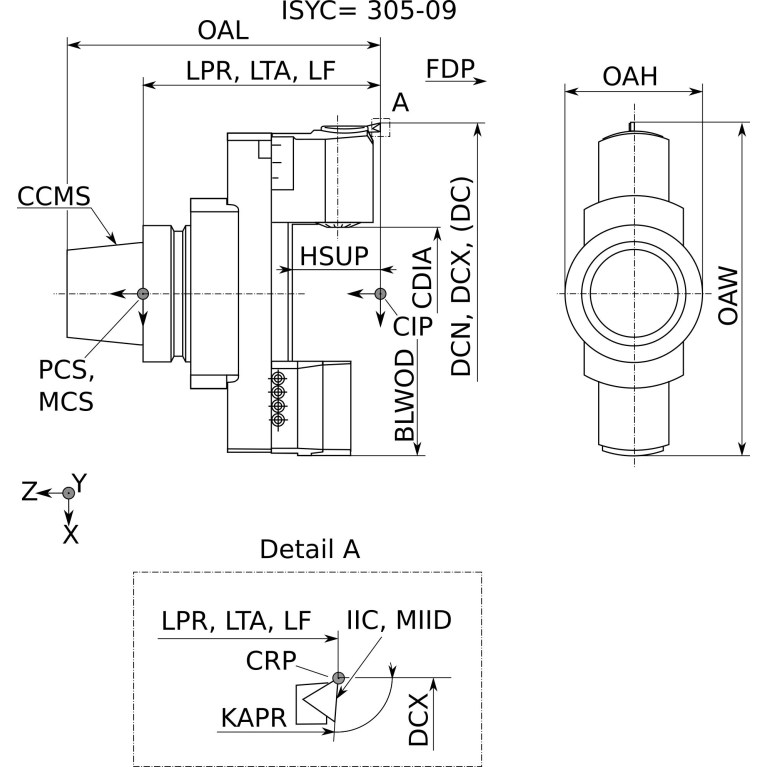

Главная Инструменты 305-09 - Assembled single point bridge tool 825-23TC06-A18

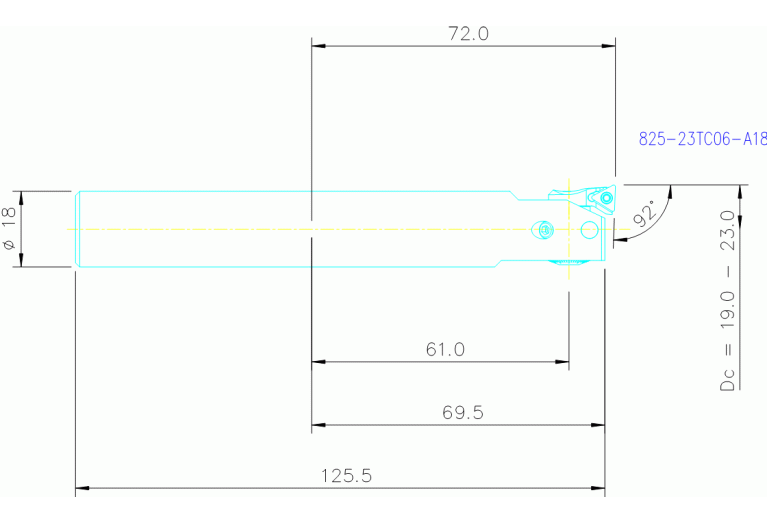

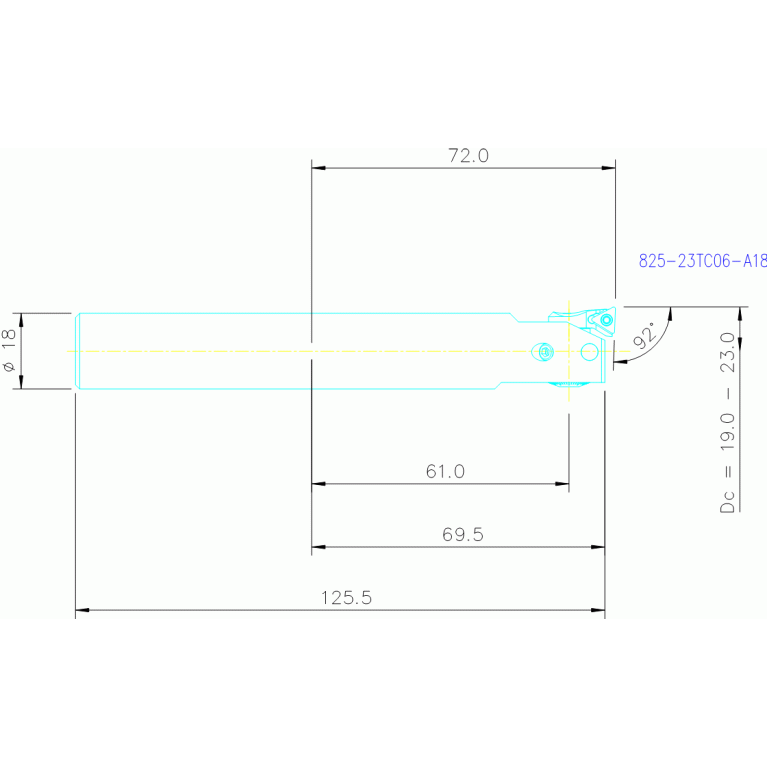

825-23TC06-A18

Артикул: 6352202

В наличии

0 ₽

В корзину

Описание

Характеристики

ADJBY (Adjustment property)

1 - Radial adjustment possible

ADJIN (Adjustment increment axial)

0.1 mm

ADJRGA (Adjustment range axial)

2 mm

BDX (Body diameter maximum)

18 mm

BMC (Body material code)

S - Solid steel

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

DCN (Cutting diameter minimum)

19 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

23 mm

Delivery state valid from

12/1/2023

DIN

ZYL01800115

DIN CSW1

TC06T1043L

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A (Indicator for ISO cutting plate Pos.A)

ISO

ZYL01G1800g$06

ISO CSW1

ISO$TC06T1003L***04

KAPR (Tool cutting edge angle)

92 Degree

LF (Functional length)

128 mm

LOC-01 ISO

ISO$TC06T1003L***04

LOC-01-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 01)

LOC-01-DIN

TC06T1043L

LOC-03 ISO

ZYL01G1800g$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0180

LOC-03 (DCONMS Diameter)

18 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

g$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01800115

LPR (Protruding length)

128 mm

MIID (Master insert identification)

TCMT06T102

OAL (Overall length)

128 mm

RPMX (Rotational speed maximum)

20104 1/min

TCDCONMS (ISO-tolerance class shank diameter)

Working process

BAB - Open by boring

WT (Weight of item)

0.64 kg

ZEFP (Peripheral effective cutting edge count)
