R166.0L-16MM02-200 1020

R166.0L-16MM02-200 1020 R166.0L-16MM02-200 1020

R166.0L-16MM02-200 1020

SV - Sandvik-Coromant
Артикул: 5742223
В наличии
0 ₽
В корзину
Описание
Характеристики
AN (Clearance angle major)
0 Degree
CBMD (Chip breaker manufacturers designation)
A
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
PVD TiN
D1 (Fixing hole diameter)
4.4 mm
Delivery state
LA - Soon discontinued
Delivery state valid from
12/1/2023
DIN
SV-TB16T3BI
EPSR (Insert included angle)
60 Degree
GRDMFG (Grade manufacturers designation)
1020
GRDPRIO (Standard designation of the grade main application)
HC

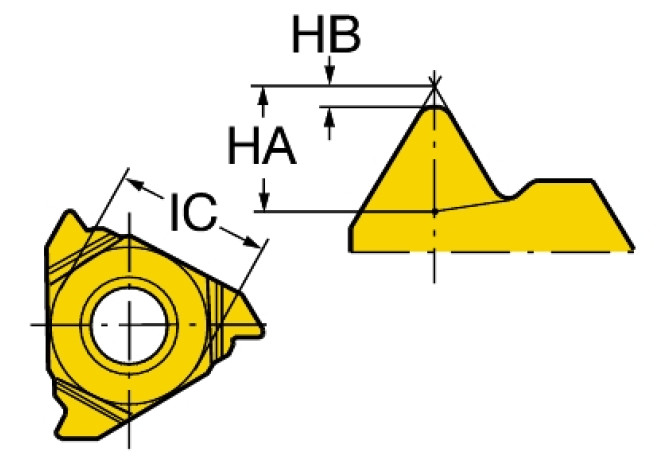

IC (Inscribed circle diameter)
9.525 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
R - Right
Interface codes
J6 / J61
ISO
SV$$TB16T3$$3$BBI$$
LOC-03 ISO
SV$$TB16T3$$3$BBI$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SV-TB16T3BI
Materials
P,M,K,N,S,H
NOF (Flute count)
2
NT (Tooth count)
2
PAL (Profile angle left hand)
30 Degree
PAR (Profile angle right hand)
30 Degree
PDX (Profile distance X)
2.85 mm
PDY (Profile distance Y)
1.82 mm
PFS (Profile form)
8
S (Insert thickness)
3.969 mm
S1 (Insert thickness total)
3.969 mm
TCE (Tipped cutting edge code)
S
THFT (Thread form type)
M60
TPN (Thread pitch minimum)
2 mm
TPT (Thread profile type)
V - Full profile
TTP (Thread type)
I - Internal thread
Working process
EGI - Threading, internal
WT (Weight of item)
0.004 kg
