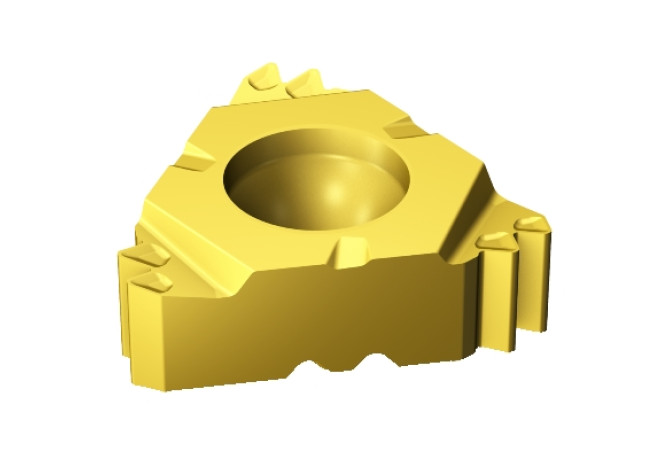

Главная Инструменты 202-10 - Threading insert with two cutting edges 266RG-22WH02A110E 1020

266RG-22WH02A110E 1020

Артикул: 5758107

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

0 Degree

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

PVD TiN

D1 (Fixing hole diameter)

5.7 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

SV-TC2205AE

EPSR (Insert included angle)

60 Degree

GRDMFG (Grade manufacturers designation)

1020

GRDPRIO (Standard designation of the grade main application)

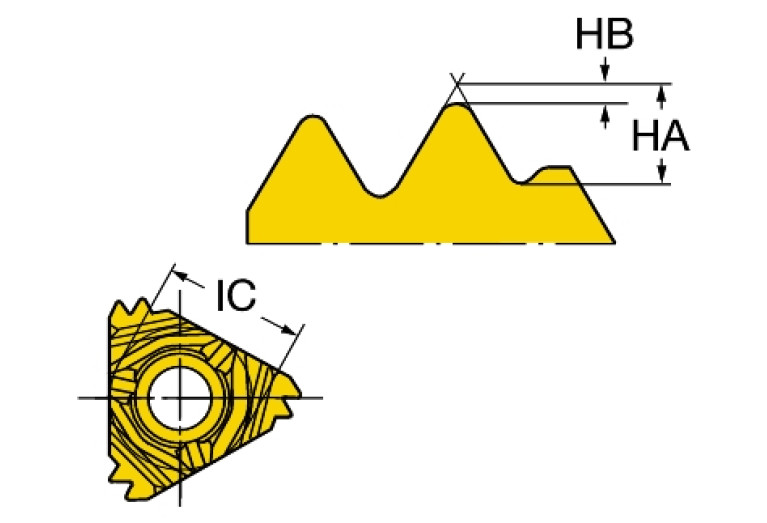

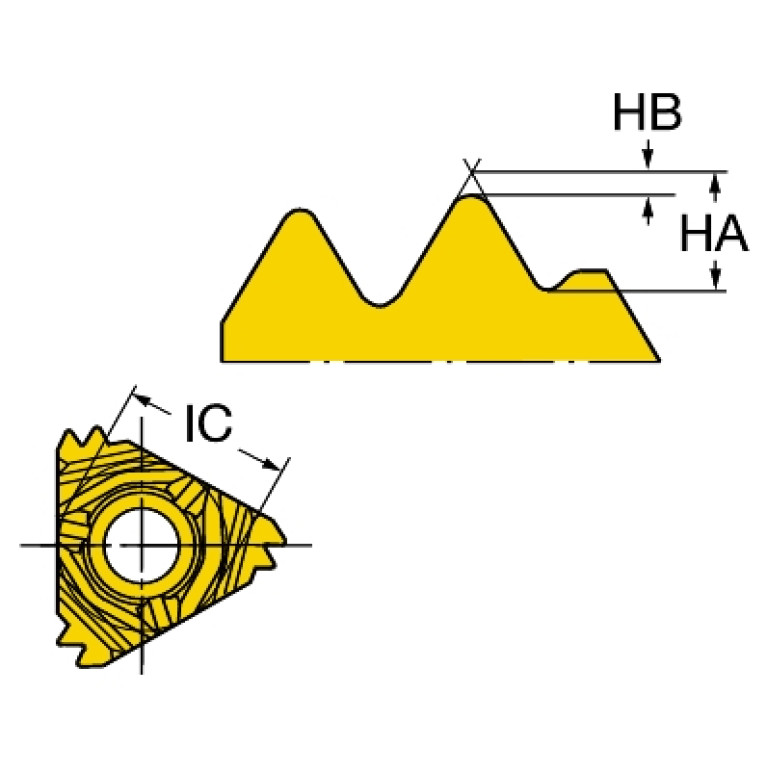

IC (Inscribed circle diameter)

12.7 mm

IFS (Insert mounting style code)

0 - Various

IH (Insert hand)

R - Right

Interface codes

J6 / J61

ISO

SV$$TC2205$$8$BAE$$

LOC-03 ISO

SV$$TC2205$$8$BAE$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SV-TC2205AE

Materials

P,M,K,N,S

NOF (Flute count)

NT (Tooth count)

PAL (Profile angle left hand)

27.5 Degree

PAR (Profile angle right hand)

27.5 Degree

PDX (Profile distance X)

3.4 mm

PDY (Profile distance Y)

1.87 mm

PFS (Profile form)

S (Insert thickness)

5.563 mm

S1 (Insert thickness total)

5.563 mm

TCE (Tipped cutting edge code)

THFT (Thread form type)

WH55

TPIN (Threads per inch minimum)

TPT (Thread profile type)

V - Full profile

TTP (Thread type)

A - External thread

Working process

EGA - Threading, external

WT (Weight of item)

0.012 kg
