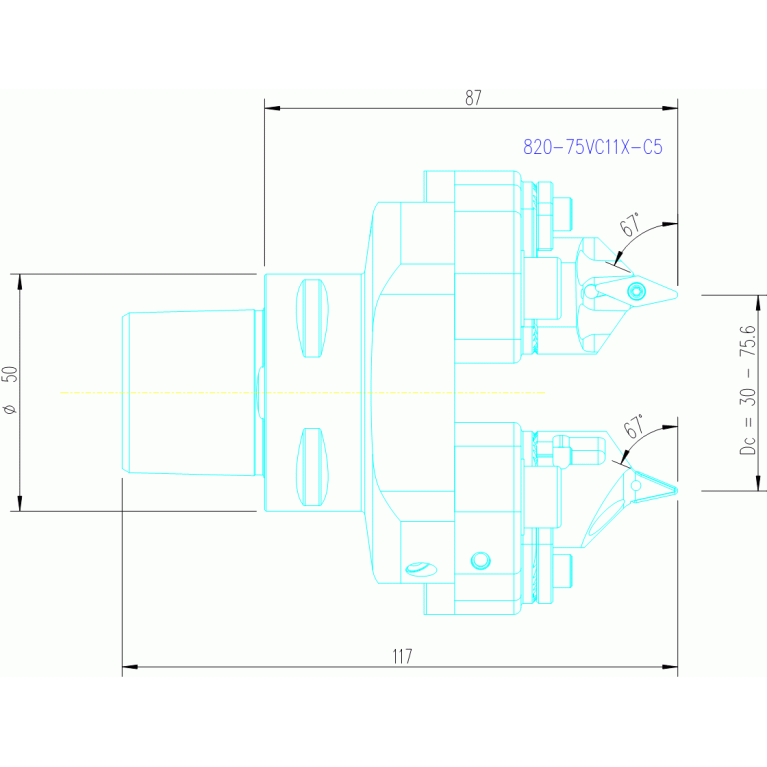

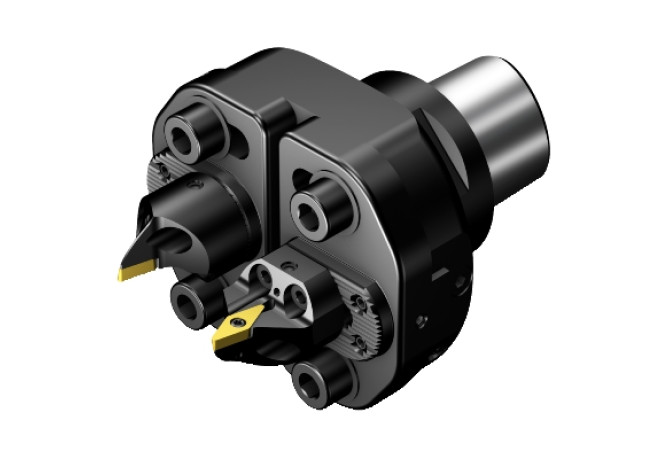

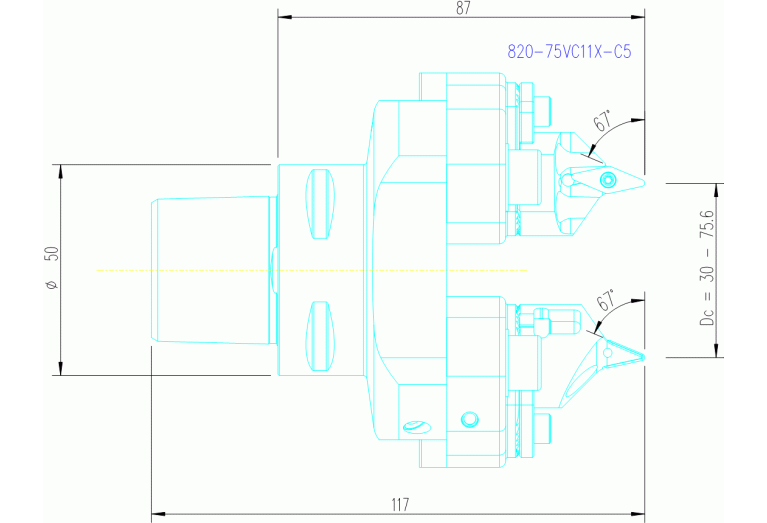

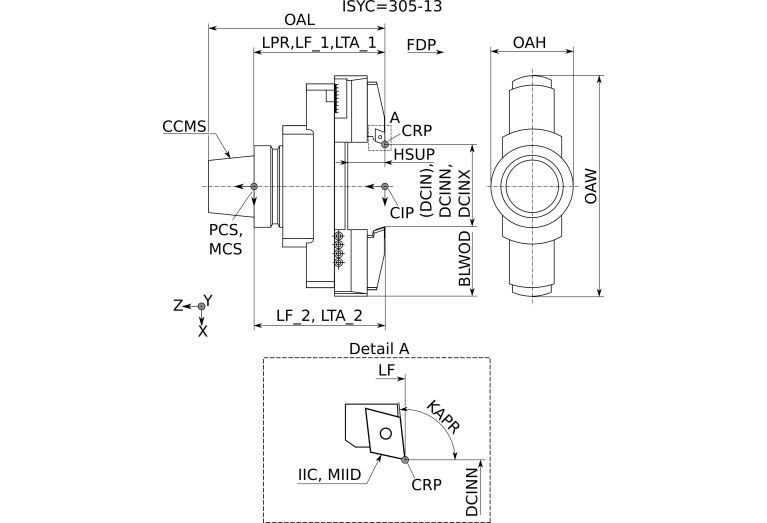

Главная Инструменты 305-13 - Assembled multi-point bridge tool for external operations 820-75VC11X-C5

820-75VC11X-C5

Артикул: 7134415

В наличии

0 ₽

В корзину

Описание

Характеристики

ADJIN (Adjustment increment axial)

0.1 mm

ADJRGA (Adjustment range axial)

22.8 mm

BMC (Body material code)

S - Solid steel

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

DCINN (Cutting diameter internal minimum)

30 mm

DCINX (Cutting diameter internal maximum)

75.6 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

CCS05000195

DIN CSW1

VB1103993N

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A (Indicator for ISO cutting plate Pos.A)

ISO

CCS01C0500$$$$

ISO CSW1

ISO$VB1103003******

KAPR (Tool cutting edge angle)

67 Degree

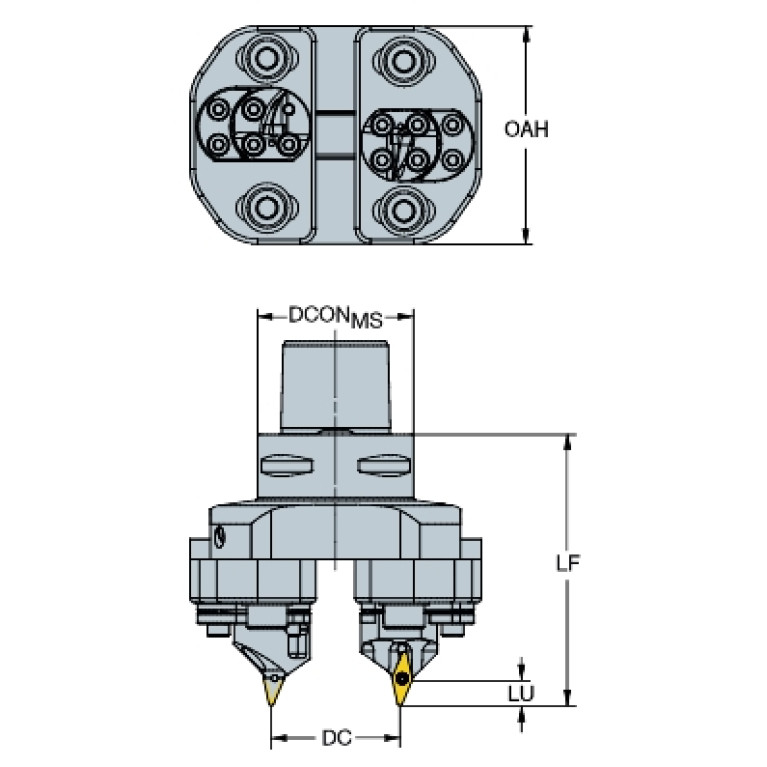

LF (Functional length)

87 mm

LOC-01 ISO

ISO$VB1103003******

LOC-01-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 01)

LOC-01-DIN

VB1103993N

LOC-02 ISO

ISO$VC1103003******

LOC-02-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 02)

LOC-02-DIN

VC1103993N

LOC-03 ISO

CCS01C0500$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0500

LOC-03 (DCONMS Diameter)

50 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS05000195

LPR (Protruding length)

87 mm

MIID (Master insert identification)

VBMT110304

OAL (Overall length)

117 mm

RPMX (Rotational speed maximum)

3000 1/min

Working process

BAB - Open by boring

WT (Weight of item)

2.655 kg

ZEFP (Peripheral effective cutting edge count)
