Главная Инструменты 311-01 - Solid cylindrical reamer 835.B-0503-A1-PF 1024

835.B-0503-A1-PF 1024

Артикул: 6266893

В наличии

0 ₽

В корзину

Описание

Характеристики

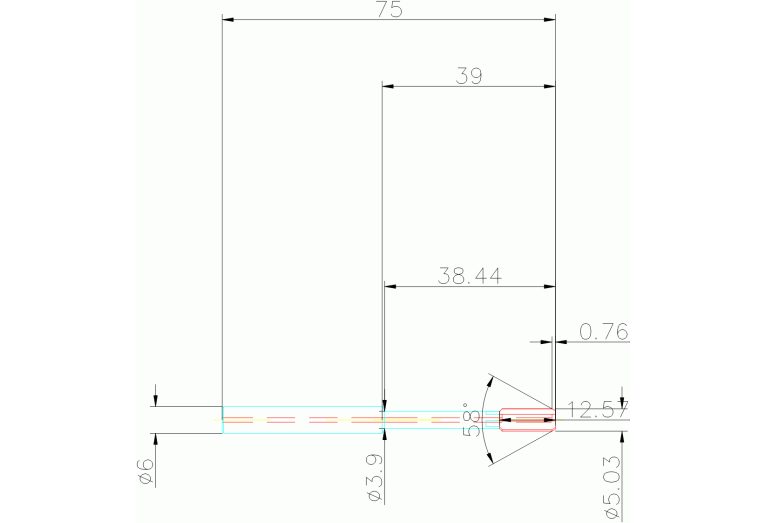

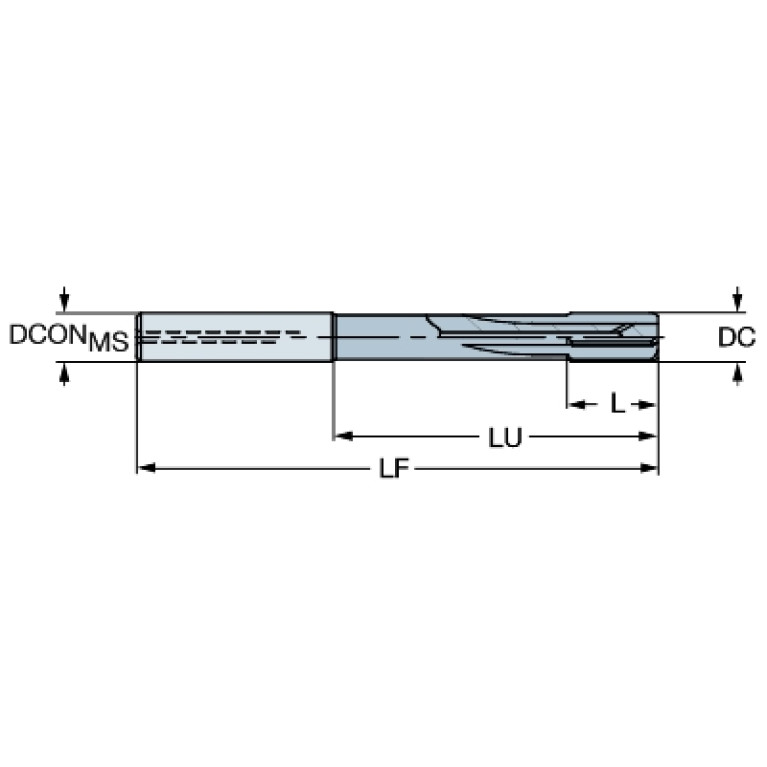

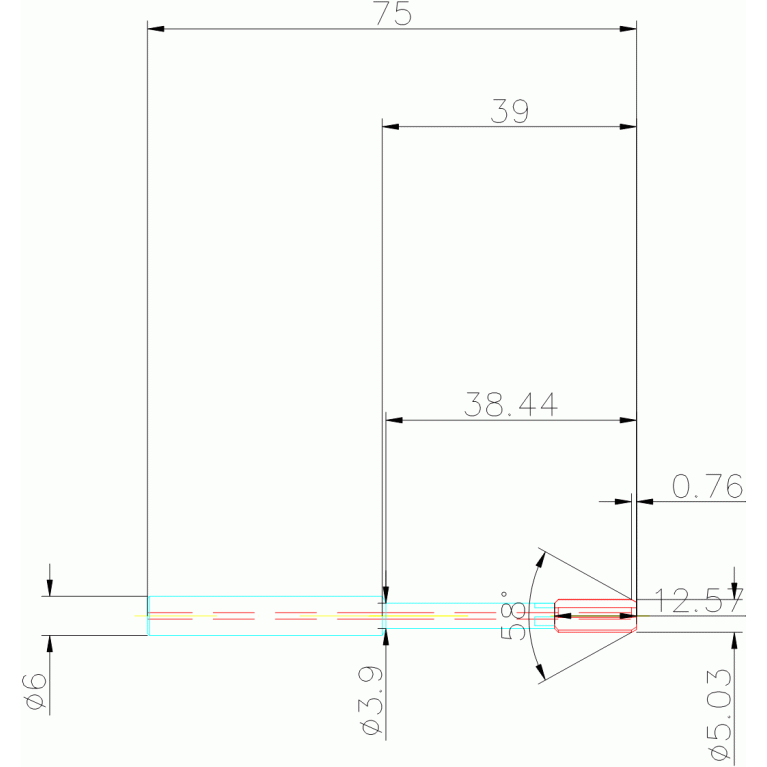

APMX (Depth of cut maximum)

12 mm

BMC (Body material code)

H - Solid carbide

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

COATN (Coating)

PVD TiAlN

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

DC (Cutting diameter minimum)

5.03 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

ZYL00600115

DN (Neck diameter)

3.9 mm

FHA (Flute helix angle)

0 Degree

FHH (Flute helix hand)

N - Hand of helix neutral

GEP (Guide element property)

0 - Without guide elements

GRDMFG (Grade manufacturers designation)

1024

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL01F6000h$06

LF (Functional length)

74.24 mm

LOC-03 ISO

ZYL01F6000h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0060

LOC-03 (DCONMS Diameter)

6 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600115

LS (Shank length)

36 mm

LU (Usable length)

39 mm

NOF (Flute count)

OAL (Overall length)

75 mm

PLGL (Plug length)

0.76 mm

RPMX (Rotational speed maximum)

14049 1/min

SRR (Stock removal recommended)

0.3 mm

TCDCONMS (ISO-tolerance class shank diameter)

TCDH (ISO tolerance class for drilling result)

Working process

REI - Cylindrical reaming

WT (Weight of item)

0.033 kg
