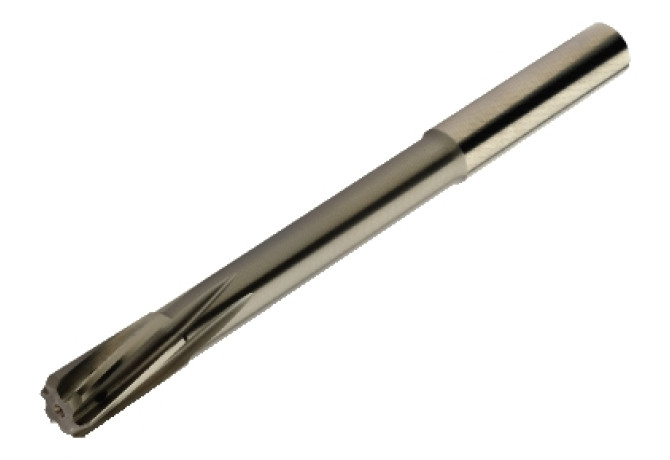

Главная Инструменты 311-01 - Solid cylindrical reamer 435.T-1002-A1-XF H10F

435.T-1002-A1-XF H10F

Артикул: 6266859

В наличии

0 ₽

В корзину

Описание

Характеристики

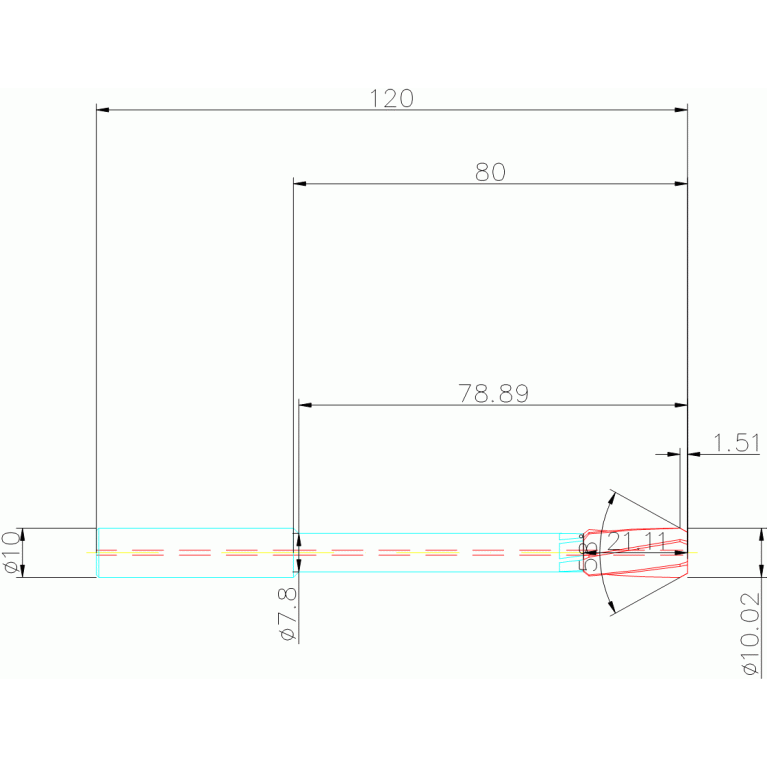

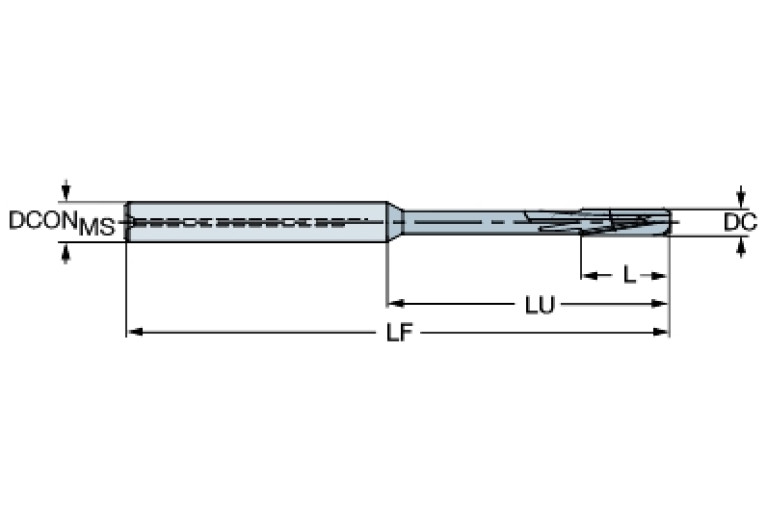

APMX (Depth of cut maximum)

20 mm

BMC (Body material code)

H - Solid carbide

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

2 - With Coolant exit, radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

2 - With Coolant exit, radial

DC (Cutting diameter minimum)

10.02 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

ZYL01000115

DN (Neck diameter)

7.8 mm

FHA (Flute helix angle)

10 Degree

FHH (Flute helix hand)

L - Hand of helix left

GEP (Guide element property)

0 - Without guide elements

GRDMFG (Grade manufacturers designation)

H10F

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL01G1000h$06

LF (Functional length)

118.49 mm

LOC-03 ISO

ZYL01G1000h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0100

LOC-03 (DCONMS Diameter)

10 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01000115

LS (Shank length)

40 mm

LU (Usable length)

80 mm

Materials

P,K,N

NOF (Flute count)

OAL (Overall length)

120 mm

PLGL (Plug length)

1.51 mm

RPMX (Rotational speed maximum)

3050 1/min

SRR (Stock removal recommended)

0.3 mm

TCDCONMS (ISO-tolerance class shank diameter)

TCDH (ISO tolerance class for drilling result)

Working process

REI - Cylindrical reaming

WT (Weight of item)

0.128 kg
