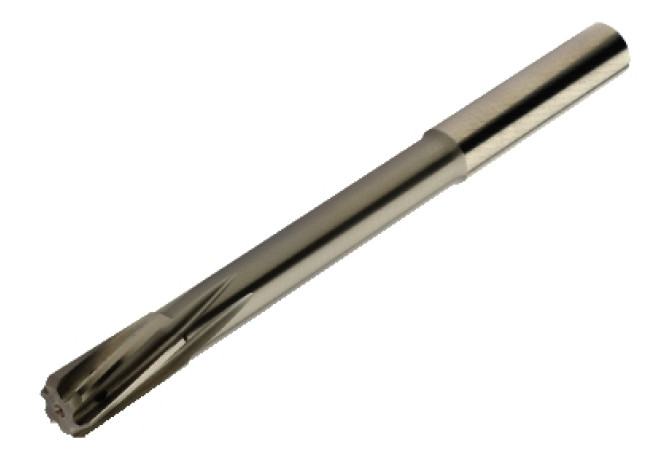

435.T-1000-A1-XF H10F
435.T-1000-A1-XF H10F
Артикул:
6266857
В наличии
0 ₽
Характеристики
APMX (Depth of cut maximum)
20 mm
BMC (Body material code)
H - Solid carbide
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
2 - With Coolant exit, radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
2 - With Coolant exit, radial
DC (Cutting diameter minimum)
10 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
ZYL01000115
DN (Neck diameter)
7.8 mm
FHA (Flute helix angle)
10 Degree
FHH (Flute helix hand)
L - Hand of helix left
GEP (Guide element property)
0 - Without guide elements
GRDMFG (Grade manufacturers designation)
H10F
GRDPRIO (Standard designation of the grade main application)
HF
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL01G1000h$06

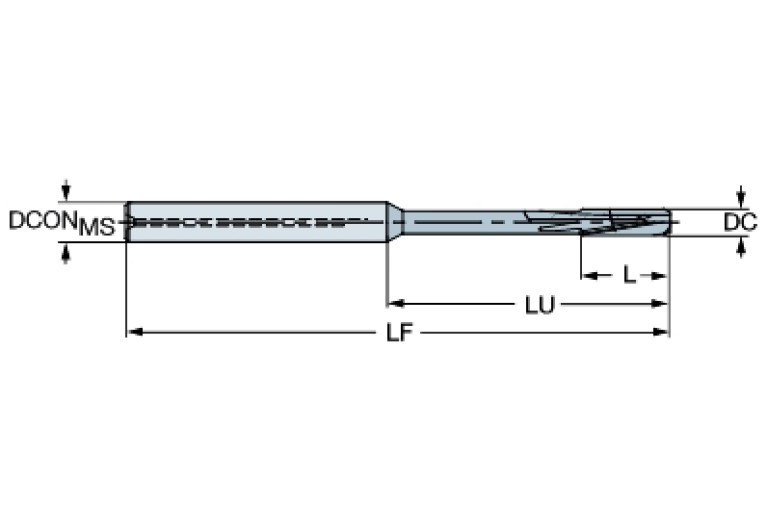

LF (Functional length)
118.5 mm
LS (Shank length)
40 mm
LU (Usable length)
80 mm
Materials
P,K,N
NOF (Flute count)
6

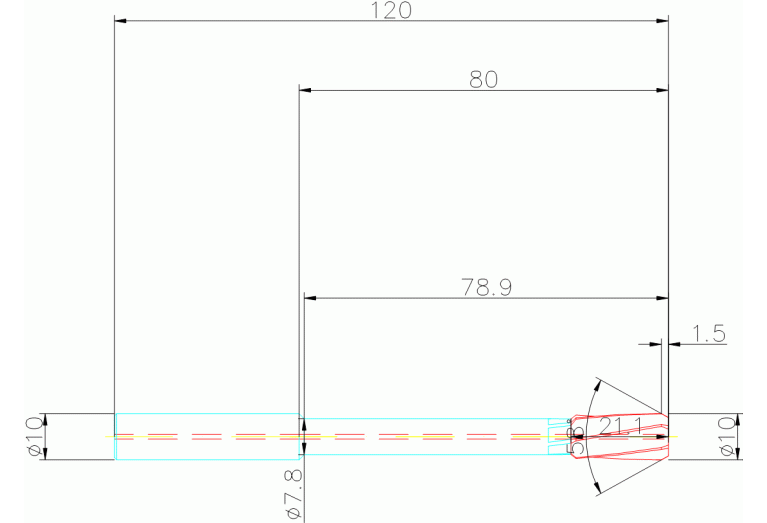

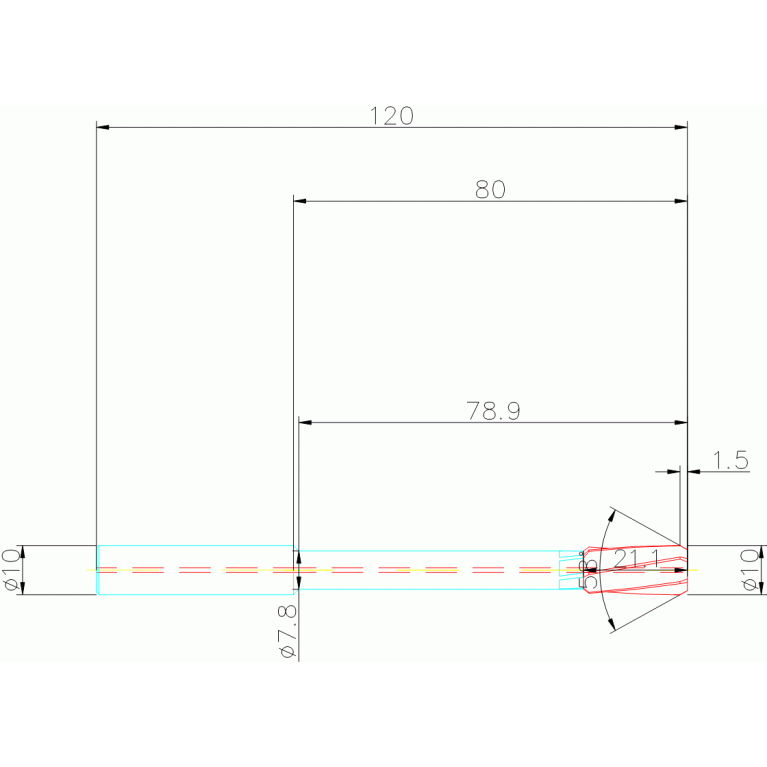

OAL (Overall length)
120 mm
PLGL (Plug length)
1.5 mm
RPMX (Rotational speed maximum)
3056 1/min
SRR (Stock removal recommended)
0.3 mm
TCDCONMS (ISO-tolerance class shank diameter)
h6
TCDH (ISO tolerance class for drilling result)
H7
Working process
REI - Cylindrical reaming
WT (Weight of item)
0.127 kg
