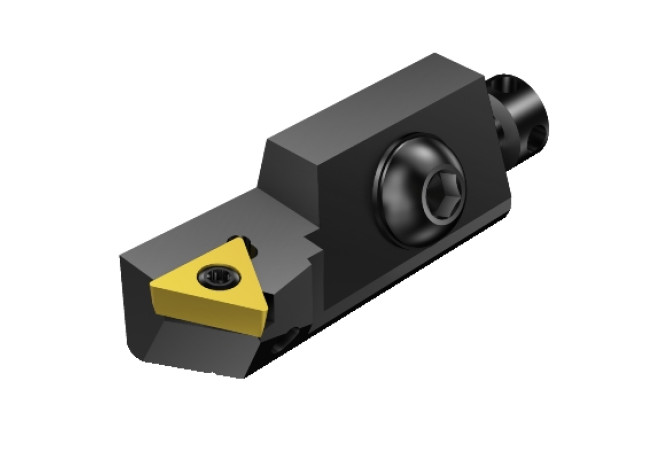

Главная Инструменты 314-01 - ISO-cartridge, type A STWCL 10CA-11-B1

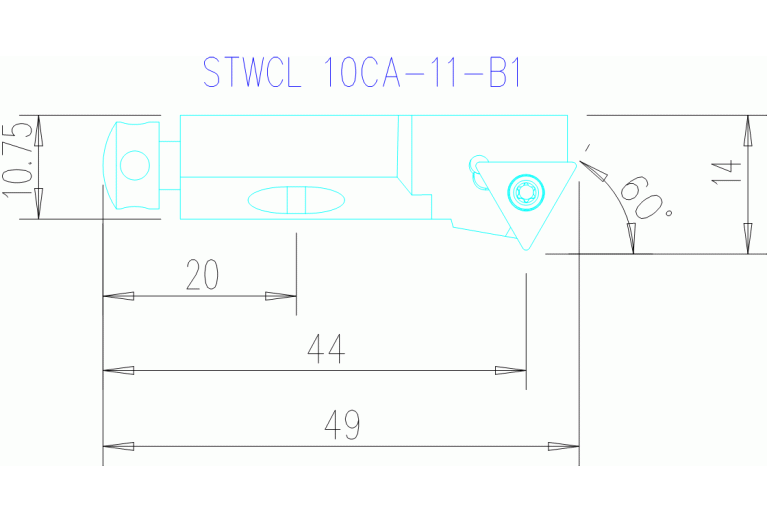

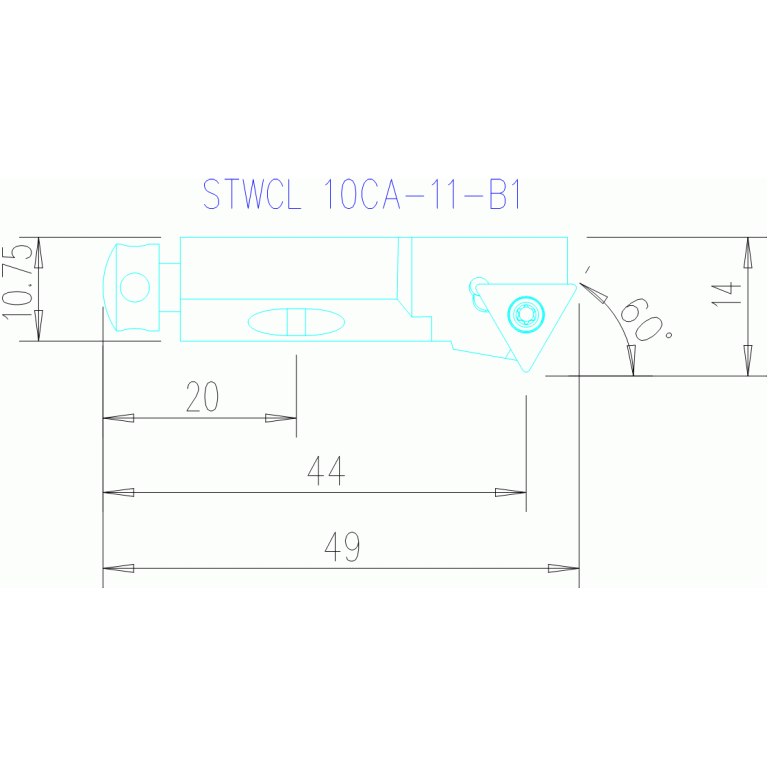

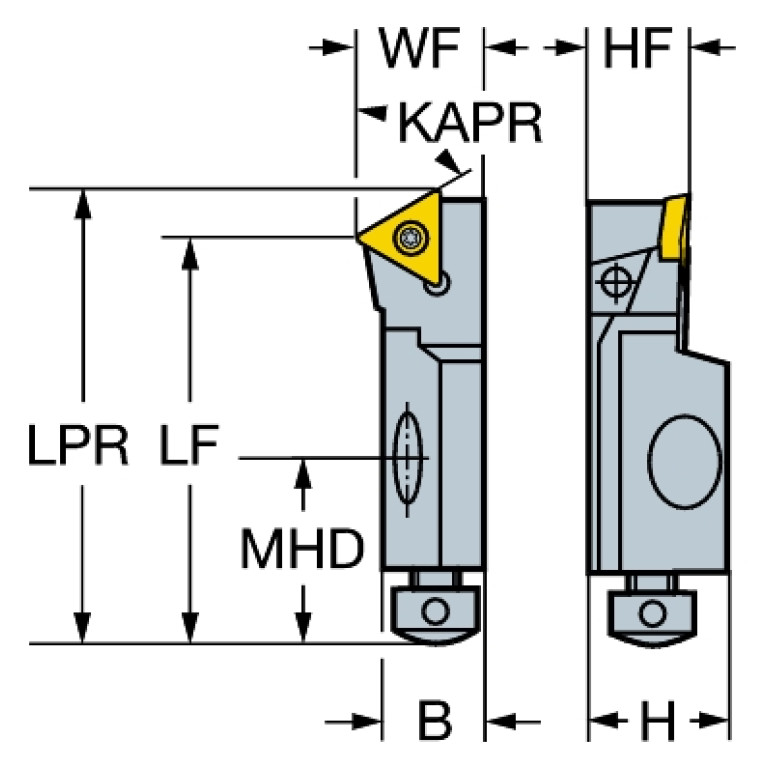

STWCL 10CA-11-B1

Артикул: 5751604

В наличии

0 ₽

В корзину

Описание

Характеристики

A2A (Clearance angle major Pos. A)

7 Degree

ASP (Adjusting screw protrusion)

8 mm

B3A (Inscribed circle diameter Pos. A)

6.35 mm

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

3.175 mm

CEATC (Tool cutting edge angle type code)

E - Front lead angle

D1A (Corner radius Pos. A)

0.397 mm

DAH (Diameter access hole)

7 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

KKH010L0185

DIN CSW1

TC1103993N

EPSR (Insert included angle)

60 Degree

GAMO (Rake angle orthogonal)

0 Degree

HAND (Cutting direction)

L - Left

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A (Indicator for ISO cutting plate Pos.A)

ISO

KKH01C010L$$$$

ISO CSW1

ISO$TC1103003******

KAPR (Tool cutting edge angle)

60 Degree

LAMS (Inclination angle)

-4 Degree

LF (Functional length)

44 mm

LOC-01 ISO

ISO$TC1103003******

LOC-01-Connection-codes

J41 / J441 (Unknown 01)

LOC-01-DIN

TC1103993N

LOC-03 ISO

KKH01C010L$$$$

LOC-03 (B Shank width)

11 mm

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

KKH Cartridge connection

LOC-03 (CCUMS Connection code unit base)

8 non-dimensional size

LOC-03 (CZCMS Connection size code)

010L

LOC-03 (H Shank height)

15 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

KKH010L0185

MHA (Mounting hole angle)

20 Degree

MHD (Mounting hole distance)

20 mm

MHH (Mounting hole height)

5 mm

MIID (Master insert identification)

TCMT110304

OAL (Overall length)

49 mm

WF (Functional width)

14 mm

Working process

No working processes available

WT (Weight of item)

0.039 kg
