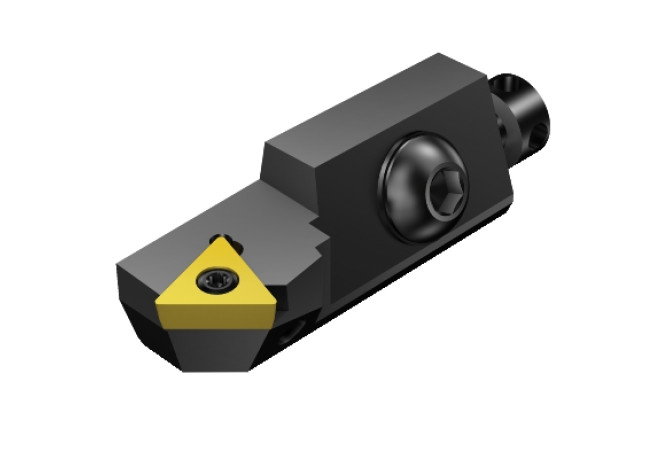

STSCL 08CA-09

Артикул: 5751572

В наличии

0 ₽

В корзину

Описание

Характеристики

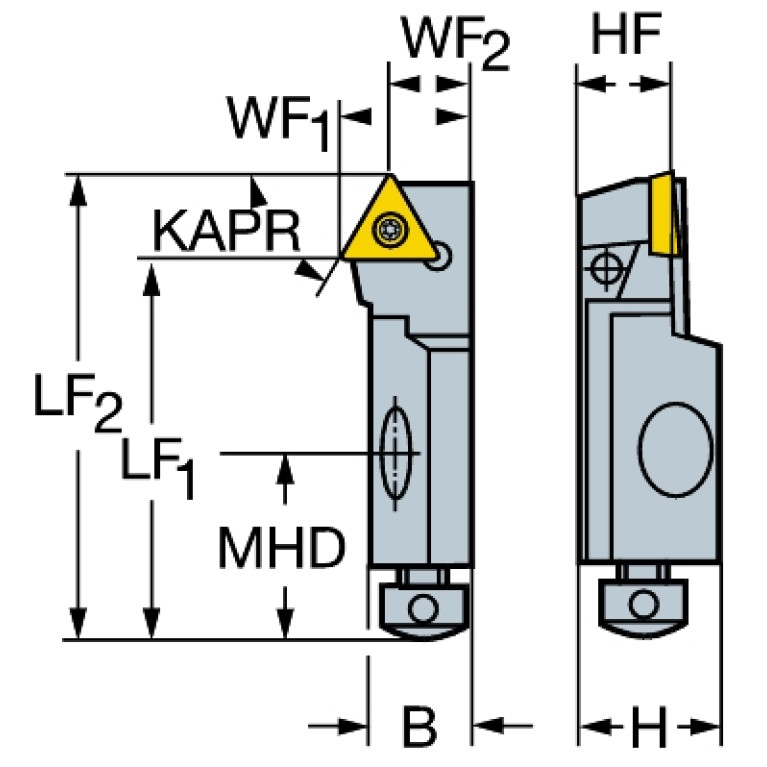

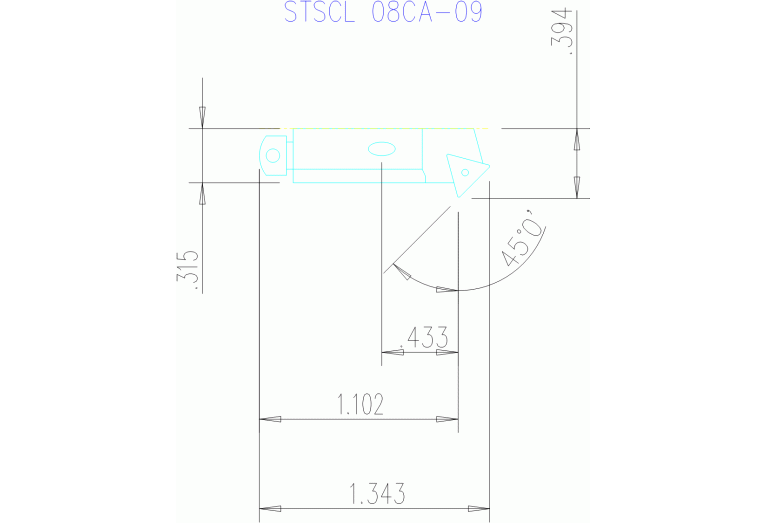

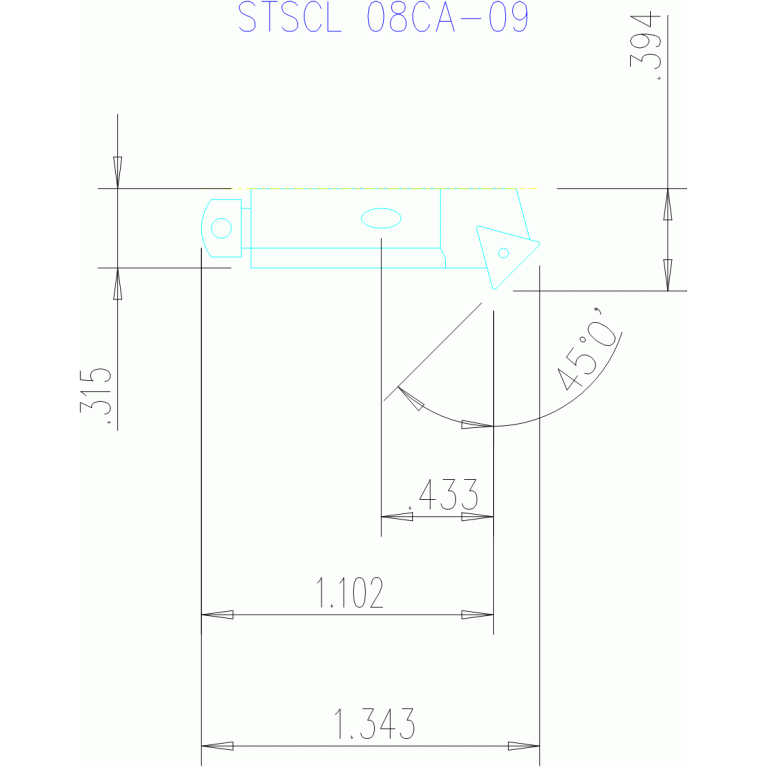

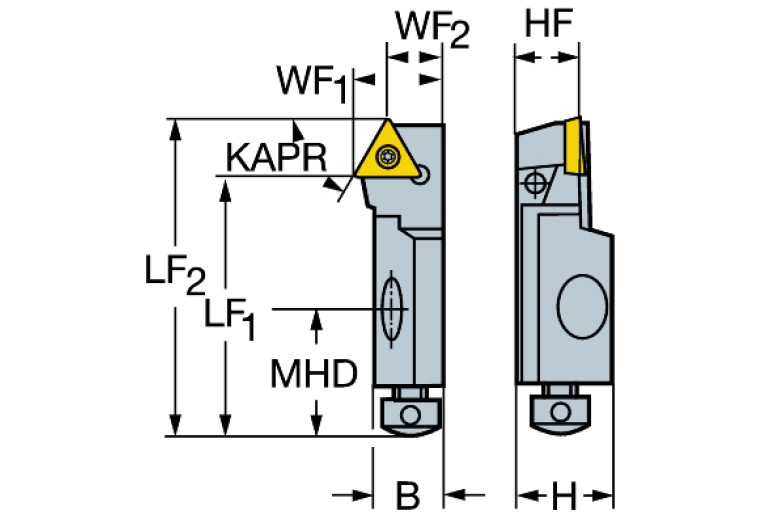

A2A (Clearance angle major Pos. A)

7 Degree

ASP (Adjusting screw protrusion)

6 mm

B3A (Inscribed circle diameter Pos. A)

5.556 mm

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

2.381 mm

CEATC (Tool cutting edge angle type code)

B - Side and front lead angle

D1A (Corner radius Pos. A)

0.397 mm

DAH (Diameter access hole)

4.5 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

KKH008L0185

DIN CSW1

TC0902993N

EPSR (Insert included angle)

60 Degree

GAMO (Rake angle orthogonal)

-6 Degree

HAND (Cutting direction)

L - Left

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A (Indicator for ISO cutting plate Pos.A)

ISO

KKH01C008L$$$$

ISO CSW1

ISO$TC0902003******

KAPR (Tool cutting edge angle)

45 Degree

LAMS (Inclination angle)

0 Degree

LF (Functional length)

28 mm

LOC-01 ISO

ISO$TC0902003******

LOC-01-Connection-codes

J41 / J441 (Unknown 01)

LOC-01-DIN

TC0902993N

LOC-03 ISO

KKH01C008L$$$$

LOC-03 (B Shank width)

8 mm

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

KKH Cartridge connection

LOC-03 (CCUMS Connection code unit base)

8 non-dimensional size

LOC-03 (CZCMS Connection size code)

008L

LOC-03 (H Shank height)

10 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

KKH008L0185

MHA (Mounting hole angle)

20 Degree

MHD (Mounting hole distance)

17 mm

MHH (Mounting hole height)

4.5 mm

MIID (Master insert identification)

TCMT090204

OAL (Overall length)

34.1 mm

WF (Functional width)

10 mm

Working process

No working processes available

WT (Weight of item)

0.035 kg
