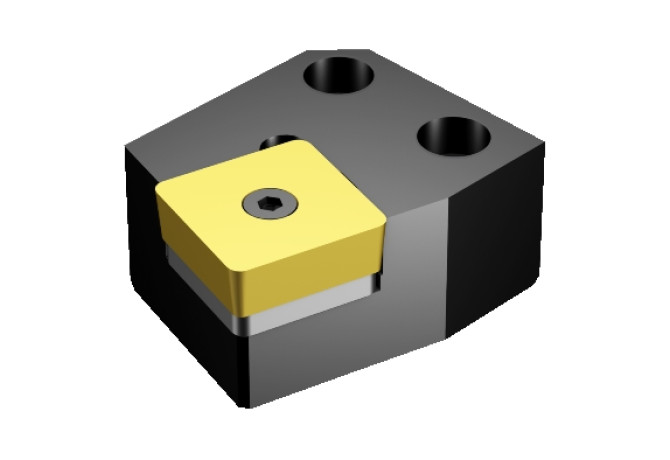

Главная Инструменты 314-01 - ISO-cartridge, type A SSRCR 40CX-38

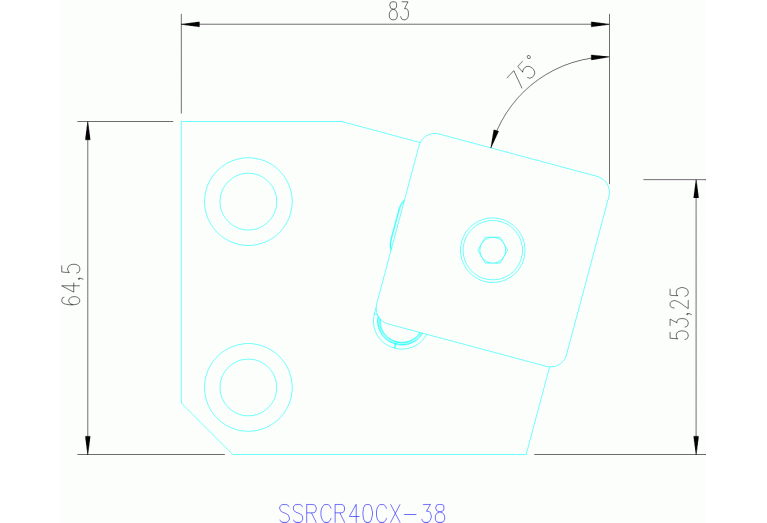

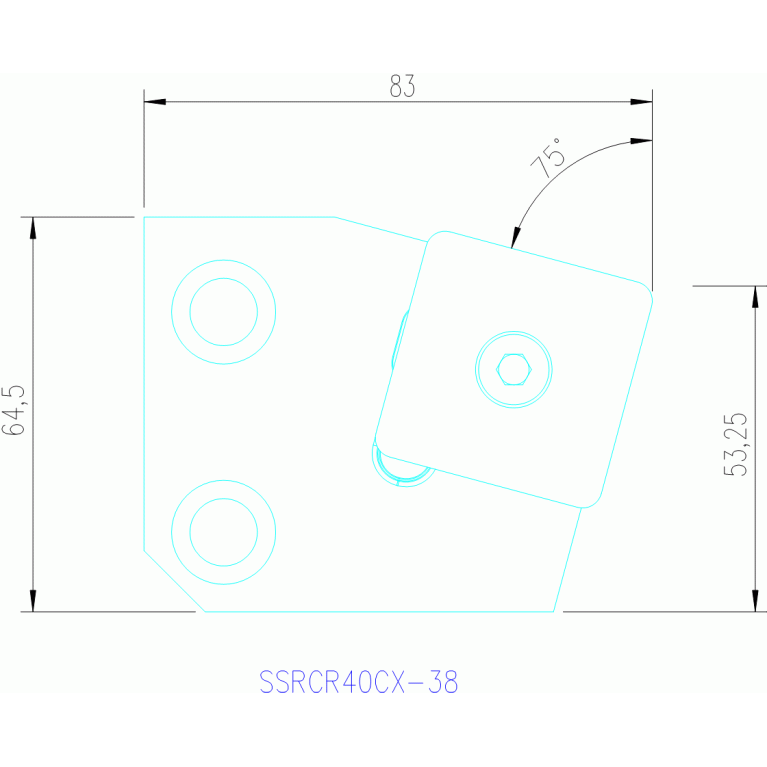

SSRCR 40CX-38

Артикул: 6273282

В наличии

0 ₽

В корзину

Описание

Характеристики

A2A (Clearance angle major Pos. A)

7 Degree

B3A (Inscribed circle diameter Pos. A)

38.1 mm

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

9.525 mm

CEATC (Tool cutting edge angle type code)

S - Side lead angle

D1A (Corner radius Pos. A)

3.2 mm

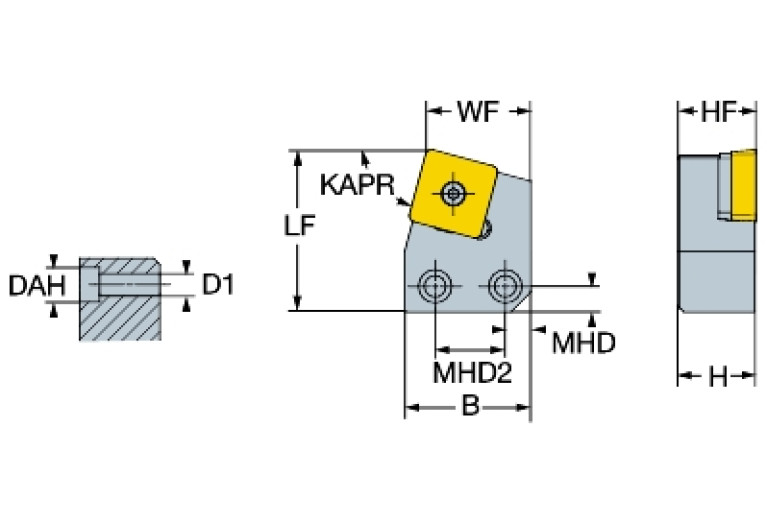

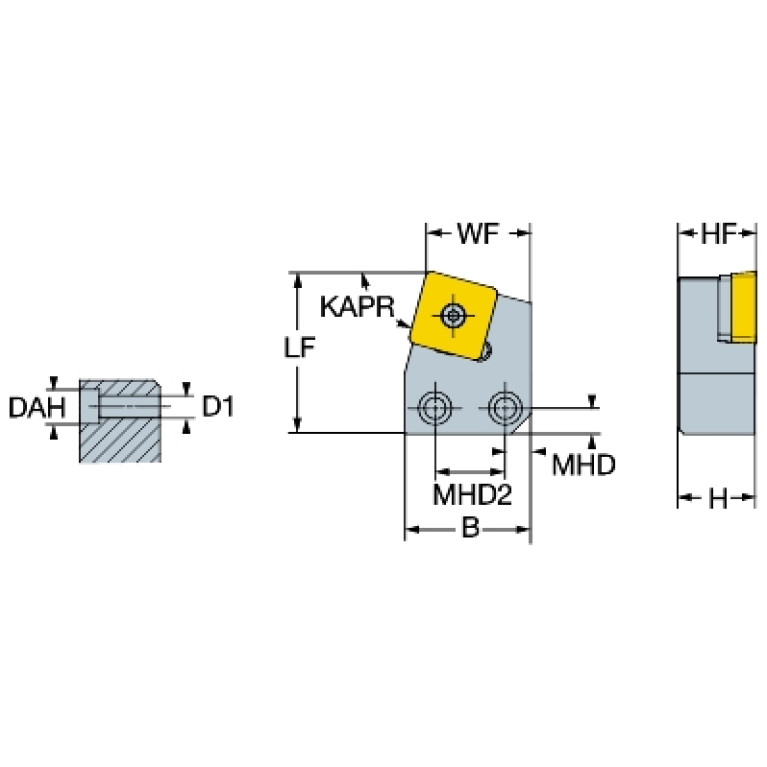

DAH (Diameter access hole)

17 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

KKC40650185

DIN CSW1

SC3809993N

EPSR (Insert included angle)

90 Degree

GAMO (Rake angle orthogonal)

0 Degree

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A (Indicator for ISO cutting plate Pos.A)

ISO

KKC01C4065$$$$

ISO CSW1

ISO$SC3809003******

KAPR (Tool cutting edge angle)

75 Degree

LAMS (Inclination angle)

0 Degree

LF (Functional length)

83 mm

LOC-01 ISO

ISO$SC3809003******

LOC-01-Connection-codes

J41 / J441 (Unknown 01)

LOC-01-DIN

SC3809993N

LOC-03 ISO

KKC01C4065$$$$

LOC-03 (B Shank width)

64.5 mm

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

KKC

LOC-03 (CCUMS Connection code unit base)

8 non-dimensional size

LOC-03 (CZCMS Connection size code)

4065

LOC-03 (H Shank height)

40 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

KKC40650185

MHD (Mounting hole distance)

13 mm

MIID (Master insert identification)

SCMT380932

OAL (Overall length)

83 mm

WF (Functional width)

53.25 mm

Working process

No working processes available

WT (Weight of item)

1.349 kg
