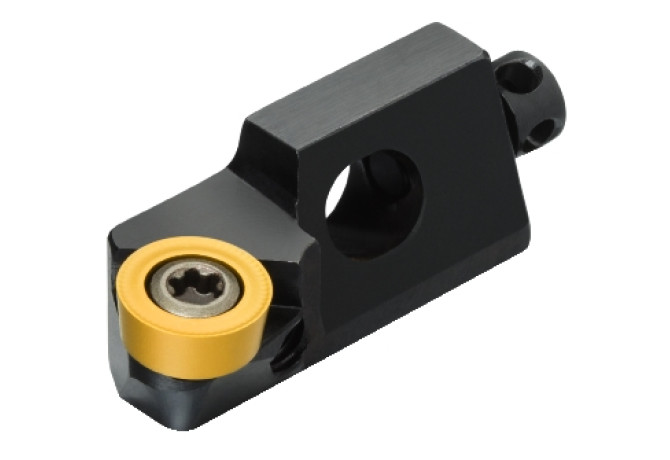

Главная Инструменты 314-01 - ISO-cartridge, type A SRSCL 06CA-06

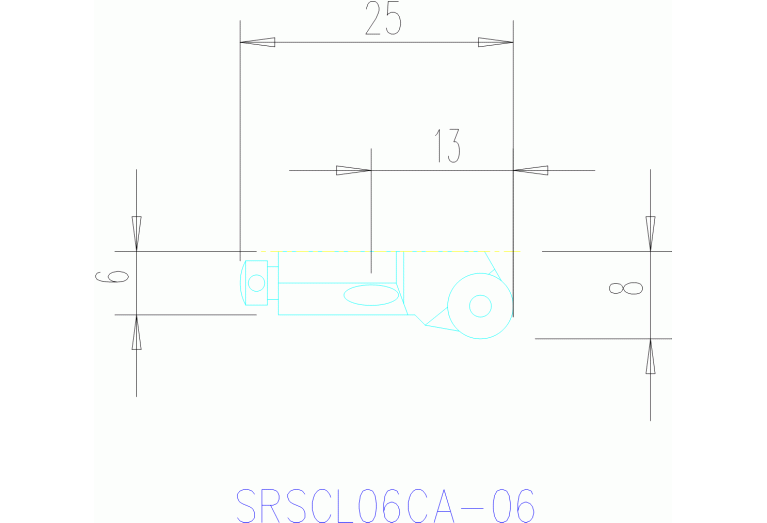

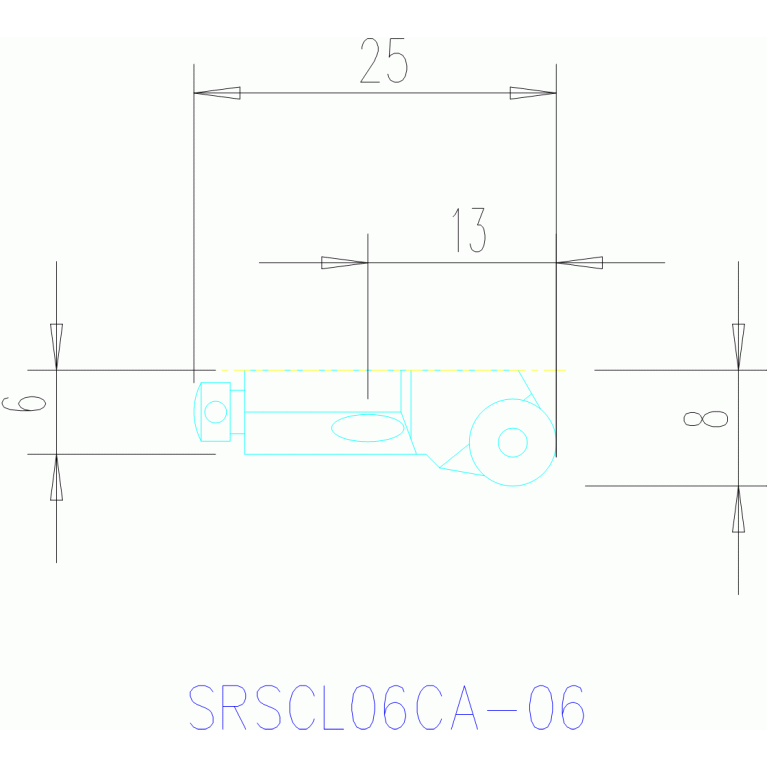

SRSCL 06CA-06

Артикул: 5751451

В наличии

0 ₽

В корзину

Описание

Характеристики

A2A (Clearance angle major Pos. A)

7 Degree

ASP (Adjusting screw protrusion)

4.5 mm

B3A (Inscribed circle diameter Pos. A)

6 mm

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

2.381 mm

CEATC (Tool cutting edge angle type code)

E - Front lead angle

D1A (Corner radius Pos. A)

3 mm

DAH (Diameter access hole)

4 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

KKH006R0185

DIN CSW1

RC0602M03N

GAMO (Rake angle orthogonal)

0 Degree

HAND (Cutting direction)

L - Left

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A (Indicator for ISO cutting plate Pos.A)

ISO

KKH01C006R$$$$

ISO CSW1

ISO$RC0602M03****M0

LAMS (Inclination angle)

-5 Degree

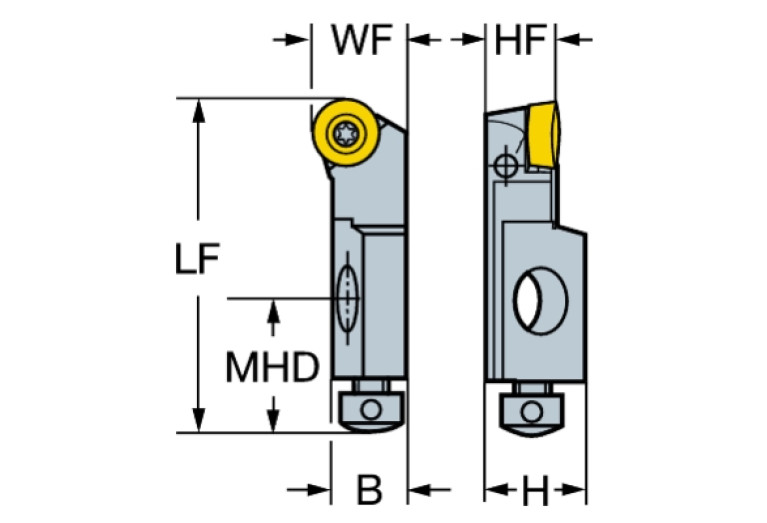

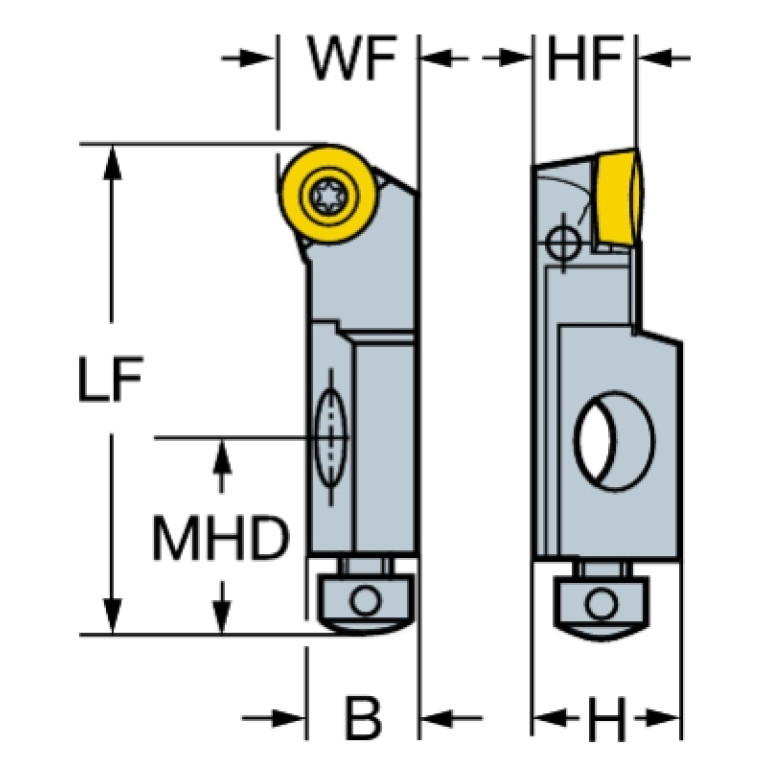

LF (Functional length)

25 mm

LOC-01 ISO

ISO$RC0602M03****M0

LOC-01-Connection-codes

J41 / J441 (Unknown 01)

LOC-01-DIN

RC0602M03N

LOC-03 ISO

KKH01C006R$$$$

LOC-03 (B Shank width)

6.1 mm

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

KKH Cartridge connection

LOC-03 (CCUMS Connection code unit base)

8 non-dimensional size

LOC-03 (CZCMS Connection size code)

006R

LOC-03 (H Shank height)

8.5 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

KKH006R0185

MHA (Mounting hole angle)

20 Degree

MHD (Mounting hole distance)

12 mm

MHH (Mounting hole height)

3.5 mm

MIID (Master insert identification)

RCMT0602M0

OAL (Overall length)

25 mm

WF (Functional width)

8 mm

Working process

No working processes available

WT (Weight of item)

0.02 kg
